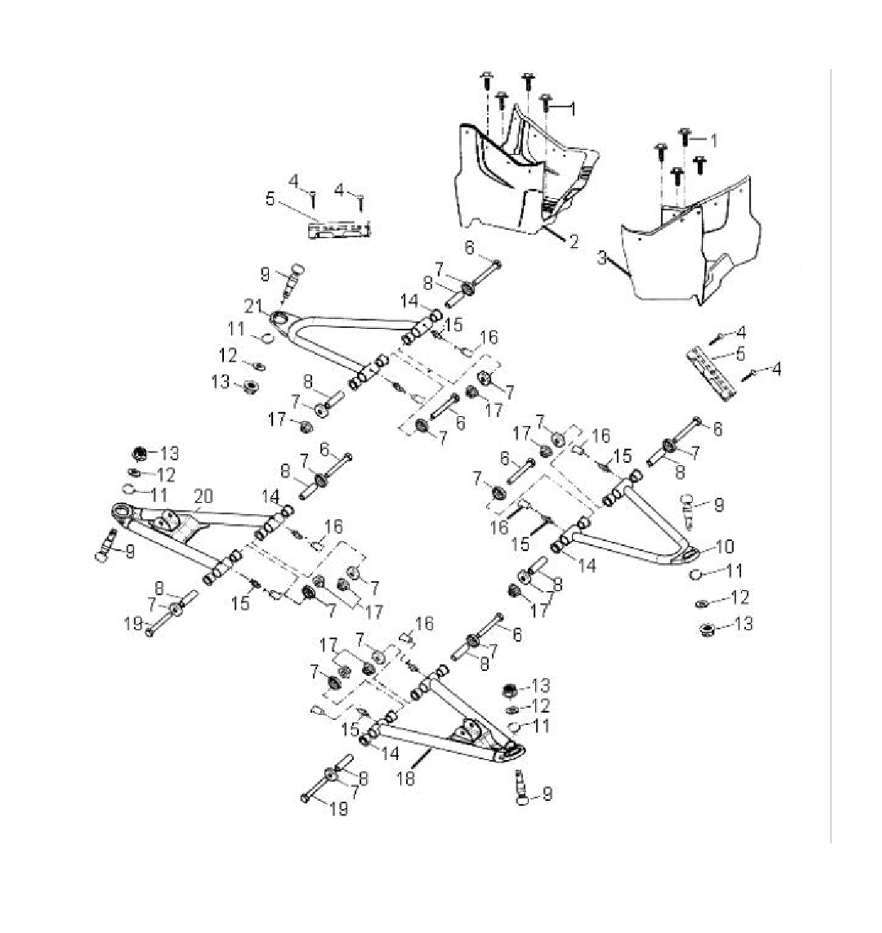

SUSPENSION - A-ARM W/FOOTREST для Polaris SAWTOOTH 200 (A07SB20AA) (RED) - 2007 года выпуска
-
№АртикулНазвание
-
10452215 BOLT-HEXBOLT-HEX
-
20453062 FOOTWELL-SUV, RIGHT HAND,BASICFOOTWELL-SUV, RIGHT HAND,BASIC
-
30453061 FOOTWELL-SUV, LEFT HAND,BASICFOOTWELL-SUV, LEFT HAND,BASIC
-
40451703 SCREW,TAPPINGSCREW,TAPPING
-
50453079 RETAINER-BRAKE LINE,FRONTRETAINER-BRAKE LINE,FRONT
-
60452626 BOLT-HEX,M10X75BOLT-HEX,M10X75
-
70451762 CAP-RUBBERCAP-RUBBER
-
80452625 SPACER-TUBESPACER-TUBE
-
97081190 BALL JOINTBALL JOINT
-
100453987-385 A-ARM,UPPER, LEFT HAND,SILVERA-ARM,UPPER, LEFT HAND,SILVER
-
110453784 CLIP, CIRCLIP, CIR
-
120450286 WASHERWASHER
-
130453794 NUTNUT
-
140453496 BUSHING-A-ARM,OUTLAWBUSHING-A-ARM,OUTLAW
-
150450320 VALVE,GREASEVALVE,GREASE
-
160450321 CAP,RUBBERCAP,RUBBER
-
170450249 NUT-FLANGENUT-FLANGE
-
180453989-385 A-ARM,LOWER, LEFT HAND,SILVERA-ARM,LOWER, LEFT HAND,SILVER
-
190451794 NUT-HEX,28MMNUT-HEX,28MM
-
200453990-385 A-ARM,LOWER, RIGHT HAND,SILVERA-ARM,LOWER, RIGHT HAND,SILVER
-
210453988-385 A-ARM,UPPER, RIGHT HAND,SILVERA-ARM,UPPER, RIGHT HAND,SILVER
