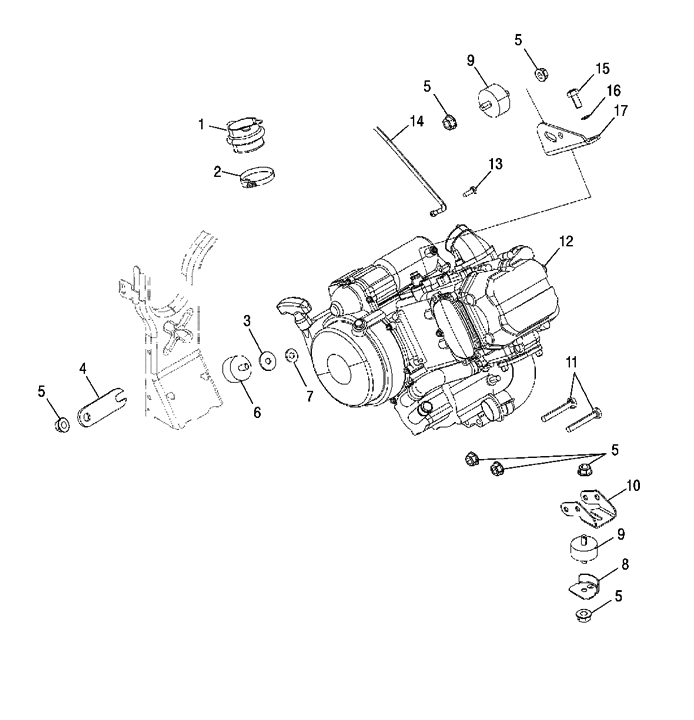

ENGINE - MOUNTING для Polaris SPORTSMAN 450 (A07MH46AZ) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
15412487 BOOT-CLUTCH,INTAKEBOOT-CLUTCH,INTAKE
-
27080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
37555815 WASHER, FLATWASHER, FLAT
-
45224658-067 STRAP,FRAME SUPPORT, BLACKSTRAP,FRAME SUPPORT, BLACK
-
57547108 NUTNUT
-
63110046 MOUNT,RUBBER,FRONTMOUNT,RUBBER,FRONT
-
77555797 WASHER,FLATWASHER,FLAT
-
85245043 BRKT-TORQUE STOP PLTDBRKT-TORQUE STOP PLTD
-
93110044 ISOLATOR-3/8-24M/M,60DUROISOLATOR-3/8-24M/M,60DURO
-
105249873 MOUNT-ENGINE, FRONTMOUNT-ENGINE, FRONT
-
117518415 BOLT-3/8-24X23/4,HEX FLANGE,65BOLT-3/8-24X23/4,HEX FLANGE,65
-
123089960 ENGINE-SB,EH460PLE011 (SEE NOTE)ENGINE-SB,EH460PLE011 (SEE NOTE)
-
133082038 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
144010895 CABLE-BLACK(FRAME/ENGINE)CABLE-BLACK(FRAME/ENGINE)
-
157512315 BOLTBOLT
-
167552901 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
175241453 MOUNT-ENGINE,TOP PLTDMOUNT-ENGINE,TOP PLTD
