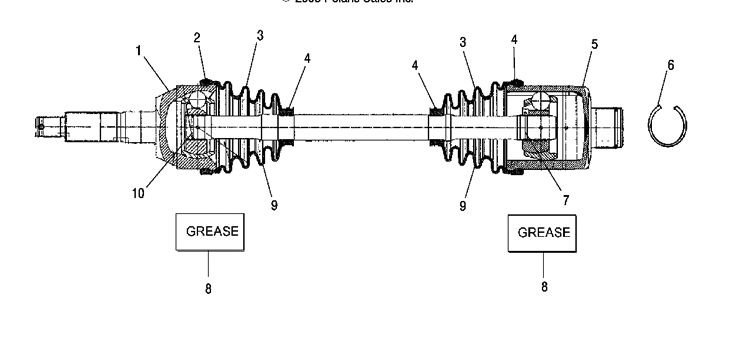

SHAFT - DRIVE - REAR для Polaris SPORTSMAN 450 (A07MH46AZ) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
-1332421 ASM-DRIVE SHAFT,SPTMN,REAR (INCLUDES 1-6)ASM-DRIVE SHAFT,SPTMN,REAR (INCLUDES 1-6)
-
11590415 CV-JOINT, REARCV-JOINT, REAR
-
21350044 CLAMP-LARGE,BTBCLAMP-LARGE,BTB
-
31332433 KIT-BOOT, REAR (WHEEL SIDE)KIT-BOOT, REAR (WHEEL SIDE)
-
41350043 CLAMP-SMALL,BTBCLAMP-SMALL,BTB
-
51590281 PLUNGING JOINT, REAR (INCLUDES 6,7)PLUNGING JOINT, REAR (INCLUDES 6,7)
-
61350042 SPRING-RINGSPRING-RING
-
77710505 RING,RETAININGRING,RETAINING
-
81350047 GREASE-50G BTBGREASE-50G BTB
-
92203108 KIT-BOOT, REAR (INCLUDES CLAMPS, GREASE)KIT-BOOT, REAR (INCLUDES CLAMPS, GREASE)
-
107710576 RING-RETAINING, SHAFTRING-RETAINING, SHAFT
