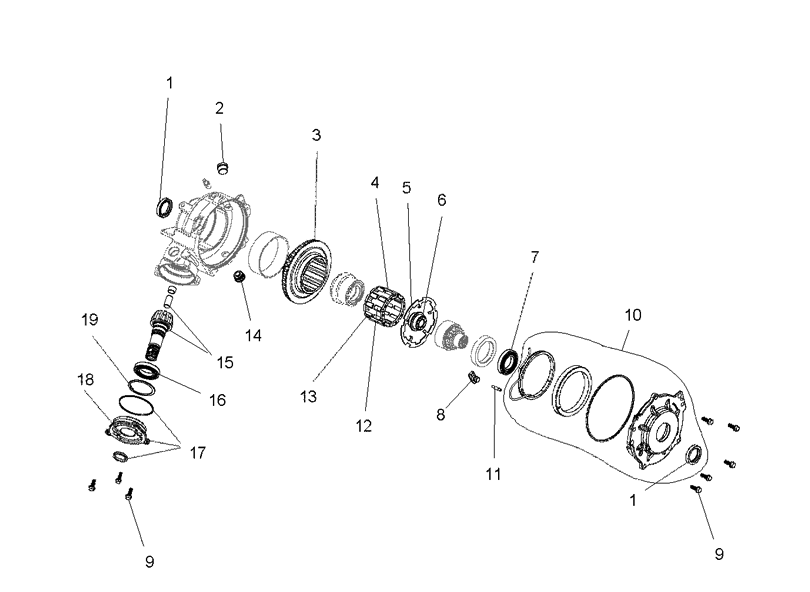

GEARCASE - FRONT (IF BUILT BEFORE 7/24/06) для Polaris SPORTSMAN 450 (A07MH46AZ) (INDY RED) - 2007 года выпуска`
-
№АртикулНазвание
-
-1332478 ASM-GEARCASE,AWD (INCLUDES ALL)ASM-GEARCASE,AWD (INCLUDES ALL)
-
13234406 KIT-REPAIR,SEAL (INCLUDES ALL SEALS, O-RINGS)KIT-REPAIR,SEAL (INCLUDES ALL SEALS, O-RINGS)
-
23234414 PLUG-OIL FILL 3/4-16 HOLLOWPLUG-OIL FILL 3/4-16 HOLLOW
-
33234409 CLUTCH-HSG/RING GEAR,42T 7.624CLUTCH-HSG/RING GEAR,42T 7.624
-
43234404 ASM-CLUTCH (INCLUDES 12,13)ASM-CLUTCH (INCLUDES 12,13)
-
53234407 PLATE-ARMATUREPLATE-ARMATURE
-
63234391 SPACER-HUBSPACER-HUB
-
73234390 BEARINGBEARING
-
83234389 ASM-PLATE,THRUST (INCLUDES SEAL)ASM-PLATE,THRUST (INCLUDES SEAL)
-
93234405 KIT-BOLT (INCLUDES ALL BOLTS, SCREWS)KIT-BOLT (INCLUDES ALL BOLTS, SCREWS)
-
103234402 ASM-COVER,OUTPUT (INCLUDES COVER, SEALS, COIL)ASM-COVER,OUTPUT (INCLUDES COVER, SEALS, COIL)
-
113234408 SET-SCREW,#10-14 W/NYLOKSET-SCREW,#10-14 W/NYLOK
-
123234393 KIT-ROLLER (20) (INCLUDES COMPLETE SET)KIT-ROLLER (20) (INCLUDES COMPLETE SET)
-
133234410 ASM-ROLL CAGE (INCLUDES ROLL CAGE)ASM-ROLL CAGE (INCLUDES ROLL CAGE)
-
143234412 ASM-PLUG,DRAIN,MAGNETICASM-PLUG,DRAIN,MAGNETIC
-
153234415 ASM-GEAR,PINION (INCLUDES GEAR, PIN)ASM-GEAR,PINION (INCLUDES GEAR, PIN)
-
163234417 BEARING-BALL,ROLLERBEARING-BALL,ROLLER
-
173234413 ASM-COVER PLATE,INPUT (INCLUDES COVER, BEARING SEAL)ASM-COVER PLATE,INPUT (INCLUDES COVER, BEARING SEAL)
-
183234413 ASM-COVER PLATE,INPUTASM-COVER PLATE,INPUT
-
193234416 RING-RETAINING,INTRNLRING-RETAINING,INTRNL
