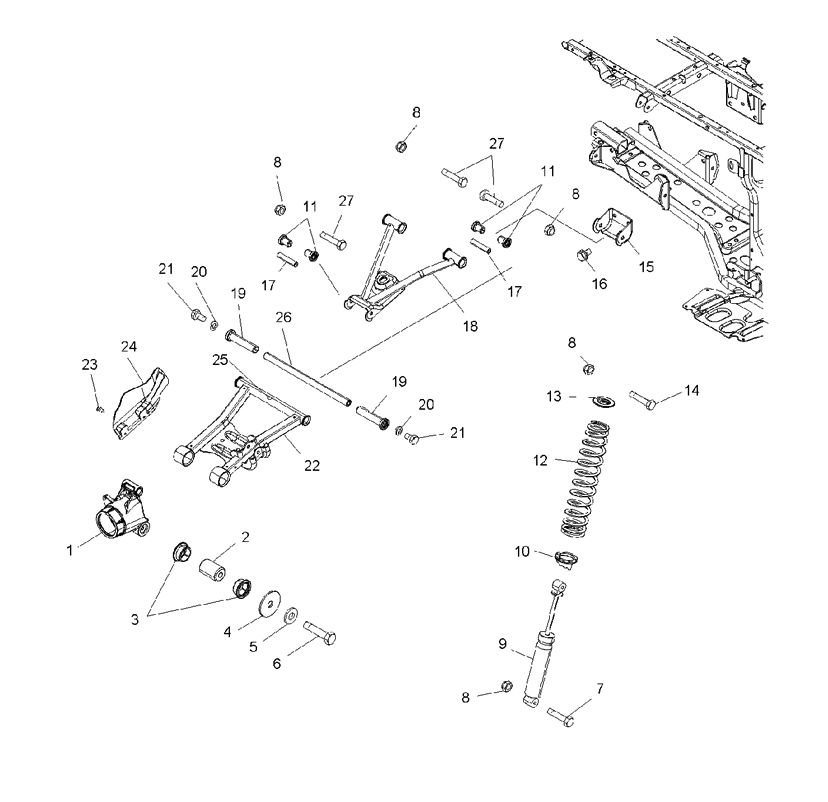

SUSPENSION - REAR для Polaris SPORTSMAN 450 (A07MH46AZ) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
15135563 CARRIER-BEARING,WHEEL(MACH)CARRIER-BEARING,WHEEL(MACH)
-
25631142 BUSHING-BRNG,CARRIER,PM,7/16BUSHING-BRNG,CARRIER,PM,7/16
-
35434550 BUSHING-CONTROL,LOWER, BLACKBUSHING-CONTROL,LOWER, BLACK
-
47555740 WASHERWASHER
-
57552614 WASHER, LOCKWASHER, LOCK
-
67517873 BOLT-7/16-14 UNC-2AX2.75'' GR5BOLT-7/16-14 UNC-2AX2.75'' GR5
-
77515415 SCREWSCREW
-
87542439 NUT,NYLOKNUT,NYLOK
-
97043100 SHOCK-RR,IRSSHOCK-RR,IRS
-
105630551 CAM,ADJUST,SPRINGCAM,ADJUST,SPRING
-
115434548 BUSHING-A-ARM-SHORT, BLACKBUSHING-A-ARM-SHORT, BLACK
-
127043091-067 SPRING-COMP,REAR 100#,15LG, BLACKSPRING-COMP,REAR 100#,15LG, BLACK
-
135631887 RETAINER-SPRINGRETAINER-SPRING
-
147515433 SCREWSCREW
-
155247345 BRKT-A-ARM PIVOT PLTDBRKT-A-ARM PIVOT PLTD
-
167518364 BOLT-3/8-16X7/8 HEX FLANGE GR5BOLT-3/8-16X7/8 HEX FLANGE GR5
-
175020826 SHAFT,A-ARM,SHORTSHAFT,A-ARM,SHORT
-
181014320-067 WELD-UPPER CONTROL ARM, LEFT HAND, BLACKWELD-UPPER CONTROL ARM, LEFT HAND, BLACK
-
181014321-067 WELD-UPPER CONTROL ARM, RIGHT HAND, BLACKWELD-UPPER CONTROL ARM, RIGHT HAND, BLACK
-
195434551 BUSHING-A-ARM,LONG, BLACKBUSHING-A-ARM,LONG, BLACK
-
207552603 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
217512492 SCREWSCREW
-
221015117-067 CONTROL,LOWER, LEFT HAND, BLACKCONTROL,LOWER, LEFT HAND, BLACK
-
221015118-067 CONTROL,LOWER, RIGHT HAND, BLACKCONTROL,LOWER, RIGHT HAND, BLACK
-
237512084 SCREWSCREW
-
245435008-070 SHIELD-CV,REAR,BASIC, BLACK, LEFT HANDSHIELD-CV,REAR,BASIC, BLACK, LEFT HAND
-
245435009-070 SHIELD-CV,REAR,BASIC, BLACK, RIGHT HANDSHIELD-CV,REAR,BASIC, BLACK, RIGHT HAND
-
257080433 FITTING,LUBRICATION,THREADEDFITTING,LUBRICATION,THREADED
-
265133806 SHAFT-A-ARM-SHAFT-A-ARM-
-
277515472 BOLTBOLT
