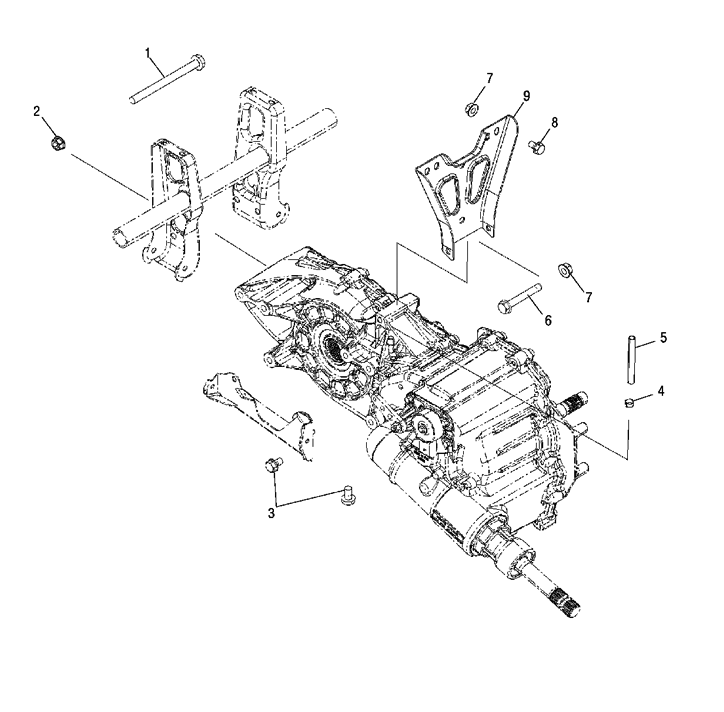

TRANSMISSION - MOUNTING для Polaris SPORTSMAN 450 (A07MH46AZ) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
17518365 BOLT-3/8-16X7 HEX FLANGE GR5BOLT-3/8-16X7 HEX FLANGE GR5
-
27547180 NUT-FLANGED,3/8-16 NYLON-ZNUT-FLANGED,3/8-16 NYLON-Z
-
37518364 BOLT-3/8-16X7/8 HEX FLANGE GR5BOLT-3/8-16X7/8 HEX FLANGE GR5
-
47080307 CLAMP,HOSECLAMP,HOSE
-
58450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
67515382 BOLTBOLT
-
77542343 NUT,FLANGENUT,FLANGE
-
87515398 SCREWSCREW
-
95221624-067 SUPPORT-TRANSMISSION,UPPER, BLACKSUPPORT-TRANSMISSION,UPPER, BLACK
