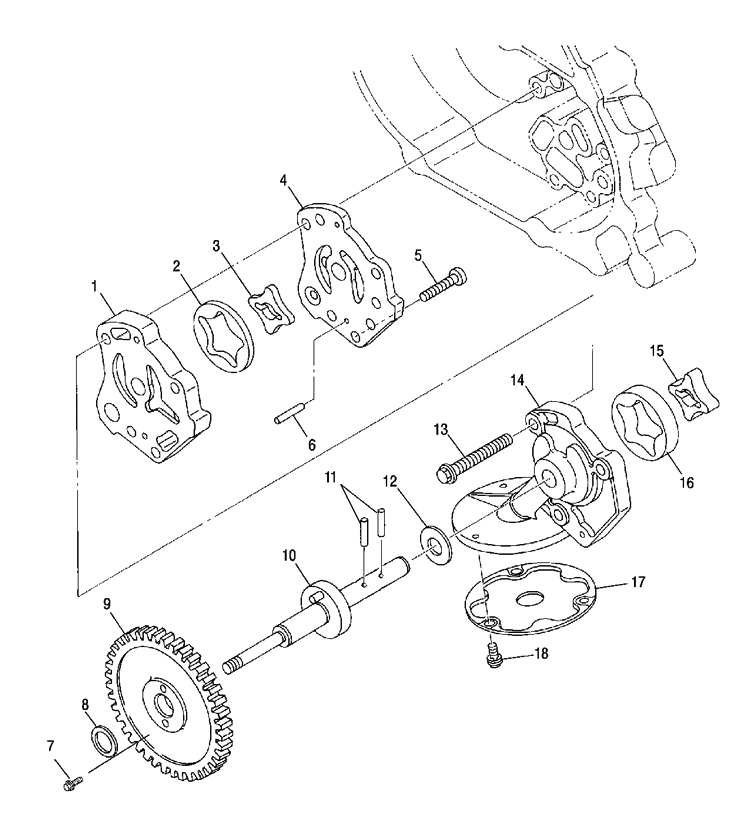

OIL PUMP для Polaris SPORTSMAN 450 (A07MH46AZ) (INDY RED) - 2007 года выпуска
-
№АртикулНазвание
-
13084946 CASE #2,OILPUMPCASE #2,OILPUMP
-
23084949 ROTOR,OUTER,FEEDROTOR,OUTER,FEED
-
33084948 ROTOR,INNER,FEEDROTOR,INNER,FEED
-
43088210 ASM-OIL PUMP (INCL. 1-11,14-10)ASM-OIL PUMP (INCL. 1-11,14-10)
-
43087264 OIL PUMP CASE 1OIL PUMP CASE 1
-
53085535 SCREWSCREW
-
63084955 PIN, DOWELPIN, DOWEL
-
73089505 BOLT-FLANGEBOLT-FLANGE
-
83084959 SPACER,0.8SPACER,0.8
-
83084960 SPACER,1.0SPACER,1.0
-
83084961 SPACER,1.2SPACER,1.2
-
93089774 GEAR, PUMP 2GEAR, PUMP 2
-
103085858 SHAFT,PUMPSHAFT,PUMP
-
113084954 PIN, DOWELPIN, DOWEL
-
123084953 WASHERWASHER
-
133084962 BOLT AND WASHER ASM.BOLT AND WASHER ASM.
-
143087265 OIL PUMP CASE 3OIL PUMP CASE 3
-
153084950 ROTOR,INNER,SCAV.ROTOR,INNER,SCAV.
-
163084949 ROTOR,OUTER,FEEDROTOR,OUTER,FEED
-
173084956 STRAINER UNIT,OILSTRAINER UNIT,OIL
-
183084205 ASM.,SCREW AND WASHERASM.,SCREW AND WASHER
