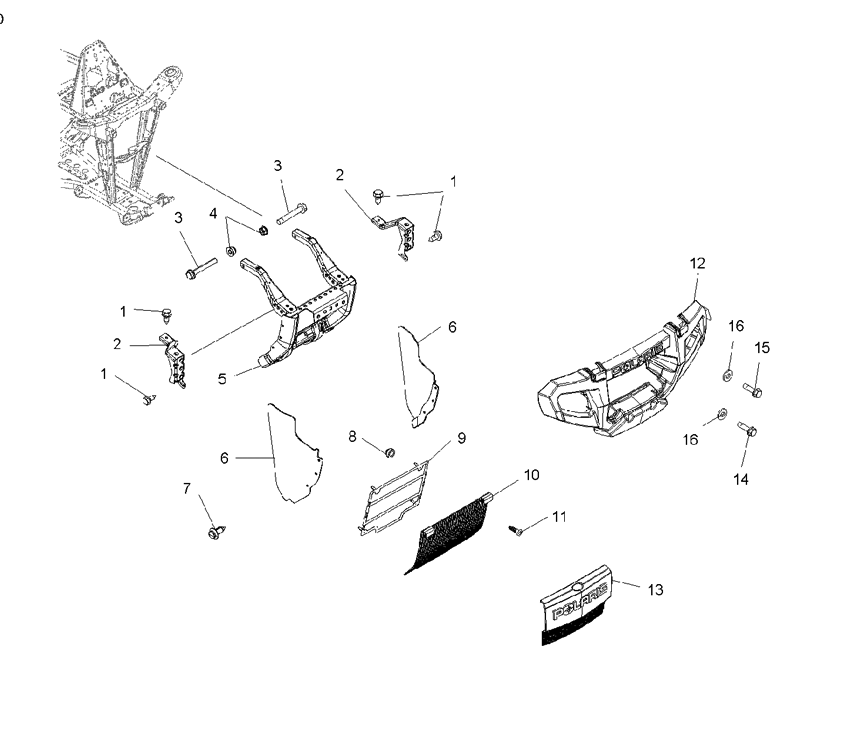

BUMPER MOUNTING - FRONT W/ HEADLIGHT AND TURN SIGNAL ASSY. для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска
-
№АртикулНазвание
-
17515399 SCREWSCREW
-
21014591-067 SUPPORT,RACK, LEFT HAND, BLACKSUPPORT,RACK, LEFT HAND, BLACK
-
21014592-067 SUPPORT,RACK, RIGHT HAND, BLACKSUPPORT,RACK, RIGHT HAND, BLACK
-
37518341 BOLT-5/16-18X1-3/4 HXFLNG GR5BOLT-5/16-18X1-3/4 HXFLNG GR5
-
47542343 NUT,FLANGENUT,FLANGE
-
51015033-067 WELD-BRUSHGUARD, BLACKWELD-BRUSHGUARD, BLACK
-
65434314 SHIELD-RADIATOR,SIDE, LEFT HANDSHIELD-RADIATOR,SIDE, LEFT HAND
-
65434315 SHIELD-RADIATOR,SIDE, RIGHT HANDSHIELD-RADIATOR,SIDE, RIGHT HAND
-
77661855 RIVET-TUFLOK,.315-.325X.787RIVET-TUFLOK,.315-.325X.787
-
85412504 GROMMET-RUBBER,MOUNT,25''GROMMET-RUBBER,MOUNT,25''
-
95435046 COVER-RADIATOR,MESH,LGCOVER-RADIATOR,MESH,LG
-
105247507-067 GRILL-BRUSH GUARD, BLACK-GRILL-BRUSH GUARD, BLACK-
-
117518046 SCR-#8X1 PN-PH H/L-YSCR-#8X1 PN-PH H/L-Y
-
125437086-070 BUMPERBUMPER
-
135435357-070 PANEL-BUMPER,FRONT, BLACKPANEL-BUMPER,FRONT, BLACK
-
147518383 SCR-5/16-18X3/4 HX/W-TAP/R-MSCR-5/16-18X3/4 HX/W-TAP/R-M
-
157518382 BOLT-5/16-18X2.25 FLG TAP/R-MBOLT-5/16-18X2.25 FLG TAP/R-M
-
167556341 WASHER-.327X.875X.090,FL-MWASHER-.327X.875X.090,FL-M
