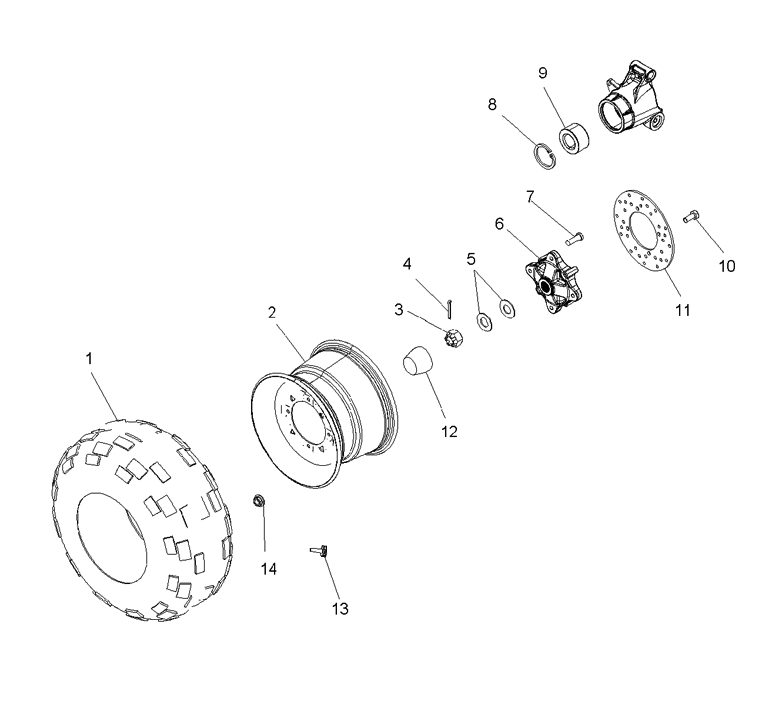

WHEEL - REAR для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска
-
№АртикулНазвание
-
15413115 TIRE-RR AT 25X11-12 489,E-MARKTIRE-RR AT 25X11-12 489,E-MARK
-
21520992-486 WELD-RIM,REAR,12X8,10GA,SLVRWELD-RIM,REAR,12X8,10GA,SLVR
-
37543005 NUT, CASTLENUT, CASTLE
-
47661404 PIN, COTTERPIN, COTTER
-
57555796 WASHER, CONEWASHER, CONE
-
65135657 HUB-WHEEL,REAR,MACHHUB-WHEEL,REAR,MACH
-
77515513 STUDSTUD
-
87710440 RING,RETAININGRING,RETAINING
-
93585502 BEARINGBEARING
-
107518653 BOLT-3/8-16X3/4-HX/CP-GR5-BBOLT-3/8-16X3/4-HX/CP-GR5-B
-
115248250 DISC-BRAKE,REAR,8.625X.188DISC-BRAKE,REAR,8.625X.188
-
125411164 HUB-DUST COVERHUB-DUST COVER
-
131525017 VALVE, RIMVALVE, RIM
-
147547237 NUT-FLANGE,TWO PIECE,3/8-24NUT-FLANGE,TWO PIECE,3/8-24
