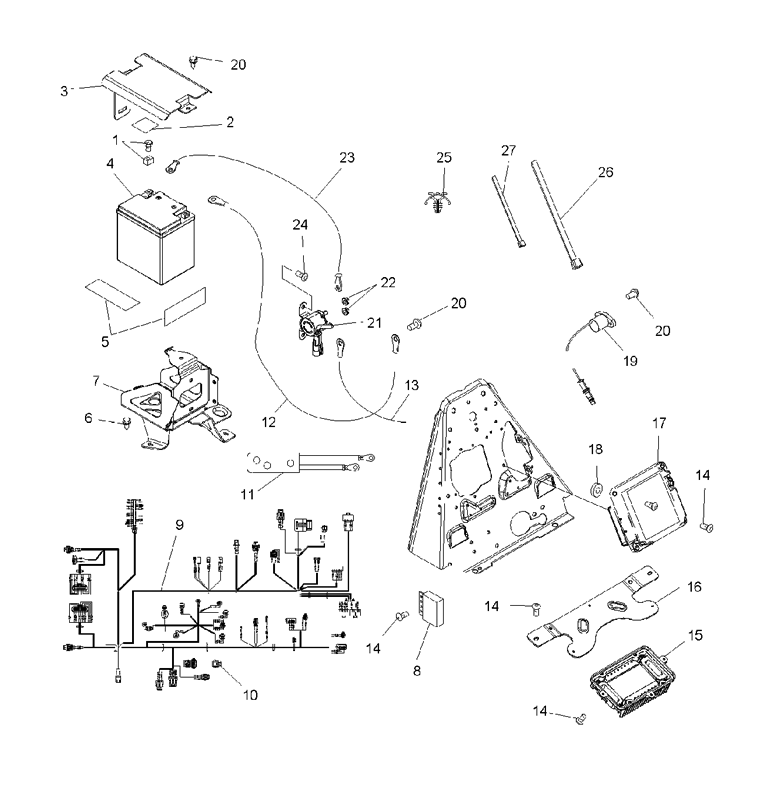

ELECTRICAL COMPONENTS для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска
-
№АртикулНазвание
-
12202213 KIT-BATTERY BOLT (LONG)KIT-BATTERY BOLT (LONG)
-
25813165 PAD-BATTERY,1.75''PAD-BATTERY,1.75''
-
35250933 SHIELD-HEAT,BATTERYSHIELD-HEAT,BATTERY
-
44011224 BATTERY-SEALED,30-AH,360 CCABATTERY-SEALED,30-AH,360 CCA
-
55810290 PAD, BATTERYPAD, BATTERY
-
67517386 SCREWSCREW
-
71015903-067 WELD-BATTERY BOX,BLKWELD-BATTERY BOX,BLK
-
84011553 MODULE-FLASH/TURNMODULE-FLASH/TURN
-
92410752 HARNESS-MAIN,TREK QUADHARNESS-MAIN,TREK QUAD
-
92202670 KIT-FUSIBLE LINK,1.0MMKIT-FUSIBLE LINK,1.0MM
-
92202147 KIT-FUSIBLE LINKKIT-FUSIBLE LINK
-
104010924 MODULE-RESISTORMODULE-RESISTOR
-
112410860 HARNESS-WINCH,PREWIRE,X2HARNESS-WINCH,PREWIRE,X2
-
124011552 CABLE-GRD(FRAME/BATTERY)CABLE-GRD(FRAME/BATTERY)
-
134010093 CABLE,SOL/STARTERCABLE,SOL/STARTER
-
147512024 SCREWSCREW
-
154011657 CONTROL-MODULE,X2,500EFICONTROL-MODULE,X2,500EFI
-
165249459 BRKT-PDM, MOUNT, PLATEDBRKT-PDM, MOUNT, PLATED
-
174011763 MODULE-ENGINE CONTROL,ECU 500EMODULE-ENGINE CONTROL,ECU 500E
-
187555932 WASHER,NYLONWASHER,NYLON
-
194011484 ASM-COIL/SPARK PLUG WIRE (INC PLUG WIRE)ASM-COIL/SPARK PLUG WIRE (INC PLUG WIRE)
-
207512232 BOLTBOLT
-
214010947 SOLENOID-STARTER-C1100SOLENOID-STARTER-C1100
-
227547270 NUT-HXFLGHD,M6,SERRATEDNUT-HXFLGHD,M6,SERRATED
-
234011360 CABLE-BAT/SOL,REDCABLE-BAT/SOL,RED
-
247512084 SCREWSCREW
-
257080965 MOUNT-CABLE TIE,.25MOUNT-CABLE TIE,.25
-
267080492 CABLE TIE,11 INCHCABLE TIE,11 INCH
-
277080138 CABLE TIECABLE TIE
