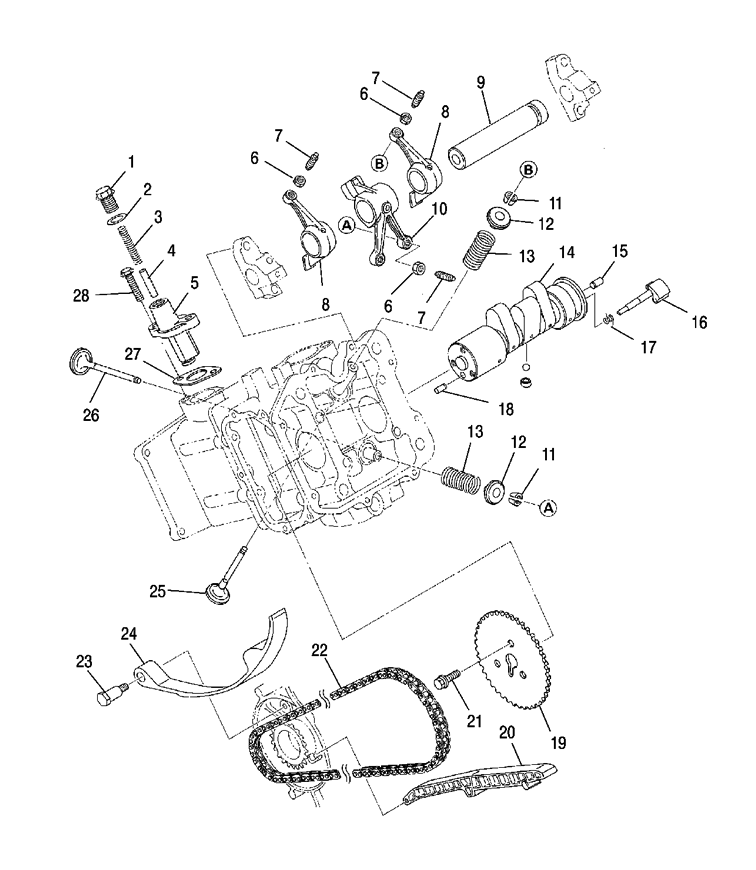

INTAKE AND EXHAUST для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска
-
№АртикулНазвание
-
13087129 PLUGPLUG
-
23087130 GASKET, PLUGGASKET, PLUG
-
33087131 SPRING, TENSIONERSPRING, TENSIONER
-
43087132 PINPIN
-
53086493 TENSIONER,ASM. (INCL. 1-4)TENSIONER,ASM. (INCL. 1-4)
-
63084912 NUTNUT
-
73084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
83084910 ROCKER ARM ASM,INTAKE (INCL. 6,7)ROCKER ARM ASM,INTAKE (INCL. 6,7)
-
93084909 SHAFT,ROCKERSHAFT,ROCKER
-
103084913 ROCKER ARM ASM,EXHAUST (INCL. 6,7)ROCKER ARM ASM,EXHAUST (INCL. 6,7)
-
113084908 COLLET,VALVECOLLET,VALVE
-
123087203 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
133084906 SPRING,VALVESPRING,VALVE
-
143085855 ASM.,CAMSHAFT (INCL. 15-18)ASM.,CAMSHAFT (INCL. 15-18)
-
153086838 PIN,DOWELPIN,DOWEL
-
163085348 LEVER, RELEASELEVER, RELEASE
-
173085076 SPRING,RETURNSPRING,RETURN
-
183084899 PIN,DOWELPIN,DOWEL
-
193084914 SPROCKET 2SPROCKET 2
-
203084916 GUIDE,CHAINGUIDE,CHAIN
-
213081657 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
223084915 CHAIN, TIMINGCHAIN, TIMING
-
233084924 ASM.,BOLT,PIVOT,LEVERASM.,BOLT,PIVOT,LEVER
-
243084917 LEVERLEVER
-
253085349 VALVE,INTAKEVALVE,INTAKE
-
263085412 VALVE, EXHAUSTVALVE, EXHAUST
-
273086448 GASKET-TENSIONERGASKET-TENSIONER
-
283083361 BOLT, FLANGEBOLT, FLANGE
