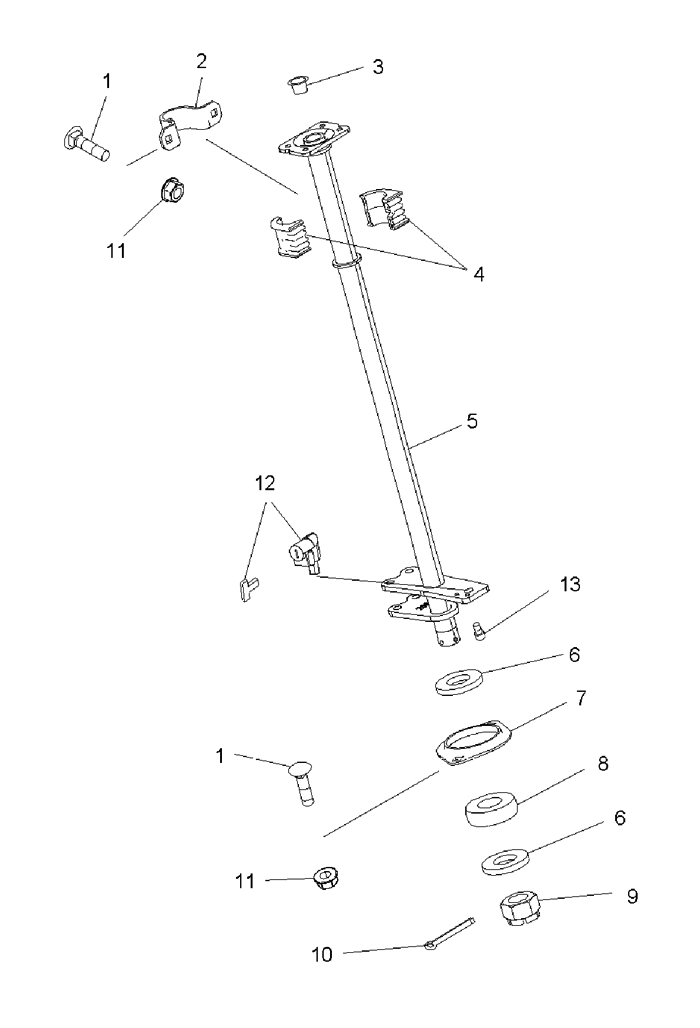

STEERING POST для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска
-
№АртикулНазвание
-
17517428 BOLTBOLT
-
25246732 BRKT-UPPER BUSHING-BRKT-UPPER BUSHING-
-
35435661 PLUGPLUG
-
45433866 BUSHING-UPPER,1 INBUSHING-UPPER,1 IN
-
51015611-329 WELD-STEERING POST, BLACKWELD-STEERING POST, BLACK
-
67556162 BUSHING-1X1 1/2X .145BUSHING-1X1 1/2X .145
-
75222393 FLANGETTE (2-BOLT)FLANGETTE (2-BOLT)
-
83514352 BEARING-1XM52XM15,SPHBEARING-1XM52XM15,SPH
-
97547158 NUT-SLOTTED HEX,1-14-HXNUT-SLOTTED HEX,1-14-HX
-
107661633 PIN, COTTERPIN, COTTER
-
117542343 NUT,FLANGENUT,FLANGE
-
127081224 LOCK-STEERINGLOCK-STEERING
-
137518457 SCR-M5X.8X10 TX BTN PIN-IN-HDSCR-M5X.8X10 TX BTN PIN-IN-HD
