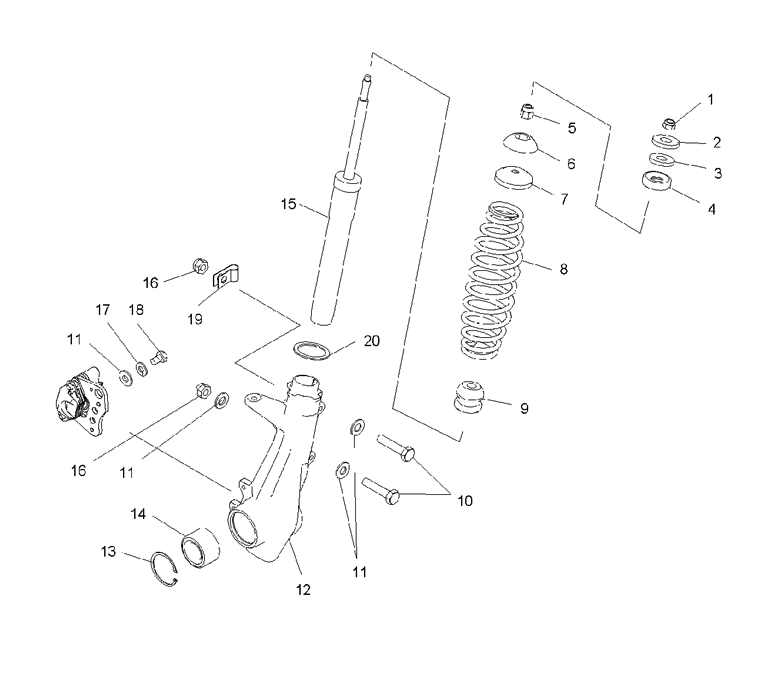

SUSPENSION - FRONT STRUT для Polaris SPORTSMAN X2 500 EFI (QUAD) (A07TH50EA) - 2007 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 PIVOT,BALL,TOPPIVOT,BALL,TOP
-
55132062 SPACER-1/2-20SPACER-1/2-20
-
65432871 PIVOT,BALL,BOTTOMPIVOT,BALL,BOTTOM
-
75243364 RETAINER-SPRINGRETAINER-SPRING
-
87043247-067 SPRING-COMP,55-90 #/IN,HT, BLACKSPRING-COMP,55-90 #/IN,HT, BLACK
-
95412665 BUMPER-MCU,17.8MM IDBUMPER-MCU,17.8MM ID
-
107515339 BOLTBOLT
-
117558402 WASHER,FLATWASHER,FLAT
-
121822825 ASM-HUBSTRUT, LEFT HAND,4X4 (INCL. 13,14 AND FROM A-ARM/STRUT MOUNTING PAGE, 2,3,5)ASM-HUBSTRUT, LEFT HAND,4X4 (INCL. 13,14 AND FROM A-ARM/STRUT MOUNTING PAGE, 2,3,5)
-
121822826 ASM-HUBSTRUT, RIGHT HAND,4X4 (NCL. 13,14 AND FROM A-ARM/STRUT MOUNTING PAGE, 2,3,5)ASM-HUBSTRUT, RIGHT HAND,4X4 (NCL. 13,14 AND FROM A-ARM/STRUT MOUNTING PAGE, 2,3,5)
-
137710507 RING,RET.,2.500 INTERNALRING,RET.,2.500 INTERNAL
-
143514342 BEARING-AXLE TUBE/HUBSTRUTBEARING-AXLE TUBE/HUBSTRUT
-
157041762 STRUT-FRONT,18X30MM,184.7MM LTSTRUT-FRONT,18X30MM,184.7MM LT
-
167542324 NUT,NYLOKNUT,NYLOK
-
177552901 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
187512365 SCREW, CAPSCREW, CAP
-
197080367 CLAMP, CABLECLAMP, CABLE
-
205211115 WASHERWASHER
