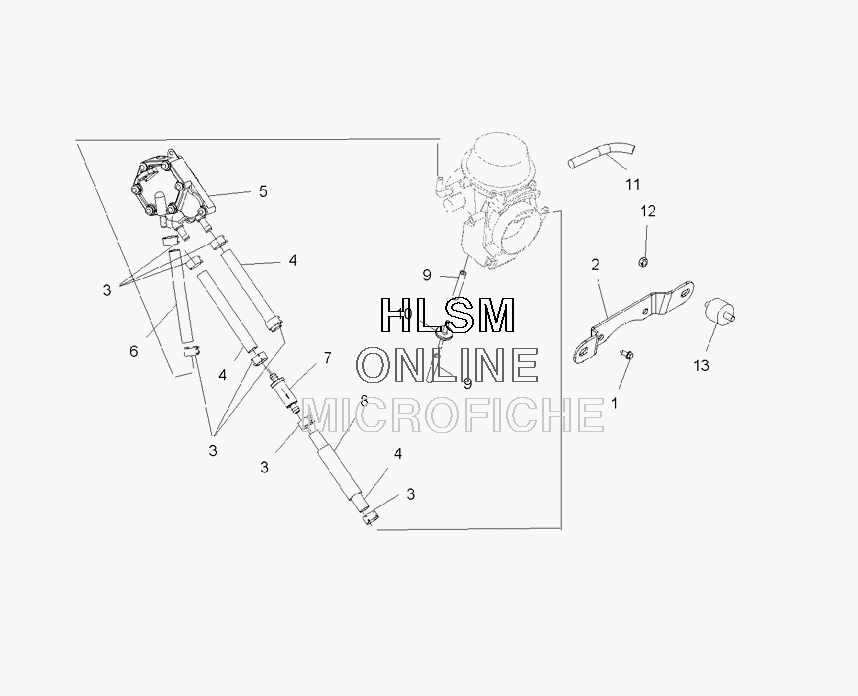

CARBURETOR - MOUNTING - FUEL PUMP W/LINES для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска
-
№АртикулНазвание
-
13084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
25247951 BRKT-CARB, MOUNTBRKT-CARB, MOUNT
-
37080003 CLAMP, HOSECLAMP, HOSE
-
48450117-250 FUEL HOSE-250 CMFUEL HOSE-250 CM
-
53085275 ASM., FUEL PUMPASM., FUEL PUMP
-
68450040-600 LINE FUEL, 1/4 ID(600 CM.)LINE FUEL, 1/4 ID(600 CM.)
-
72530009 FILTER, SMALL, IN-LINE,FILTER, SMALL, IN-LINE,
-
88450105-65 SHEATH-REFLECTSLEEVE, 16MMX65CMSHEATH-REFLECTSLEEVE, 16MMX65CM
-
98360009-600 LINE, FUEL, 1/8 ID, 600 CM.LINE, FUEL, 1/8 ID, 600 CM.
-
107051011 VALVE, CHECKVALVE, CHECK
-
118450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
127542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
133110032 MOUNT, RUBBERMOUNT, RUBBER
