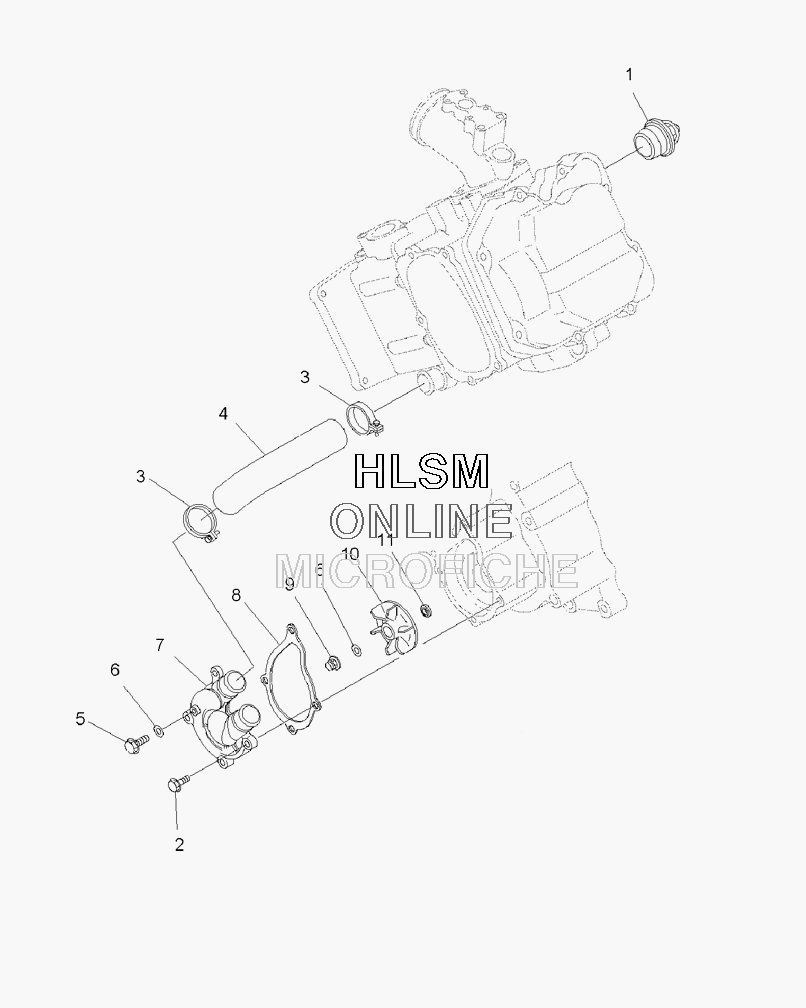

WATER PUMP для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска
-
№АртикулНазвание
-
13084940 THERMOSTATTHERMOSTAT
-
23084877 BOLT, FLANGEBOLT, FLANGE
-
33086774 CLAMP-HOSECLAMP-HOSE
-
43085857 HOSE, MAINHOSE, MAIN
-
53085359 BOLT, FLANGEBOLT, FLANGE
-
67555998 WASHER, FLATWASHER, FLAT
-
73085351 COVER, WATER PUMPCOVER, WATER PUMP
-
83086840 GASKET, WATER-PUMPGASKET, WATER-PUMP
-
93085077 NUT, SELF-LOCKNUT, SELF-LOCK
-
103084935 IMPELLERIMPELLER
-
113084942 WASHER, SEALWASHER, SEAL
