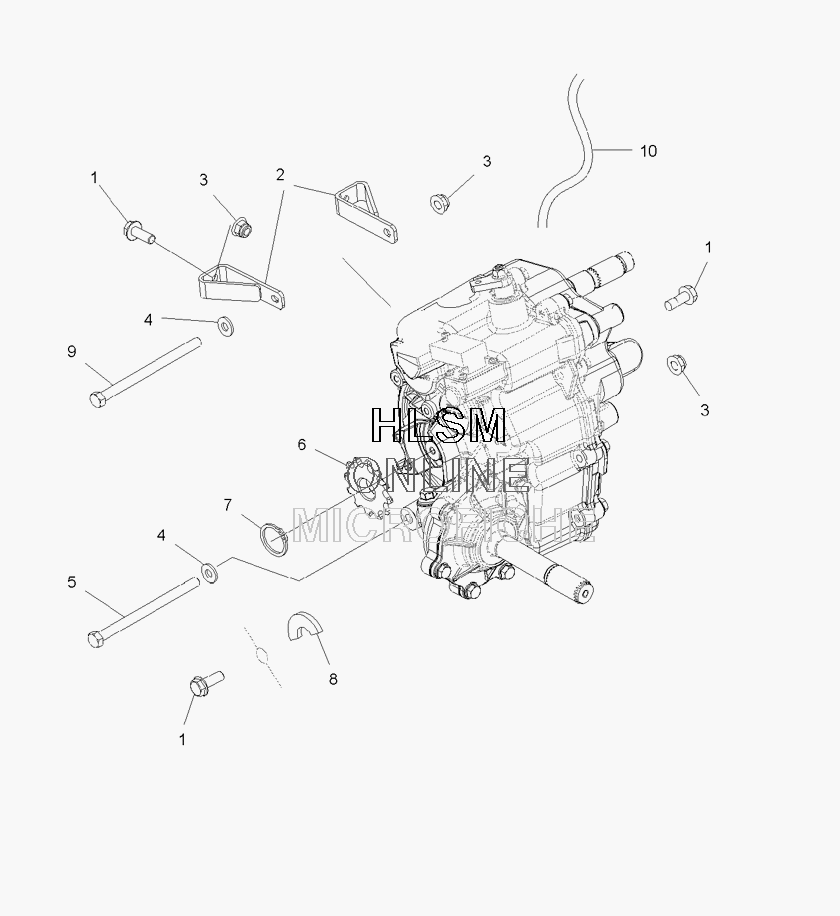

GEARCASE MOUNTING для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска
-
№АртикулНазвание
-
17518364 BOLT-3/8-16X7/8 HEX FLANGE GR5BOLT-3/8-16X7/8 HEX FLANGE GR5
-
21014772 TRANSMISSION MOUNTTRANSMISSION MOUNT
-
37547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
47555806 WASHER, FLATWASHER, FLAT
-
57517646 SCREWSCREW
-
63221041 SPKT, 13T, SPLINEDSPKT, 13T, SPLINED
-
77710434 RING, SNAPRING, SNAP
-
85211065 SHIM, .010SHIM, .010
-
85210764 SPACER-.020SPACER-.020
-
85211517 SHIM, (.030)SHIM, (.030)
-
97517640 SCREWSCREW
-
108360009-600 LINE, FUEL, 1/8 ID, 600 CM.LINE, FUEL, 1/8 ID, 600 CM.
