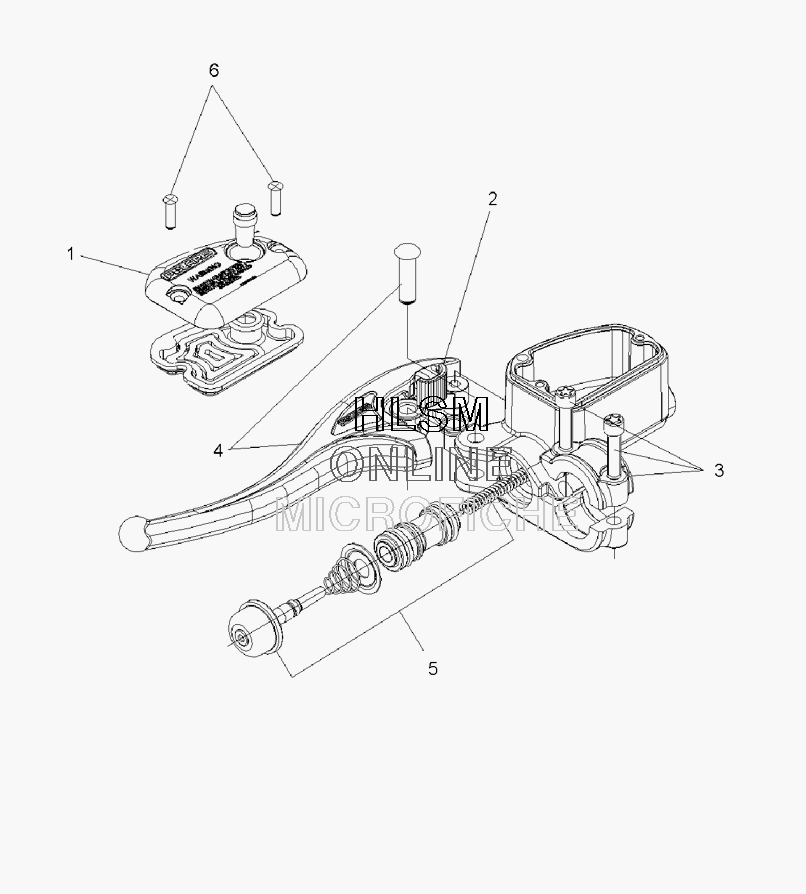

FRONT MASTER CYLINDER W/BRAKE LEVER для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска
-
№АртикулНазвание
-
-2010238 ASM-MASTER CYL, 3/4 BANJO, WW, LEFT HAND (INCL. ALL)ASM-MASTER CYL, 3/4 BANJO, WW, LEFT HAND (INCL. ALL)
-
12201834 KIT-M/C CAP (INCL. CAP, SCREWS, SIGHT, GASKET)KIT-M/C CAP (INCL. CAP, SCREWS, SIGHT, GASKET)
-
22201836 KIT, MASTER CYLINDER PARK BRAKE (INCL. LEVER, SPRING)KIT, MASTER CYLINDER PARK BRAKE (INCL. LEVER, SPRING)
-
32201833 KIT, MASTER CYLINDER CLAMP (INCL. CLAMP, SCREWS)KIT, MASTER CYLINDER CLAMP (INCL. CLAMP, SCREWS)
-
42201835 KIT, MASTER CYLINDER LEVER (INCL. PIN, LEVER, CLIP)KIT, MASTER CYLINDER LEVER (INCL. PIN, LEVER, CLIP)
-
52202410 KIT-PISTON, 3/4'' MSTR CYLKIT-PISTON, 3/4'' MSTR CYL
-
67517899 SCREW, 8-32X5/8, TORX FLEFT HANDD MS-MSCREW, 8-32X5/8, TORX FLEFT HANDD MS-M
