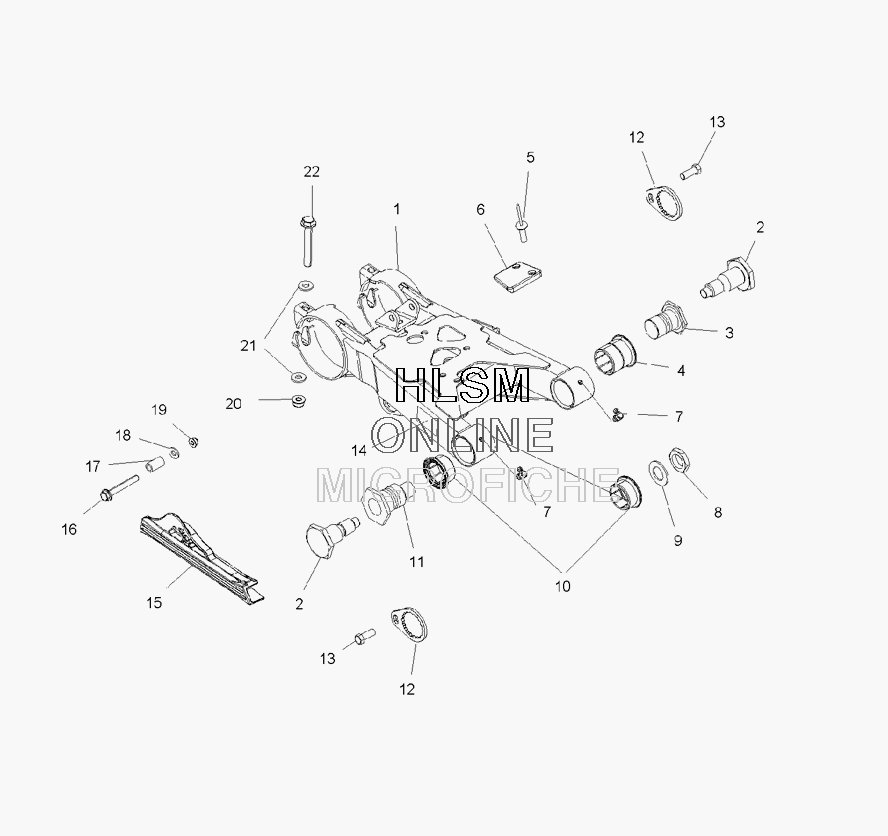

SWING ARM ASSEMBLY для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска
-
№АртикулНазвание
-
11541988-385 ASM-SWING ARM, LONG TVL, C. SLVR (INCL. 4, 7, 10)ASM-SWING ARM, LONG TVL, C. SLVR (INCL. 4, 7, 10)
-
25134321 BOLT-PIVOTBOLT-PIVOT
-
35133166 BUSHING-PIVOT, LEFT HANDBUSHING-PIVOT, LEFT HAND
-
45434545 BUSHING-LEFT HAND, HYBRID, BLACKBUSHING-LEFT HAND, HYBRID, BLACK
-
57661046 RIVET-POP, 3/16 (.376-.500)RIVET-POP, 3/16 (.376-.500)
-
65432727 GUIDE, CHAIN PADGUIDE, CHAIN PAD
-
77080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
87547082 NUT, HEX, JAMNUT, HEX, JAM
-
97556035 WASHER, FLATWASHER, FLAT
-
105434546 BUSHING-RIGHT HAND, HYBRID, BLACKBUSHING-RIGHT HAND, HYBRID, BLACK
-
115133167 BUSHING-PIVOT, RIGHT HANDBUSHING-PIVOT, RIGHT HAND
-
125247488 BRKT-BOLT LOCKBRKT-BOLT LOCK
-
137515399 SCREWSCREW
-
147078572 DECAL-''CHAIN FREEPLAY'', HYBRIDDECAL-''CHAIN FREEPLAY'', HYBRID
-
155432854 GUARD, CHAINGUARD, CHAIN
-
167515304 SCREW-FLANGEDSCREW-FLANGED
-
175332828 BUSHINGBUSHING
-
187558402 WASHER, FLATWASHER, FLAT
-
197542343 NUT, FLANGENUT, FLANGE
-
207547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
217555883 WASHERWASHER
-
227512576 BOLTBOLT
