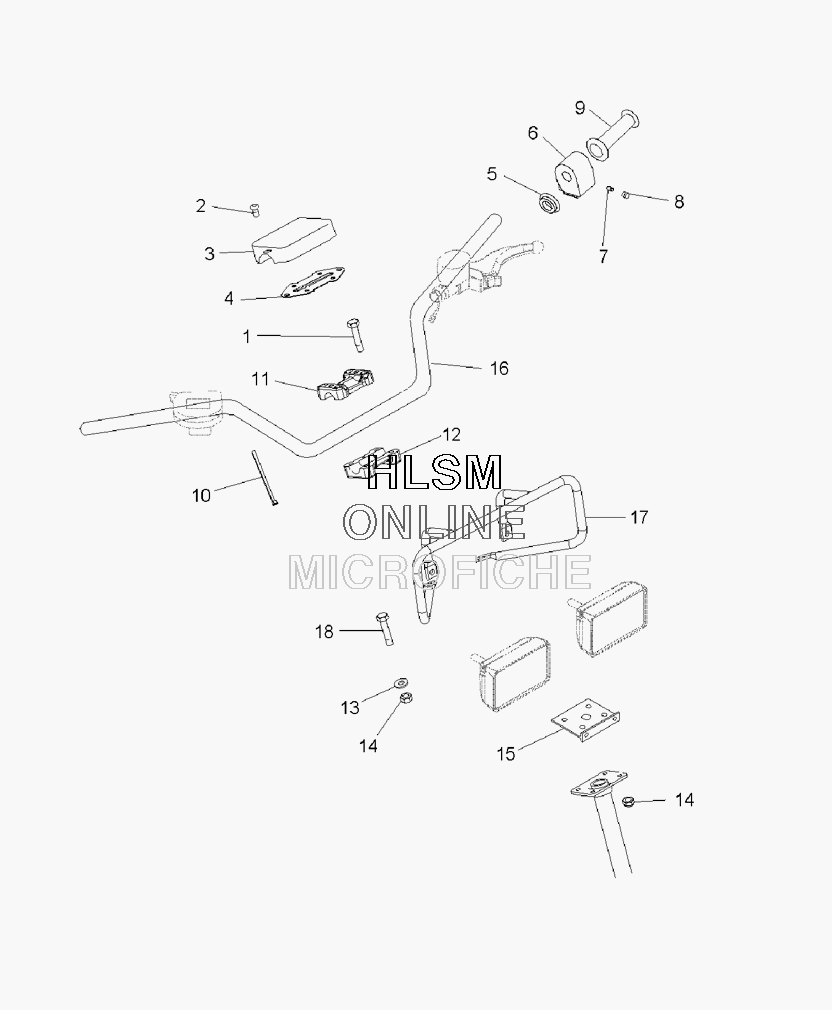

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris SCRAMBLER 500 (A09BG50AA) - 2009 года выпуска`
-
№АртикулНазвание
-
17515189 SCREWSCREW
-
27518490 SCR-1/4-20X1/2, TFM HW-MSCR-1/4-20X1/2, TFM HW-M
-
35433993 PAD-HANDLE BARPAD-HANDLE BAR
-
45245051 MOUNT-HANDLEBAR PADMOUNT-HANDLEBAR PAD
-
55433903 SPACER-SWITCH, LEFT HAND, 99SPACER-SWITCH, LEFT HAND, 99
-
64011835 CNTRL-LEFT HAND, HI/LO/OFF, 2P, SEPCNTRL-LEFT HAND, HI/LO/OFF, 2P, SEP
-
77517625 SCREW, SETSCREW, SET
-
85432952 PLUG, HOLEPLUG, HOLE
-
95413578-070 GRIP-HANDLEBAR, BLACKGRIP-HANDLEBAR, BLACK
-
107080138 CABLE TIECABLE TIE
-
115631972 BLOCK-HANDLEBAR, PEG, 89 IDBLOCK-HANDLEBAR, PEG, 89 ID
-
125631973 BLOCK-HANDLEBAR, .89 IDBLOCK-HANDLEBAR, .89 ID
-
137558301 WASHER, FLATWASHER, FLAT
-
147542122 NUT-NYLOKNUT-NYLOK
-
155242867-067 BRKT, H/L, ELEC.SPEEDO, BLACK.BRKT, H/L, ELEC.SPEEDO, BLACK.
-
165244765-067 TUBE-HANDLEBAR, BLACK-TUBE-HANDLEBAR, BLACK-
-
171014833-067 HEADLIGHT GUARD, BLACKHEADLIGHT GUARD, BLACK
-
187512240 BOLTBOLT
