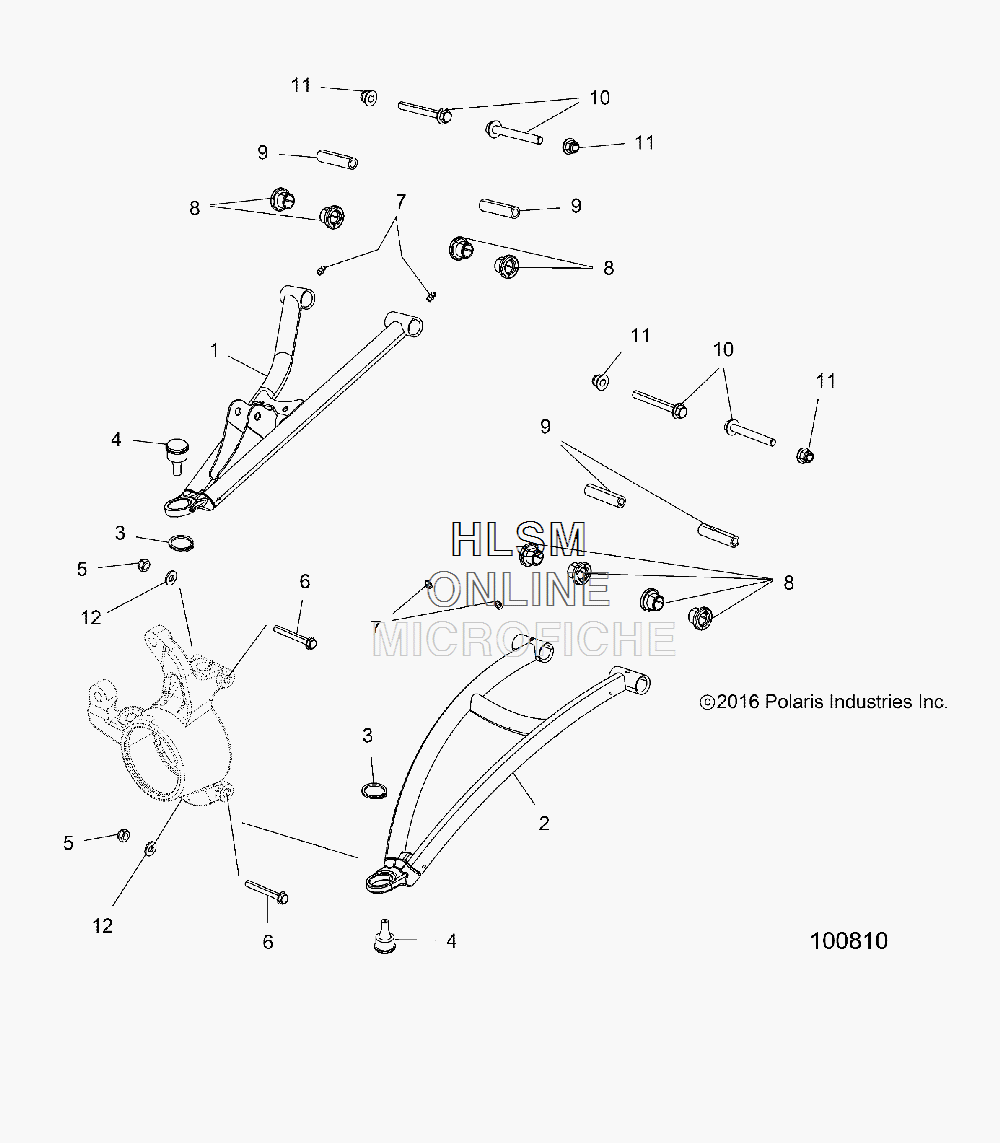

A-ARMS - FRONT для Polaris SPORTSMAN 1000 XP MD STEALTH BLACK [A17SXE95NL] - 2017 года выпуска
-
№АртикулНазвание
-
11019808-293 ARM, CONTROL, UPPER, FRONT, LH, INDY REDARM, CONTROL, UPPER, FRONT, LH, INDY RED
-
11019809-293 ARM, CONTROL, UPPER, FRONT, RH, INDY REDARM, CONTROL, UPPER, FRONT, RH, INDY RED
-
21021187-293 WELD-LCA,FRONT,LH, INDY REDWELD-LCA,FRONT,LH, INDY RED
-
21021188-293 WELD-LCA,FRONT,RH, INDY REDWELD-LCA,FRONT,RH, INDY RED
-
37710533 RING, RETAININGRING, RETAINING
-
47061220 BALL JOINTBALL JOINT
-
57547405 NUT, NYLOKNUT, NYLOK
-
67519212 SCREW, FLANGESCREW, FLANGE
-
77080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
81543367 ASM-BUSHING,HD,W/SEAL,5.23 FLGASM-BUSHING,HD,W/SEAL,5.23 FLG
-
95137346 SHAFT, A-ARMSHAFT, A-ARM
-
107518466 BOLT, FLANGEBOLT, FLANGE
-
117547313 NUT, FLANGENUT, FLANGE
-
127556557 WASHERWASHER
