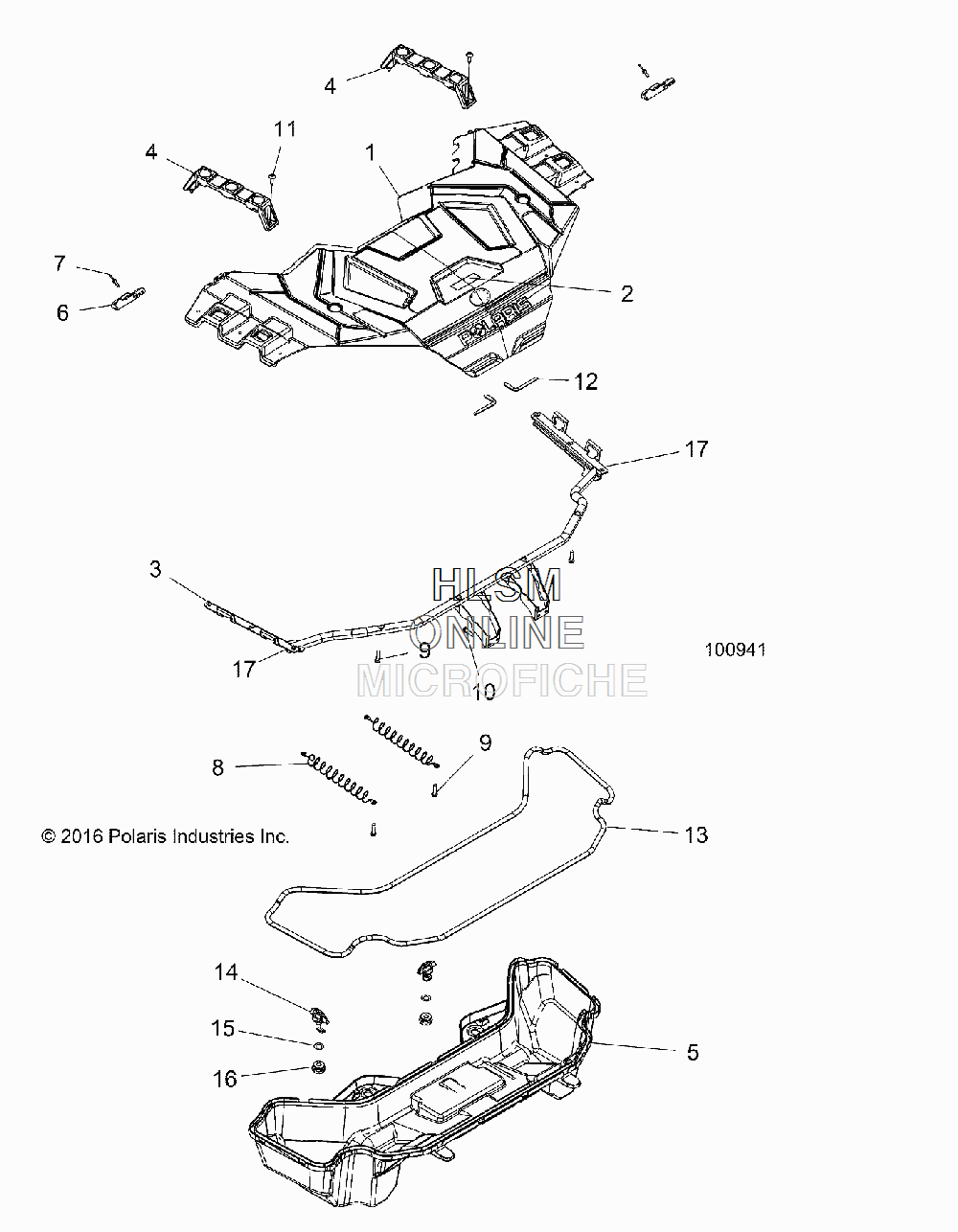

FRONT RACK для Polaris SPORTSMAN 1000 XP MD STEALTH BLACK [A17SXE95NL] - 2017 года выпуска
-
№АртикулНазвание
-
12636452-070 ASM-RACK,FRONT,BLK [INCL. RACK, SUPPORT, EXTENDERS, CABLES]ASM-RACK,FRONT,BLK [INCL. RACK, SUPPORT, EXTENDERS, CABLES]
-
15452935-070 RACK-FRONT,BLKRACK-FRONT,BLK
-
27175448 DECAL-WARN,FR & RR RACK,120/240DECAL-WARN,FR & RR RACK,120/240
-
31022750-067 WELD-RACK SUPPORT,FRONT,BLKWELD-RACK SUPPORT,FRONT,BLK
-
45633722-458 EXTENDER-RACKEXTENDER-RACK
-
52636501-070 ASM., FRONT STORAGE [INCL. 5,13-16]ASM., FRONT STORAGE [INCL. 5,13-16]
-
55452965-070 STORAGE-FRONT,BLKSTORAGE-FRONT,BLK
-
67081927 LATCH-RUBBER,LOWERLATCH-RUBBER,LOWER
-
77621334 RIVET-5/32 BULBEX-BRIVET-5/32 BULBEX-B
-
87081741 CABLE-COVER,BOX,PRE-COILCABLE-COVER,BOX,PRE-COIL
-
97518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
107519290 SCR-TXPH-#14X3/4 HI/LO CLRSCR-TXPH-#14X3/4 HI/LO CLR
-
117519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
127662306 PIN-HINGE,6MMPIN-HINGE,6MM
-
135522201 SEAL, FRONT STORAGESEAL, FRONT STORAGE
-
147081730 LATCHLATCH
-
157555919 WASHERWASHER
-
165413428 GROMMETGROMMET
-
177081085 PLUG-BARBED,.625PLUG-BARBED,.625
