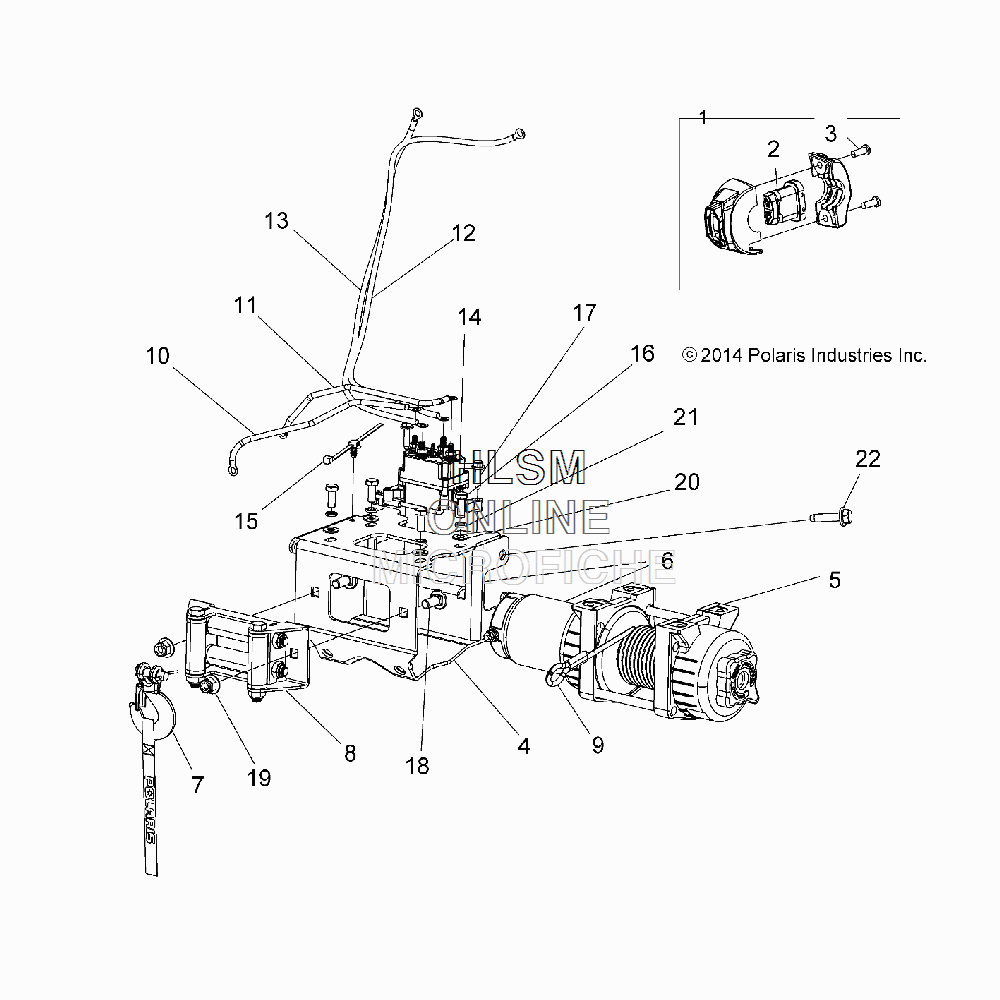

WINCH ASSY. для Polaris SPORTSMAN 1000 XP MD STEALTH BLACK [A17SXE95NL] - 2017 года выпуска
-
№АртикулНазвание
-
12205636 KIT, WINCH, SWITCHKIT, WINCH, SWITCH
-
22412948 SWITCH, WINCH, ATVSWITCH, WINCH, ATV
-
37518238 SCREWSCREW
-
41022577 WELD-WINCH MT BRKT,CTR,ATVWELD-WINCH MT BRKT,CTR,ATV
-
52206563 WINCH-POL2500,BTWINCH-POL2500,BT
-
62205834 KIT, SERVICE, WINCH + BRACKET, 25KIT, SERVICE, WINCH + BRACKET, 25
-
72411836 HOOK, LATCH [INCL. 7082085]HOOK, LATCH [INCL. 7082085]
-
77082085 STRAP-WINCH,HOOKSTRAP-WINCH,HOOK
-
82411848 ROLLER, FAIRLEADROLLER, FAIRLEAD
-
92878890 CABLE, WINCH, STEELCABLE, WINCH, STEEL
-
104013468-300 CABLE, WINCH, YELLOW, 6 GACABLE, WINCH, YELLOW, 6 GA
-
114013469-300 CABLE, WINCH, BLUE, 6 GACABLE, WINCH, BLUE, 6 GA
-
124013470-530 CABLE-POWER,WINCH,BLK #6,530MMCABLE-POWER,WINCH,BLK #6,530MM
-
134013471-510WC CABLE-POWER,WINCH,RED #6,510MMCABLE-POWER,WINCH,RED #6,510MM
-
144015095 CONTACTOR, WINCHCONTACTOR, WINCH
-
157081496 CLIP, ROUTINGCLIP, ROUTING
-
167518097 SCREWSCREW
-
177519342 SCREWSCREW
-
187519372 SCREWSCREW
-
197547423 NUT, NYLOCKNUT, NYLOCK
-
207555770 WASHERWASHER
-
217556111 WASHER, LOCKWASHER, LOCK
-
227518514 BOLTBOLT
