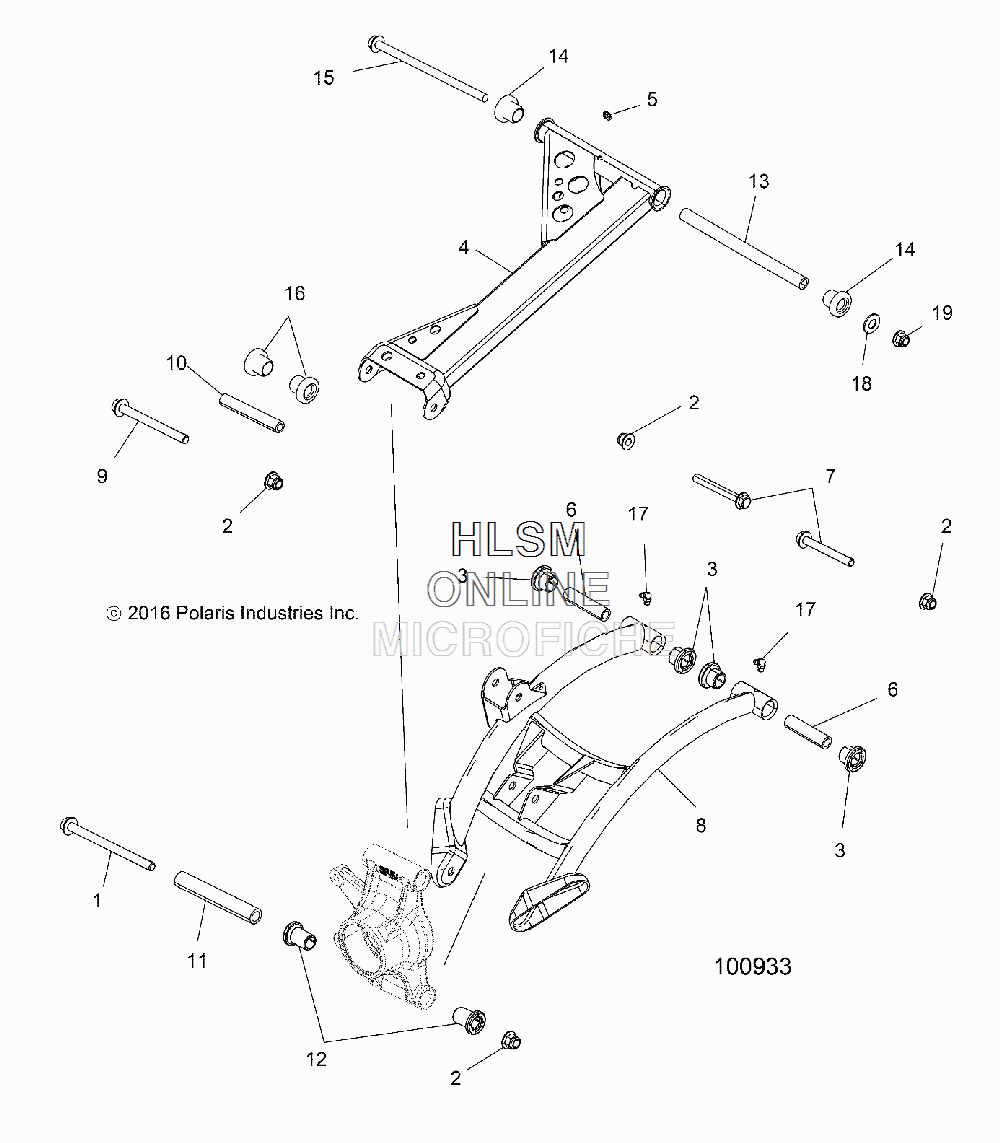

SUSPENSION - REAR для Polaris SPORTSMAN 1000 XP MD STEALTH BLACK [A17SXE95NL] - 2017 года выпуска
-
№АртикулНазвание
-
17518467 BOLT, FLANGEBOLT, FLANGE
-
27547313 NUT, FLANGENUT, FLANGE
-
31543367 ASM-BUSHING,HD,W/SEAL,5.23 FLGASM-BUSHING,HD,W/SEAL,5.23 FLG
-
41017216-293 ARM, CONTROL, UPPER, REAR, LH, INDY REDARM, CONTROL, UPPER, REAR, LH, INDY RED
-
41017217-293 ARM, CONTROL, UPPER, REAR, RH, INDY REDARM, CONTROL, UPPER, REAR, RH, INDY RED
-
57080433 FITTING, LUBRICATINGFITTING, LUBRICATING
-
65137346 SHAFT, A-ARMSHAFT, A-ARM
-
77518466 BOLT, FLANGEBOLT, FLANGE
-
81022011-293 WELD-LCA,REAR,LH BRKT,INDY REDWELD-LCA,REAR,LH BRKT,INDY RED
-
81022012-293 WELD-LCA,REAR,RH BRKT,INDY REDWELD-LCA,REAR,RH BRKT,INDY RED
-
97518675 BOLT, FLANGEBOLT, FLANGE
-
105137590 SHAFT, PIVOTSHAFT, PIVOT
-
115136473 SHAFT, A-ARM, LOWER CONTROL ARMSHAFT, A-ARM, LOWER CONTROL ARM
-
125437651 BUSHING, LOWER CONTROL ARMBUSHING, LOWER CONTROL ARM
-
135137594 SHAFT, PIVOTSHAFT, PIVOT
-
145436973 BUSHING-A-ARM,LONG,102.36MMBUSHING-A-ARM,LONG,102.36MM
-
157519086 SCR-HXFL-M10X1.25X235 10.9 ZODSCR-HXFL-M10X1.25X235 10.9 ZOD
-
165439874 BUSHING-STANDARD,ORVBUSHING-STANDARD,ORV
-
177080510 FITTING - ZERK, 90 DEGREEFITTING - ZERK, 90 DEGREE
-
187556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
-
197547333 NUT-M10X1.25,FLG,NYLOC-OLIVE DNUT-M10X1.25,FLG,NYLOC-OLIVE D
