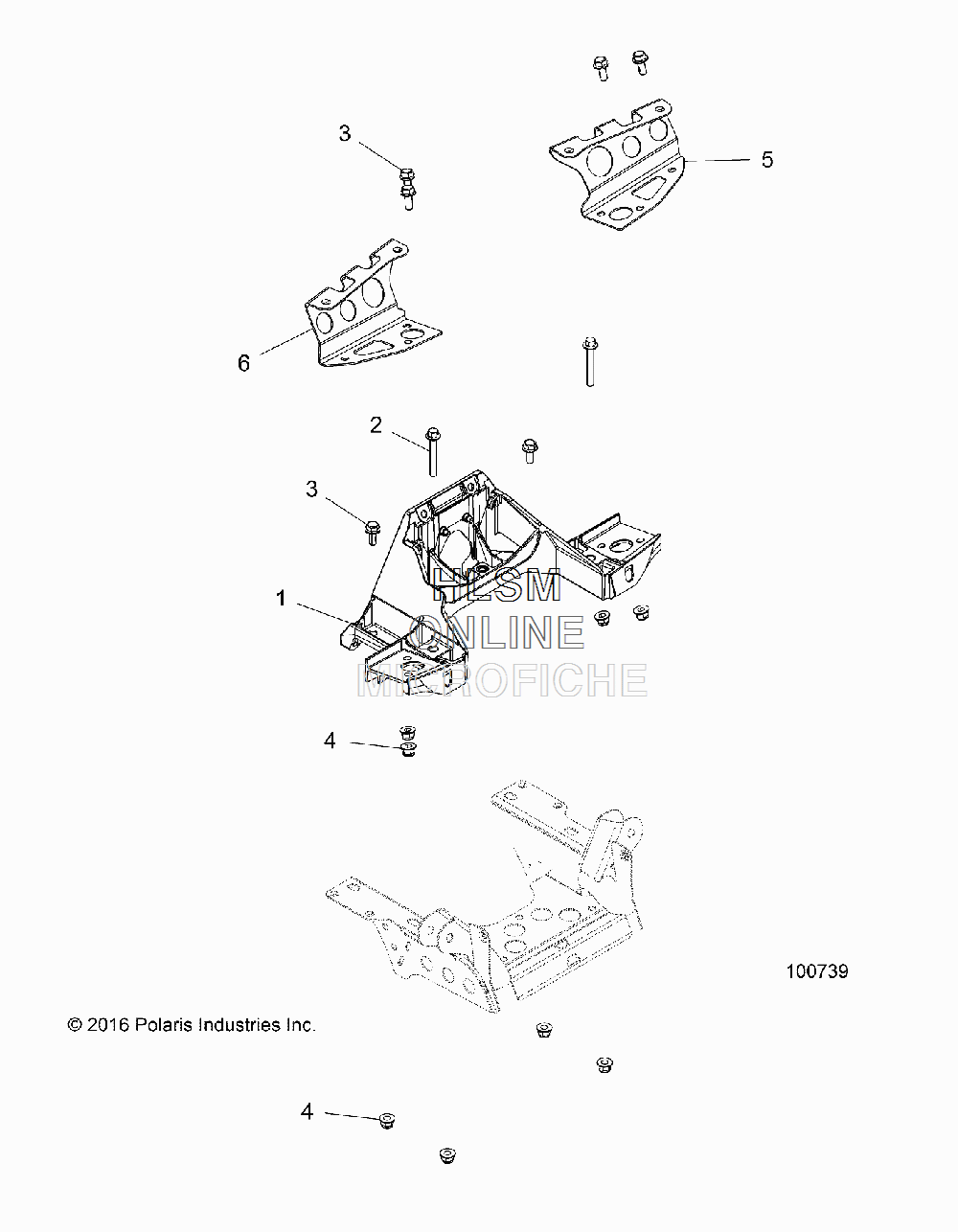

BULKHEAD AND FRONT CAB SUPPORT для Polaris SPORTSMAN 1000 XP MD STEALTH BLACK [A17SXE95NL] - 2017 года выпуска
-
№АртикулНазвание
-
15633745 BULKHEAD-CASTBULKHEAD-CAST
-
27517281 SCR-M8X1.25X55,HX/FL-YSCR-M8X1.25X55,HX/FL-Y
-
37518450 SCR-HXFL-M8X1.25X20 8.8 ZY3 NYSCR-HXFL-M8X1.25X20 8.8 ZY3 NY
-
47547317 NUT-M8X1.25,HXFLG,NYLON INSNUT-M8X1.25,HXFLG,NYLON INS
-
55263402-329 BRKT-CAB SUPPORT,FRONT,LH,BLKBRKT-CAB SUPPORT,FRONT,LH,BLK
-
65263403-329 BRKT-CAB SUPPORT,FRONT,RH,BLKBRKT-CAB SUPPORT,FRONT,RH,BLK
