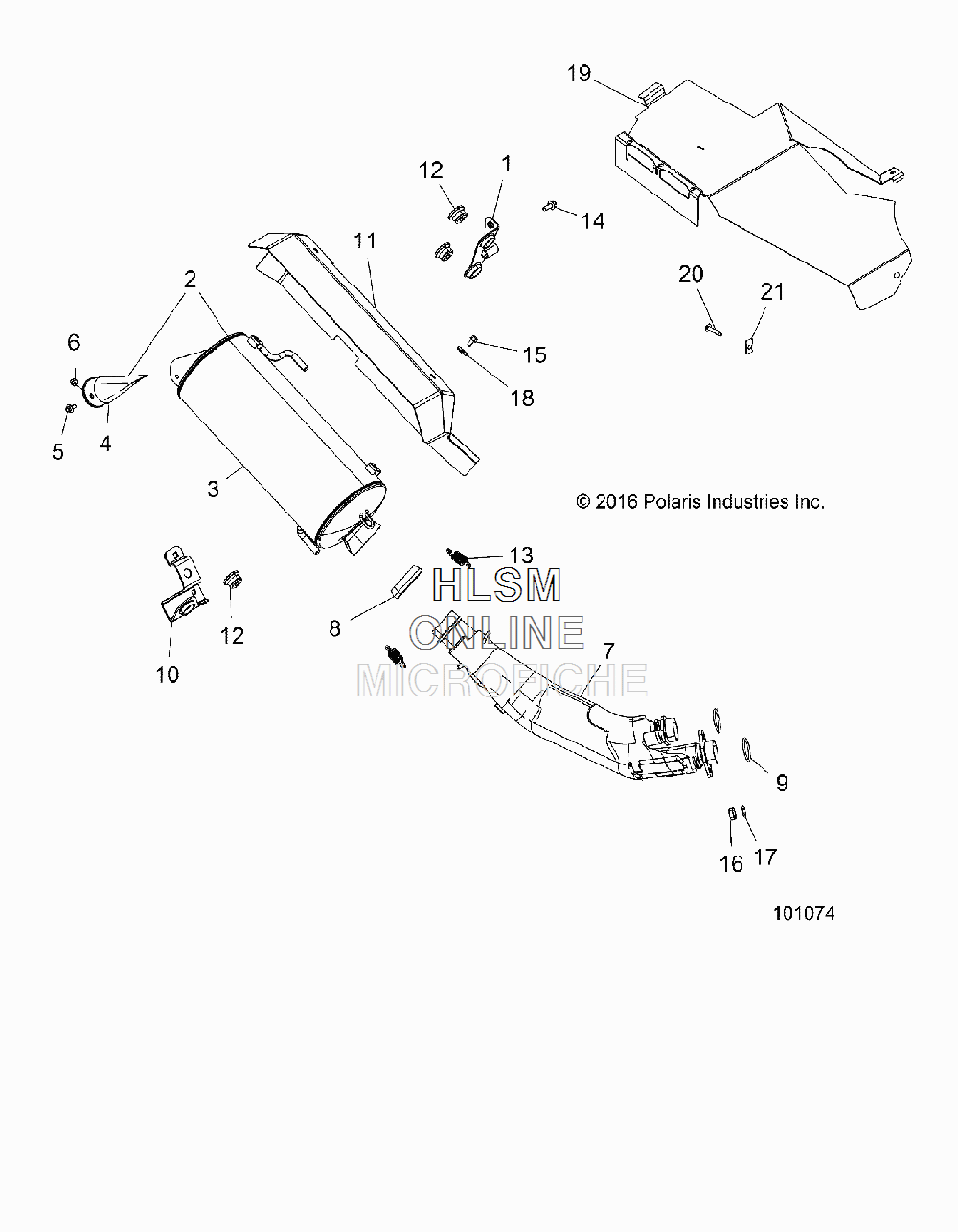

EXHAUST SYSTEM для Polaris SPORTSMAN 1000 XP MD STEALTH BLACK [A17SXE95NL] - 2017 года выпуска
-
№АртикулНазвание
-
11022584-067 WELD-SUPPORT,EXHAUST,BLKWELD-SUPPORT,EXHAUST,BLK
-
21262925 ASM-SILENCERASM-SILENCER
-
31262926-489 WELD-SILENCER,BLKWELD-SILENCER,BLK
-
41262123 WELD-SPARK ARRESTOR,AVA875WELD-SPARK ARRESTOR,AVA875
-
57517257 SCR-HXFL-M6X1.0X12 10.9 ZPCSCR-HXFL-M6X1.0X12 10.9 ZPC
-
67547120 NUT-HEXHD,M6,DIN980V,0600100NUT-HEXHD,M6,DIN980V,0600100
-
71262934 ASM-EXHAUST,PIPE,1000ASM-EXHAUST,PIPE,1000
-
83610204 SEAL-EXHAUSTSEAL-EXHAUST
-
95257995 GASKET-EXHAUST SEALINGGASKET-EXHAUST SEALING
-
105262915-067 BRKT-EXHAUST,LOWER,SUPPORT,BLKBRKT-EXHAUST,LOWER,SUPPORT,BLK
-
115262918 SHIELD-EXHAUSTSHIELD-EXHAUST
-
125415785 ISOLATOR-EXHAUST,HANGERISOLATOR-EXHAUST,HANGER
-
137043727 SPRING-EXHAUST S.S. SHOTPEENEDSPRING-EXHAUST S.S. SHOTPEENED
-
147518555 BOLT-M8X1.25X20,HXFLGBOLT-M8X1.25X20,HXFLG
-
157518490 SCR-1/4-20X1/2,TFM HW-MSCR-1/4-20X1/2,TFM HW-M
-
167547076 NUT-HEX-M8X1.25 8 ZPB.NUT-HEX-M8X1.25 8 ZPB.
-
177556111 WASHER-LOCK M8X12.7ODX2MM ZY3WASHER-LOCK M8X12.7ODX2MM ZY3
-
187555935 WASHER-.28 X .81 X .06, ST-MWASHER-.28 X .81 X .06, ST-M
-
195263705 SHIELD-FENDERSHIELD-FENDER
-
207519001 SCR-M6X1X40,TR/TX-BLKSCR-M6X1X40,TR/TX-BLK
-
217547366 CLIP-"U",M6.0X1.0CLIP-"U",M6.0X1.0
