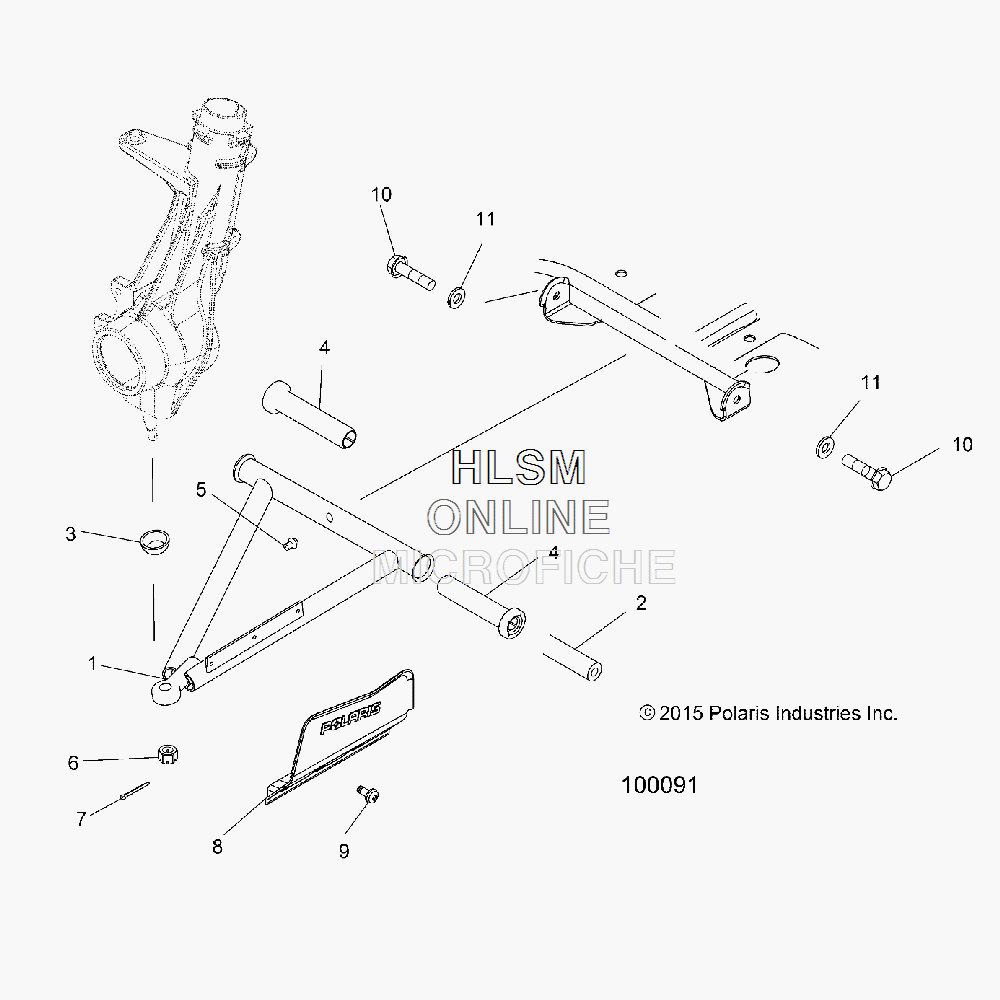

A-ARMS- MID DRIVE для Polaris SPORTSMAN 570 6X6 [A17S6E57A1] - 2017 года выпуска
-
№АртикулНазвание
-
11542161-067 WELD-A-FRAME,FLARED,LEFT BLACKWELD-A-FRAME,FLARED,LEFT BLACK
-
11542162-067 WELD-A-FRAME,FLARED, RIGHT BLACKWELD-A-FRAME,FLARED, RIGHT BLACK
-
25139929 SHAFT-A-ARM,C-BORESHAFT-A-ARM,C-BORE
-
35412658 BOOT, BALL JOINT, GREASELESSBOOT, BALL JOINT, GREASELESS
-
45436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
57080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
67542438 NUT, CASTLENUT, CASTLE
-
77661203 PIN, COTTERPIN, COTTER
-
85435028-070 SHIELD, CV FRONT, BLACK, LEFTSHIELD, CV FRONT, BLACK, LEFT
-
85435029-070 SHIELD, CV FRONT, BLACK, RIGHTSHIELD, CV FRONT, BLACK, RIGHT
-
97512084 SCREWSCREW
-
107520340 SCREWSCREW
-
117556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
