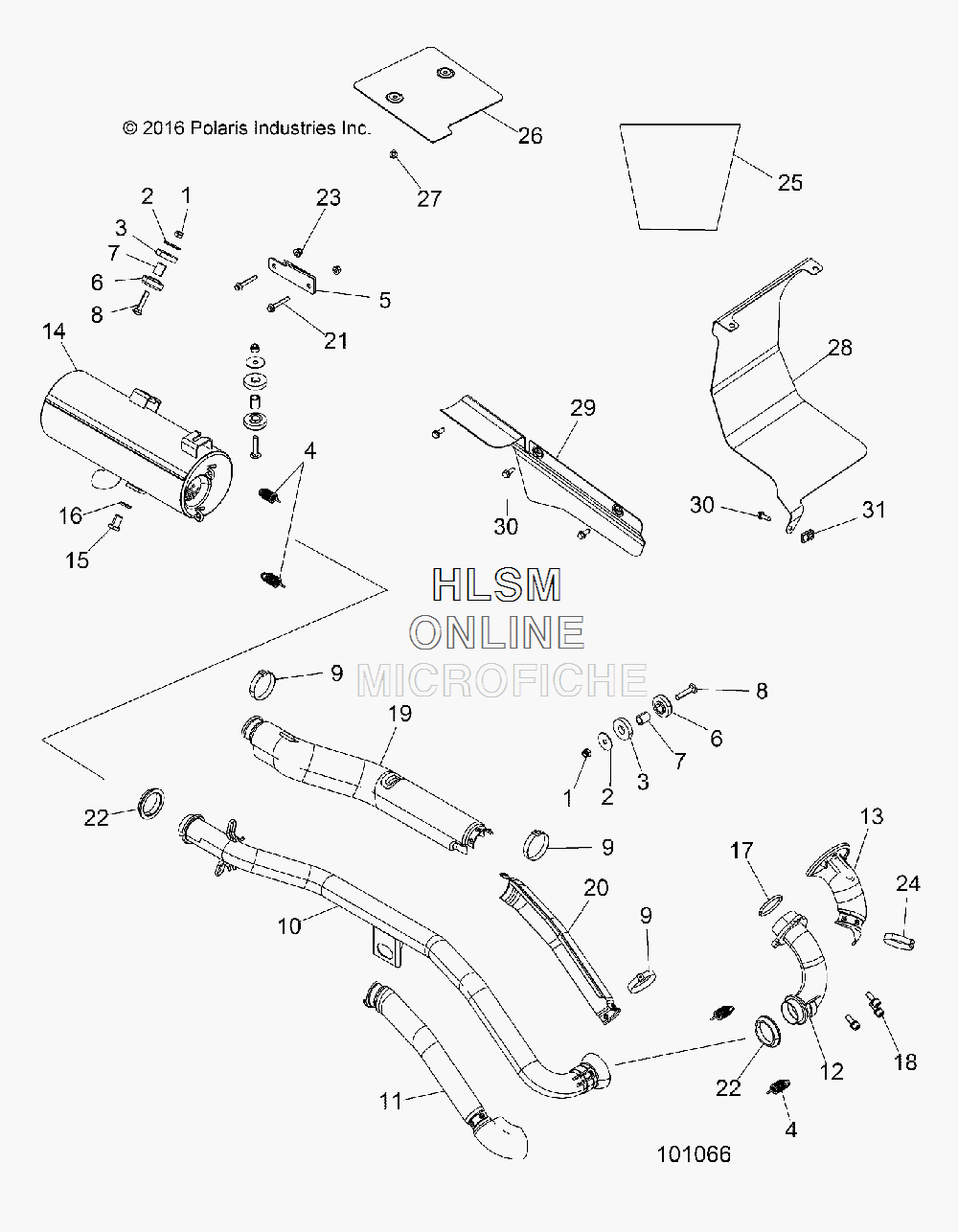

EXHAUST SYSTEM для Polaris SPORTSMAN 570 6X6 [A17S6E57A1] - 2017 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35414945 WASHER, RUBBERWASHER, RUBBER
-
47041804 SPRINGSPRING
-
55241663 BRACKET, SILENCER, FRAMEBRACKET, SILENCER, FRAME
-
65414946 DAMPENER, VIBRATIONDAMPENER, VIBRATION
-
75010192 BUSHINGBUSHING
-
87515316 BOLTBOLT
-
97080560 CLAMP-HOSE, 1.750-SSCLAMP-HOSE, 1.750-SS
-
101262917 ASM-EXHAUST PIPE,570 EFI,SS [INCL. 9,10,11,19,20]ASM-EXHAUST PIPE,570 EFI,SS [INCL. 9,10,11,19,20]
-
115260801 SHIELD-HEAT,EXHAUST,MIDSHIELD-HEAT,EXHAUST,MID
-
121262376 MANIFOLDMANIFOLD
-
135260800 SHIELD-HEAT,EXHAUST HEADPIPESHIELD-HEAT,EXHAUST HEADPIPE
-
141262445-489 SILENCER,EXHAUST, POWDER BLACKSILENCER,EXHAUST, POWDER BLACK
-
157512666 BOLTBOLT
-
167556230 WASHER, CLEAN OUTWASHER, CLEAN OUT
-
175253989 GASKET, EXHAUST SEALINGGASKET, EXHAUST SEALING
-
187517555 SCREWSCREW
-
195260802 SHIELD-HEAT,EXHAUST,REARSHIELD-HEAT,EXHAUST,REAR
-
205260808 SHIELD-HEAT,EXHAUST MID,INNERSHIELD-HEAT,EXHAUST MID,INNER
-
217518341 BOLTBOLT
-
225256385 SEAL, EXHAUSTSEAL, EXHAUST
-
237542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
247082132 CLAMP-45.0DX7W,304SS,OETIKERCLAMP-45.0DX7W,304SS,OETIKER
-
255814363 FOIL, FRAME, SUPPORT [TO 8/15/16]FOIL, FRAME, SUPPORT [TO 8/15/16]
-
265262291 SHIELD-EXHAUST,BOX,6X6SHIELD-EXHAUST,BOX,6X6
-
277512232 SCREW-1/4-20X3/4-TAP/R-YSCREW-1/4-20X3/4-TAP/R-Y
-
285262925 SHIELD-FUEL TANK,FRAME MNT,TRG [FROM 8/15/16]SHIELD-FUEL TANK,FRAME MNT,TRG [FROM 8/15/16]
-
295263227 SHIELD-HEAT,AIRBOX [FROM 8/15/16]SHIELD-HEAT,AIRBOX [FROM 8/15/16]
-
307517386 SCR-1/4-20X5/8,TAP/R-YSCR-1/4-20X5/8,TAP/R-Y
-
317670096 NUT-CHIMNEY 1/4-20,GR-5NUT-CHIMNEY 1/4-20,GR-5
