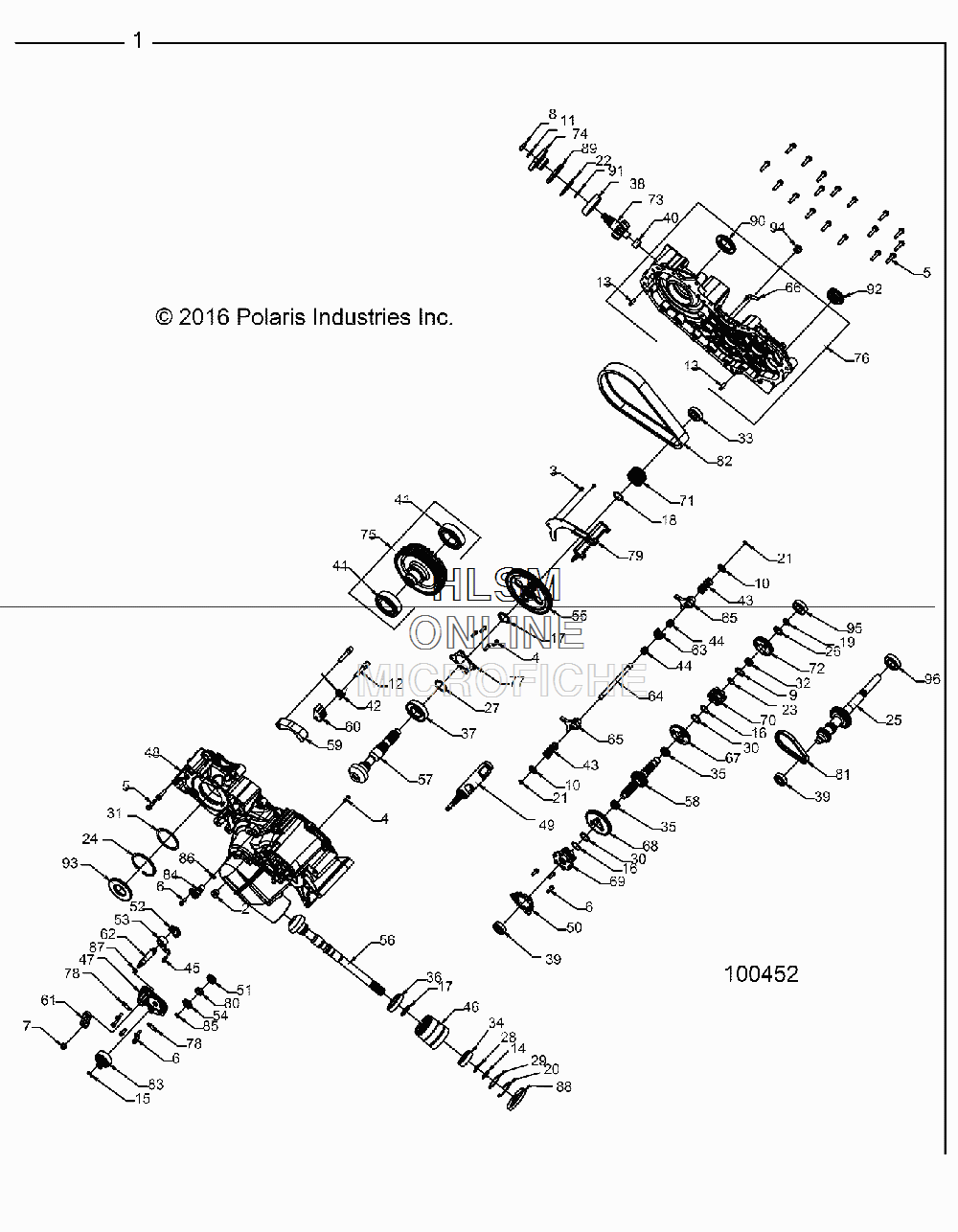

GEARCASE для Polaris SPORTSMAN 570 6X6 [A17S6E57A1] - 2017 года выпуска
-
№АртикулНазвание
-
11333498 ASM-TRANSMISSION,PDS,6X6 [INCL. ALL]ASM-TRANSMISSION,PDS,6X6 [INCL. ALL]
-
23233794 PLUG, 3/4-16 HOLLOW HEXPLUG, 3/4-16 HOLLOW HEX
-
33233749 SCREW, TAPPING TORX PH 8-32 X.50SCREW, TAPPING TORX PH 8-32 X.50
-
43234086 SCREW, TORX PAN HD 1/4-20 X 0.75SCREW, TORX PAN HD 1/4-20 X 0.75
-
53234114 SCREW, TAPPING HEX WASHER HD 5/16-18 X 1.25SCREW, TAPPING HEX WASHER HD 5/16-18 X 1.25
-
63234247 SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75SCREW, TAPPING HEX WASHER HD 1/4-20 X 0.75
-
73233961 NUT, LOCK HEX FLANGE NYLON 5/16-24NUT, LOCK HEX FLANGE NYLON 5/16-24
-
83234776 NUT, HEX M16 X 2.0NUT, HEX M16 X 2.0
-
93233855 WASHER 1.250 X .876 X .05WASHER 1.250 X .876 X .05
-
103234091 WASHERWASHER
-
113234777 CUP WASHER, LOCKING 17 X 30CUP WASHER, LOCKING 17 X 30
-
123233432 PINPIN
-
133233247 PIN 5/16 X1.00PIN 5/16 X1.00
-
143233106 RING, RETAINING BASIC EXTERNAL .984RING, RETAINING BASIC EXTERNAL .984
-
153233834 RING SNAPRING SNAP
-
163233306 RING, RETAININGRING, RETAINING
-
173233364 RING, RETAINING SHAFT, DIA. 1.375RING, RETAINING SHAFT, DIA. 1.375
-
183233699 RING RTNG, IRR 7200-118RING RTNG, IRR 7200-118
-
193234067 RING, RETAINING BASIC EXTERNAL, .787 SHAFTRING, RETAINING BASIC EXTERNAL, .787 SHAFT
-
203234269 RING, RETAINING BASIC INTERNAL 2.047RING, RETAINING BASIC INTERNAL 2.047
-
213234090 RING, RETAINING BASIC EXTERNAL .428RING, RETAINING BASIC EXTERNAL .428
-
223234158 RING, RETAINING BEVELED INTERNAL 2.835RING, RETAINING BEVELED INTERNAL 2.835
-
233234336 RING, RETAINING BASIC EXTERNAL DIA .84RING, RETAINING BASIC EXTERNAL DIA .84
-
243235849 RING, RETAINING INTERNAL DHO-85 STZDRING, RETAINING INTERNAL DHO-85 STZD
-
253235782 SHAFT, INPUT-39T REM BOSSSHAFT, INPUT-39T REM BOSS
-
263233176 WASHER THRUST 1.270 X .793 X 0.065WASHER THRUST 1.270 X .793 X 0.065
-
273233611 SHIM 1.700 X 1.385SHIM 1.700 X 1.385
-
283234272 SHIM 1.180 OD X .995 IDSHIM 1.180 OD X .995 ID
-
293234273 SHIM 2.040 OD X 1.63 IDSHIM 2.040 OD X 1.63 ID
-
303234248 WASHER, THRUST 1.300 X .995 X 0.065WASHER, THRUST 1.300 X .995 X 0.065
-
313235850 SHIM 2.750 X 3.3125 X .050SHIM 2.750 X 3.3125 X .050
-
323233009 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
333233018 BEARING, BALL 6204 C3 20X47X14BEARING, BALL 6204 C3 20X47X14
-
343233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
353233103 BEARING, NEEDLE 25 X 29 X 10BEARING, NEEDLE 25 X 29 X 10
-
363233265 BEARING, BALL 6007 C3 35X62X14BEARING, BALL 6007 C3 35X62X14
-
373234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
383233714 BEARING, BALL 6306 STD 30X72X19BEARING, BALL 6306 STD 30X72X19
-
393234274 BEARING, BALL 6203 C3 17X40X12BEARING, BALL 6203 C3 17X40X12
-
403234799 BEARING, NEEDLE, DRAWN SHELL .75 X 1 X 0.625BEARING, NEEDLE, DRAWN SHELL .75 X 1 X 0.625
-
413235851 BEARING, BALL DOUBLE ROW 45 X 85 X 23 4209 C3BEARING, BALL DOUBLE ROW 45 X 85 X 23 4209 C3
-
423233431 TORSION SPRINGTORSION SPRING
-
433234078 SPRING, COMPRESSION .92 O.D. X 2.000SPRING, COMPRESSION .92 O.D. X 2.000
-
443234089 SPRING, COMPRESSION .46 I.D. X .73SPRING, COMPRESSION .46 I.D. X .73
-
453234578 SPRING, COMPRESSION DETENTSPRING, COMPRESSION DETENT
-
463234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
473234188 COVER, SECTOR GEARS MACHCOVER, SECTOR GEARS MACH
-
483235852 CASE, RH MACHCASE, RH MACH
-
493234360 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
503233915 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
513233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
523233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
533233829 PAWL, DETENTPAWL, DETENT
-
543233909 STAR, DETENTSTAR, DETENT
-
553234062 GEAR OUTPUT 91T, HCRGEAR OUTPUT 91T, HCR
-
563234262 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
573234263 PINION, 13T CENTER DRIVEPINION, 13T CENTER DRIVE
-
583234071 SHAFT, REVERSE 26TSHAFT, REVERSE 26T
-
593233433 SHOE, CHAIN TENSIONERSHOE, CHAIN TENSIONER
-
603233434 CAM, CHAIN TENSIONERCAM, CHAIN TENSIONER
-
613234232 BELLCRANK .510 HOLE, 92 ~BELLCRANK .510 HOLE, 92 ~
-
623233831 SHAFT, SHIFTSHAFT, SHIFT
-
633234073 COLLAR, SHIFTCOLLAR, SHIFT
-
643234079 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
653234077 FORK, SHIFTFORK, SHIFT
-
663234230 TUBE, VENT 90 -1/4" HOSETUBE, VENT 90 -1/4" HOSE
-
673233854 SPROCKET 38T 6-FACESPROCKET 38T 6-FACE
-
683233852 GEAR, 33T 6-FACEGEAR, 33T 6-FACE
-
693234257 DOG, L/PDOG, L/P
-
703234258 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
713234441 SPROCKET, 19T, 1.25"SPROCKET, 19T, 1.25"
-
723235783 GEAR, HELICAL-35TGEAR, HELICAL-35T
-
733235855 SHAFT-PINION,10T,STRAIGHTBEVELSHAFT-PINION,10T,STRAIGHTBEVEL
-
743235925 COUPLERCOUPLER
-
773234063 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
783235350 BRACKET WIRE HARNESSBRACKET WIRE HARNESS
-
793234061 DEFLECTOR, OILDEFLECTOR, OIL
-
803235243 SPACERSPACER
-
813234264 CHAIN .25P X .40W X 50LCHAIN .25P X .40W X 50L
-
823234442 CHAIN SILENT 3/8" X 1.25" X 86PCHAIN SILENT 3/8" X 1.25" X 86P
-
837661999 SWITCH, ROTARY 2 PIN RESISTIVESWITCH, ROTARY 2 PIN RESISTIVE
-
844013908 SENSOR SPEEDSENSOR SPEED
-
853233076 O-RING, 2-012O-RING, 2-012
-
863234302 O-RING, -113O-RING, -113
-
873233869 O-RING, -014O-RING, -014
-
883234113 SEAL, TRIPLE LIP 25 X 80 X 10SEAL, TRIPLE LIP 25 X 80 X 10
-
893235924 SEAL, TRIPLE LIP, 40 X 72 X 7SEAL, TRIPLE LIP, 40 X 72 X 7
-
903234300 SEAL, TRIPLE LIP 40X70X7SEAL, TRIPLE LIP 40X70X7
-
913234785 O-RING 2-023 NITRILEO-RING 2-023 NITRILE
-
923234851 SEAL, TRIPLE LIP 25 X 47 VITONSEAL, TRIPLE LIP 25 X 47 VITON
-
933235856 SEAL, TRIPLE LIP 40 X 85 X 7SEAL, TRIPLE LIP 40 X 85 X 7
-
943233794 PLUG, 3/4-16 HOLLOW HEXPLUG, 3/4-16 HOLLOW HEX
-
953235969 BEARING-BALL,6204 C3,20X47X14BEARING-BALL,6204 C3,20X47X14
-
963235585 BEARING-BALL 6205R25X52X15BEARING-BALL 6205R25X52X15
