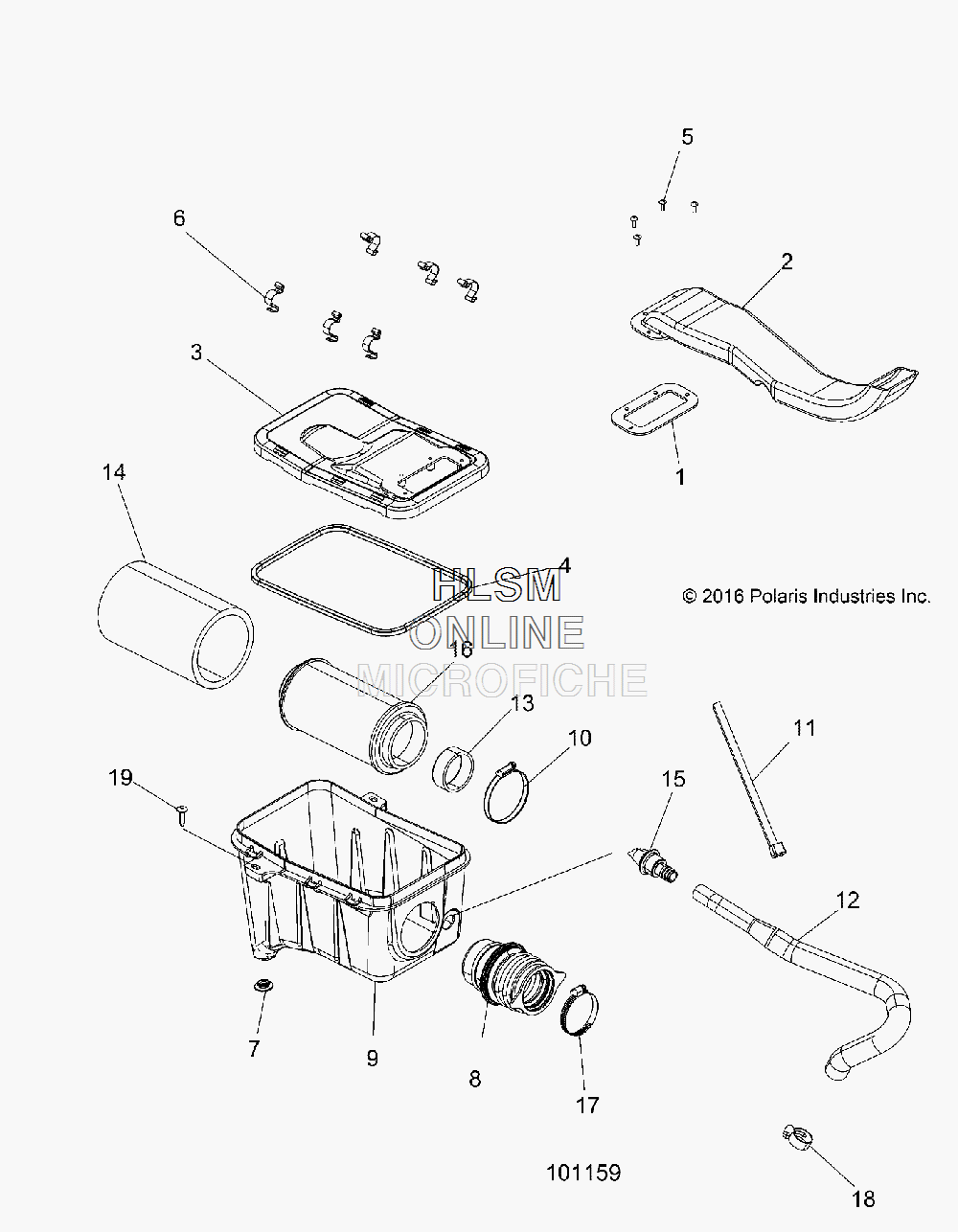

AIR INTAKE SYSTEM для Polaris SPORTSMAN 570 6X6 [A17S6E57A1] - 2017 года выпуска
-
№АртикулНазвание
-
15411422 GASKET, INTAKEGASKET, INTAKE
-
25450580 DUCT, AIR INLETDUCT, AIR INLET
-
35450388 COVER, AIR BOXCOVER, AIR BOX
-
45813949 SEAL, AIRBOX COVERSEAL, AIRBOX COVER
-
57517317 SCREWSCREW
-
65242044 CLIP, AIR BOXCLIP, AIR BOX
-
75412981 PLUG, COMPARTMENTPLUG, COMPARTMENT
-
85414638 BOOT, INTAKEBOOT, INTAKE
-
95450387 BOX, AIR INTAKEBOX, AIR INTAKE
-
107080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
117080761 STRAPSTRAP
-
125415276 HOSE, BREATHERHOSE, BREATHER
-
135433847 SLEEVE, CARB, INNERSLEEVE, CARB, INNER
-
145811633 FILTER, PRECLEANER SLEEVEFILTER, PRECLEANER SLEEVE
-
157052577 VALVE, BREATHERVALVE, BREATHER
-
167082101 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
177080413 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
187081174 CLAMP, HOSECLAMP, HOSE
-
197517685 SCREWSCREW
