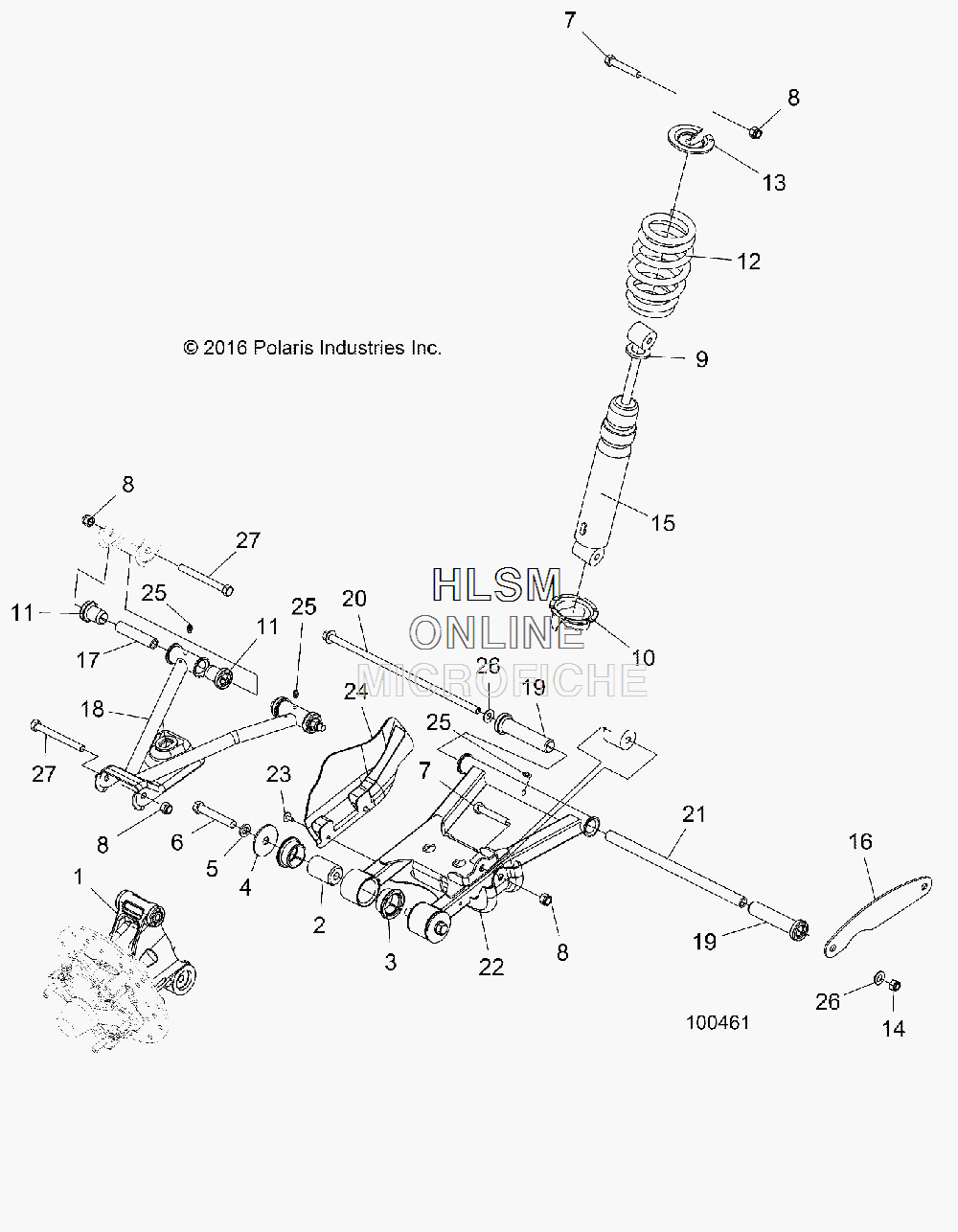

SUSPENSION - REAR для Polaris SPORTSMAN 570 6X6 [A17S6E57A1] - 2017 года выпуска
-
№АртикулНазвание
-
15139363 CARRIER, BEARING, WHEEL LEFTCARRIER, BEARING, WHEEL LEFT
-
15137436 CARRIER-BEARING,WHEEL RIGHTCARRIER-BEARING,WHEEL RIGHT
-
25632291 BUSHING, BEARING CARRIERBUSHING, BEARING CARRIER
-
35438902 BUSHING, CONTROL, LOWER, BLACKBUSHING, CONTROL, LOWER, BLACK
-
47555740 WASHER, FLATWASHER, FLAT
-
57552614 WASHER, LOCKWASHER, LOCK
-
67517873 BOLTBOLT
-
77515415 SCREWSCREW
-
87542439 NUT, NYLOKNUT, NYLOK
-
97043451 SHOCK-RR,IRS,6X6SHOCK-RR,IRS,6X6
-
105631014 CAM-SPRING ADJUST,1-3/8CAM-SPRING ADJUST,1-3/8
-
115438895 BUSHING, A-ARM, SHORT, BLACKBUSHING, A-ARM, SHORT, BLACK
-
127041986-067 SPRING-COMP,130/165,13.8LGSPRING-COMP,130/165,13.8LG
-
135251753 RETAINER, SPRINGRETAINER, SPRING
-
147547344 NUT-3/8-24 HEX LOC,GR8NUT-3/8-24 HEX LOC,GR8
-
155433551 SLEEVE-SHOCK PROTECTORSLEEVE-SHOCK PROTECTOR
-
165252941-067 STRAP-REAR GEARCASE,6X6,BLKSTRAP-REAR GEARCASE,6X6,BLK
-
175020826 SHAFT, A-ARM, SHORTSHAFT, A-ARM, SHORT
-
181014320-067 WELD-UPPER CONTROL ARM, LEFT BLACKWELD-UPPER CONTROL ARM, LEFT BLACK
-
181014321-067 WELD-UPPER CONTROL ARM,RIGHT BLACKWELD-UPPER CONTROL ARM,RIGHT BLACK
-
195436973 BUSHING, A-ARM, LONGBUSHING, A-ARM, LONG
-
207519065 SCR-3/8-24X12.25 FLG HX GR8-YSCR-3/8-24X12.25 FLG HX GR8-Y
-
215137562 TUBE-PIVOT,.625ODX.385IDX11.12TUBE-PIVOT,.625ODX.385IDX11.12
-
221015888-067 CONTROL, LOWER, BLACK, LEFTCONTROL, LOWER, BLACK, LEFT
-
221015889-067 CONTROL, LOWER, BLACK, RIGHTCONTROL, LOWER, BLACK, RIGHT
-
237512084 SCREWSCREW
-
245435008-070 SHIELD, CV REAR, BLACK, LEFTSHIELD, CV REAR, BLACK, LEFT
-
245435009-070 SHIELD, CV REAR, BLACK, RIGHTSHIELD, CV REAR, BLACK, RIGHT
-
257080433 FITTING, LUBRICATIONFITTING, LUBRICATION
-
267556153 WASHERWASHER
-
277515472 BOLTBOLT
