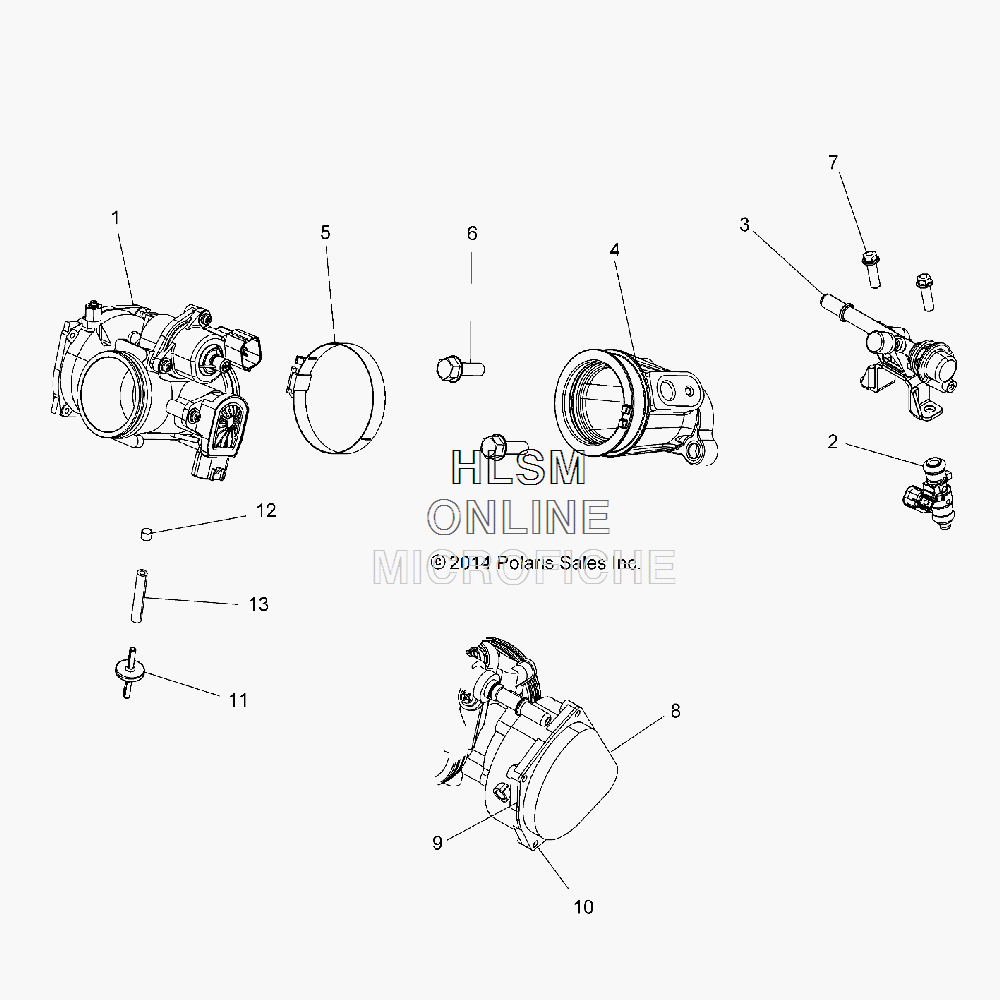

THROTTLE BODY W/ FUEL RAIL для Polaris SPORTSMAN 570 6X6 [A17S6E57A1] - 2017 года выпуска
-
№АртикулНазвание
-
11205009 ASM., THROTTLE BODYASM., THROTTLE BODY
-
22521068 INJECTOR, FUELINJECTOR, FUEL
-
32521403 RAIL, FUELRAIL, FUEL
-
45415524 ADAPTER, THROTTLE BODYADAPTER, THROTTLE BODY
-
57081623 CLAMP, HOSECLAMP, HOSE
-
67516734 SCREWSCREW
-
77518576 SCREWSCREW
-
85259059 COVER-THROTTLE BODYCOVER-THROTTLE BODY
-
95415104 GASKET-TB HOUSINGGASKET-TB HOUSING
-
107519292 SCREWSCREW
-
117052038 CHECK VALVECHECK VALVE
-
127080307 CLAMP, HOSECLAMP, HOSE
-
138450003-55 FUEL LINEFUEL LINE
