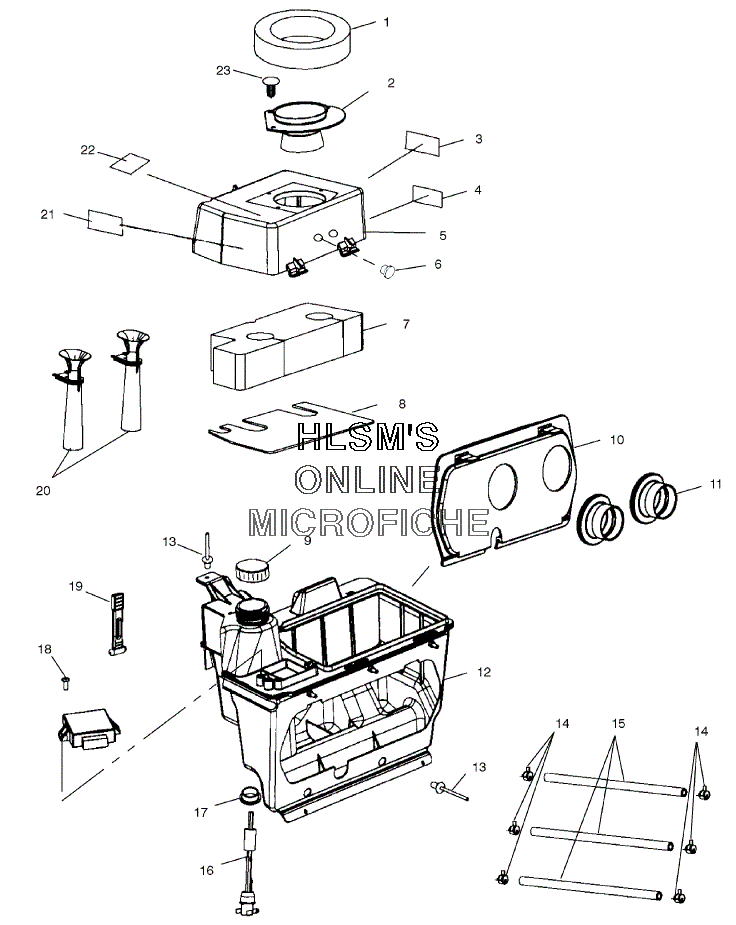

AIR BOX для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска
-
№АртикулНазвание
-
15811882 FOAM, AIRBOX CHIMNEY EDGEFOAM, AIRBOX CHIMNEY EDGE
-
25433664 DUCT, AIR INLETDUCT, AIR INLET
-
37073820 DECAL, ADJUSTER DRIVEN CLUTCHDECAL, ADJUSTER DRIVEN CLUTCH
-
47073426 DECAL, GREASINGDECAL, GREASING
-
55433766 COVER, AIRBOX FORWARD POSTCOVER, AIRBOX FORWARD POST
-
65410012 PLUG, RUBBER HOLE (.5DIA)PLUG, RUBBER HOLE (.5DIA)
-
75811979 FOAM, AIRBOX PLATEFOAM, AIRBOX PLATE
-
85433765 PLATE, INT. EDGE FORWARD POSTPLATE, INT. EDGE FORWARD POST
-
92511287 CAP OIL, VENTED (CUSTOM COLOR)CAP OIL, VENTED (CUSTOM COLOR)
-
105433639 PLATE, CARBURETOR ADAPTORPLATE, CARBURETOR ADAPTOR
-
115411840 BOOT, CARBURETOR 440 FAN EDGEBOOT, CARBURETOR 440 FAN EDGE
-
121261073 OIL/AIRBOX, WELD MOD F/COIL/AIRBOX, WELD MOD F/C
-
137621472 RIVETRIVET
-
147080307 CLAMPCLAMP
-
158450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
164010224 FITTING, OIL SENDERFITTING, OIL SENDER
-
177052247 GROMMET, OIL SENDERGROMMET, OIL SENDER
-
187512095 SCREWSCREW
-
195433150 STRAP, RUBBERSTRAP, RUBBER
-
205433662 TUBE, INTAKE (OUTER)TUBE, INTAKE (OUTER)
-
217078317 DECAL, FUEL SHUT OFFDECAL, FUEL SHUT OFF
-
227075351 DECAL, CAUTION AIRBOXDECAL, CAUTION AIRBOX
-
237670090 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
