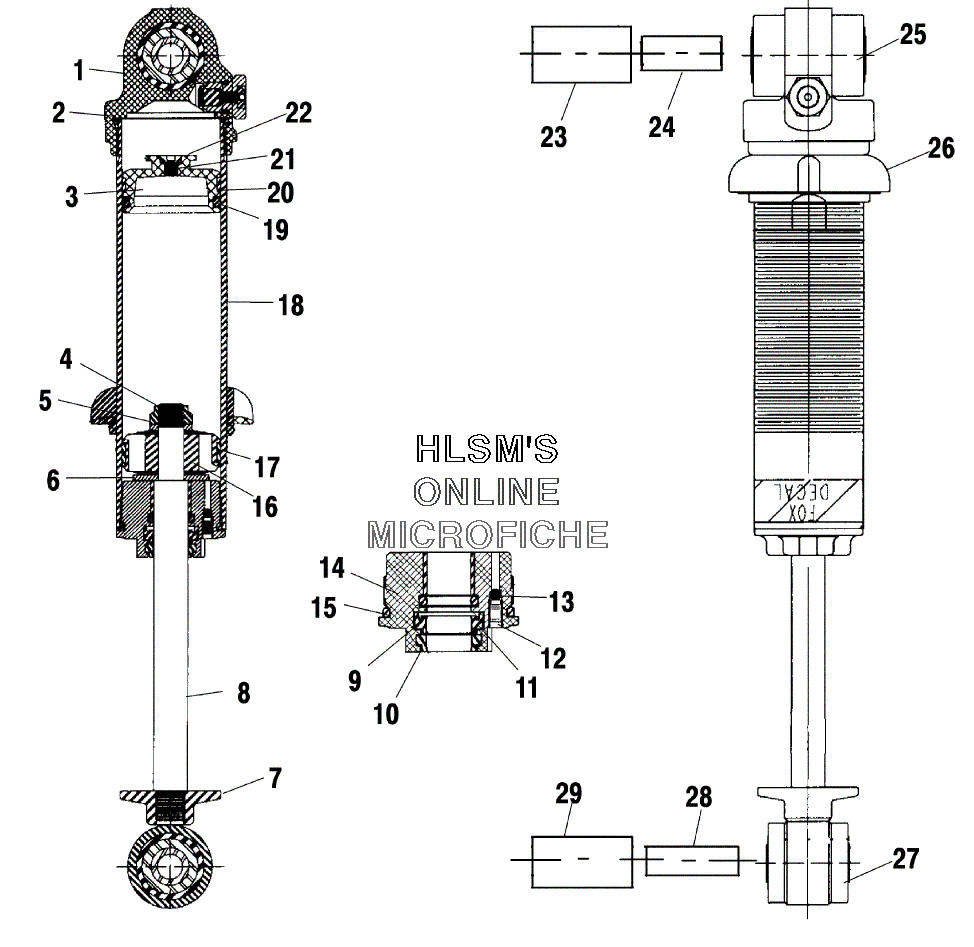

SUSPENSION - FOX SHOCK - FRONT TRACK для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска
-
№АртикулНазвание
-
87041907 SHOCK, TRACK (FRONT)SHOCK, TRACK (FRONT)
-
11500315 CAP, BODY ASSY.CAP, BODY ASSY.
-
21500108 O-RINGO-RING
-
31500187 PISTON, FLOATINGPISTON, FLOATING
-
41500016 NUT, LOCKNUT, LOCK
-
51500015 BUSHING, BACKUPBUSHING, BACKUP
-
61500017 PLATE (TOP/OUTER)PLATE (TOP/OUTER)
-
71500164 EYELET, BASEEYELET, BASE
-
81500321 SHAFTSHAFT
-
91500266 U-CUP, URETHANE (036-01-006)U-CUP, URETHANE (036-01-006)
-
101500268 SEAL, WIPER URETHANESEAL, WIPER URETHANE
-
111500021 O-RING (INNER)O-RING (INNER)
-
121500070 SCREWSCREW
-
131500071 BALLBALL
-
141500186 BEARING ASSY.BEARING ASSY.
-
151500020 O-RINGO-RING
-
162200618 VALVE PISTON KITVALVE PISTON KIT
-
171500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
181500318 BODY, THREADED (6.15 TLG, 4.7)BODY, THREADED (6.15 TLG, 4.7)
-
191500003 O-RING, ENDCAPO-RING, ENDCAP
-
201500006 RING, PISTON FLOATINGRING, PISTON FLOATING
-
211500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
221500018 SCREWSCREW
-
231500312 SLEEVE (.56X.81X1.68)SLEEVE (.56X.81X1.68)
-
245333906 SLEEVE (.385X.560X1.72)SLEEVE (.385X.560X1.72)
-
251500308 BUSHING (.35ILG, .82TLG)BUSHING (.35ILG, .82TLG)
-
261500323 RING, PRELOAD, AL (1.8 FLG)RING, PRELOAD, AL (1.8 FLG)
-
271500309 BUSHING (.35ILG, .595TLG)BUSHING (.35ILG, .595TLG)
-
285333905 SLEEVE (.385X.560X1.24)SLEEVE (.385X.560X1.24)
-
291500310 SLEEVE (.56X.81X1.2)SLEEVE (.56X.81X1.2)
