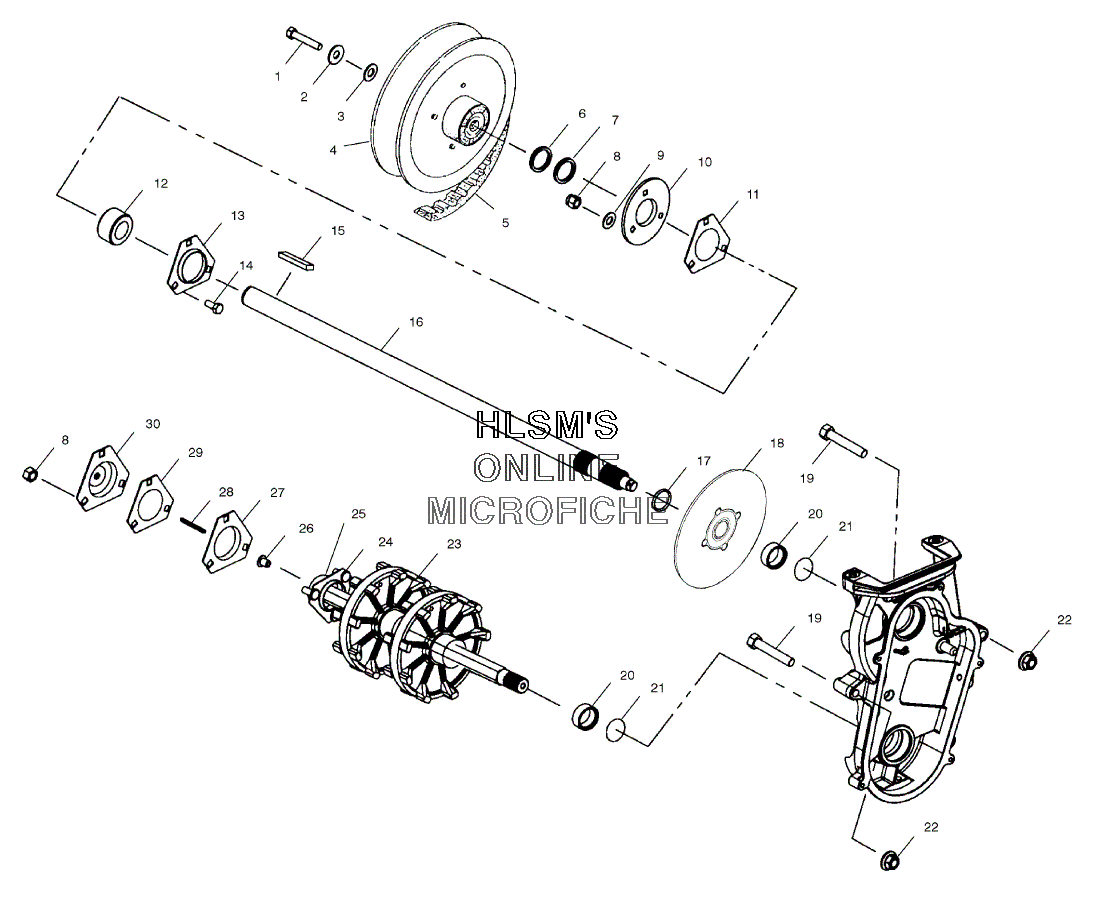

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска
-
№АртикулНазвание
-
17515301 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER (OPT)WASHER (OPT)
-
53211080 BELT, DRIVEBELT, DRIVE
-
67555864 BUSHING (OPT)BUSHING (OPT)
-
77556509 WASHER, SPECIAL (OPT)WASHER, SPECIAL (OPT)
-
87542324 NUTNUT
-
97558402 WASHER, STEELWASHER, STEEL
-
105241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
115811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
123514519 BEARING, JACKSHAFTBEARING, JACKSHAFT
-
135222751 FLANGETTEFLANGETTE
-
147512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
157721116 KEYKEY
-
161332195-067 JACKSHAFT ASSY., TUBE EXT KEY (BLACK) (INCL. 17)JACKSHAFT ASSY., TUBE EXT KEY (BLACK) (INCL. 17)
-
177710422 RING, RETAININGRING, RETAINING
-
181910403 BRAKE DISC ASSY.BRAKE DISC ASSY.
-
197515428 BOLTBOLT
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
227542423 NUTNUT
-
231590302 DRIVESHAFT ASSY. (1.06) (2DR W) (INCL. 24, 25, 26)DRIVESHAFT ASSY. (1.06) (2DR W) (INCL. 24, 25, 26)
-
241012434 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
253514525 BEARINGBEARING
-
263280019 BUSHING, METAL SPEEDOMETERBUSHING, METAL SPEEDOMETER
-
275243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
283280017 SQUARE KEY SPEEDOMETERSQUARE KEY SPEEDOMETER
-
295830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
303280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
