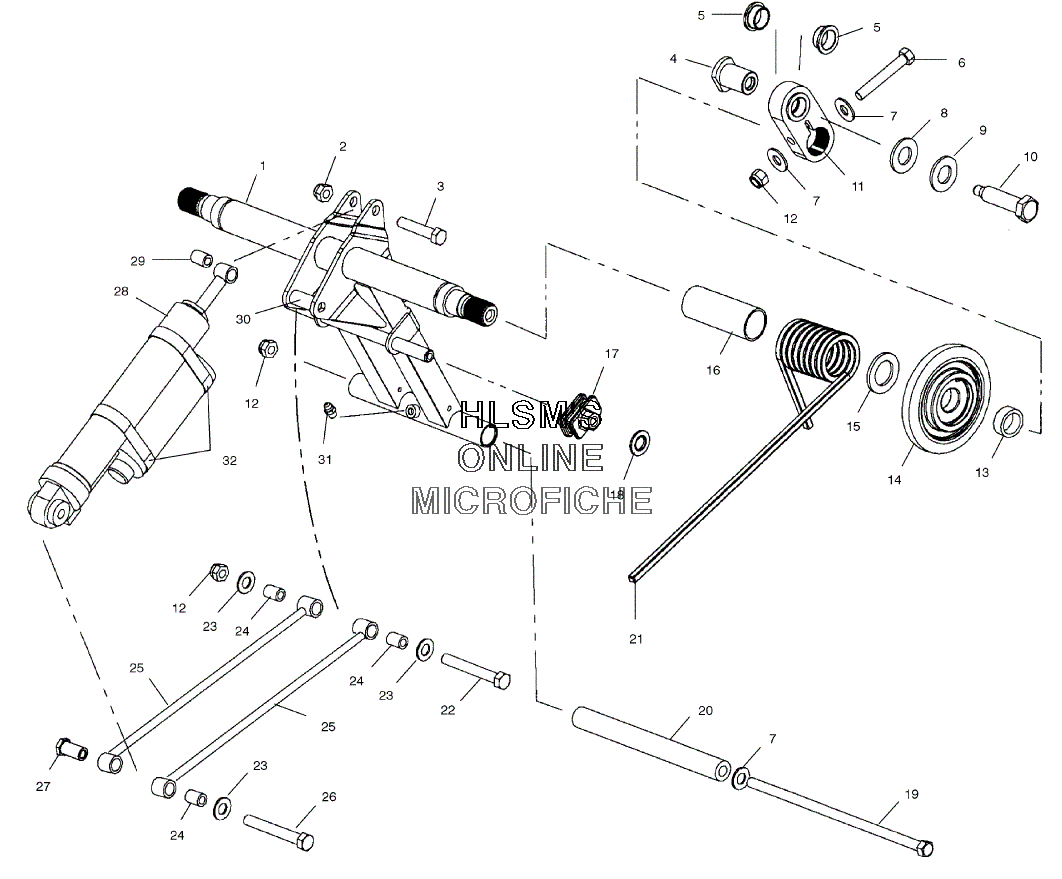

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска
-
№АртикулНазвание
-
11541433-067 TORQUE, ARM (REAR/BLACK)TORQUE, ARM (REAR/BLACK)
-
27542411 NUT, LOCKNUT, LOCK
-
37512410 BOLTBOLT
-
45333758 SHAFT, ARMSHAFT, ARM
-
53514331 BUSHING, ARMBUSHING, ARM
-
67515415 BOLTBOLT
-
77555806 WASHER, FLATWASHER, FLAT
-
87555893 WASHER, FLATWASHER, FLAT
-
97552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
107517435 BOLTBOLT
-
111541461 ARM ASSY. (INCL. 5)ARM ASSY. (INCL. 5)
-
127542439 NUT, NYLOKNUT, NYLOK
-
135132388 SPACER, WHEELSPACER, WHEEL
-
141590278 WHEEL ASSY., PLAIN (BLACK)WHEEL ASSY., PLAIN (BLACK)
-
157555787 WASHER, REVERSEWASHER, REVERSE
-
165433007 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
175432983 ROLLER, SPRING ADJUSTER SQUARE (XTRA 10)ROLLER, SPRING ADJUSTER SQUARE (XTRA 10)
-
187080394 CLIPCLIP
-
197517232 SCREWSCREW
-
205333873 SHAFTSHAFT
-
217041629-067 SPRING, TORSION (LEFT/BLACK) (STD)SPRING, TORSION (LEFT/BLACK) (STD)
-
217041630-067 SPRING, TORSION (RIGHT/BLACK) (STD)SPRING, TORSION (RIGHT/BLACK) (STD)
-
217041627-067 SPRING, TORSION (.347SQ/77Ш) (LEFT/BLACK) (OPT)SPRING, TORSION (.347SQ/77Ш) (LEFT/BLACK) (OPT)
-
217041628-067 SPRING, TORSION, (347/77Ш) (RIGHT/BLACK) (OPT)SPRING, TORSION, (347/77Ш) (RIGHT/BLACK) (OPT)
-
217041631-067 SPRING, TORSION (.375/77Ш) (LEFT/BLACK) (OPT)SPRING, TORSION (.375/77Ш) (LEFT/BLACK) (OPT)
-
217041632-067 SPRING-TORSION (.375/77Ш) (RIGHT/BLACK) (OPT)SPRING-TORSION (.375/77Ш) (RIGHT/BLACK) (OPT)
-
217041655-067 SPRNG, TORISON (.405 SQ/77Ш) (LEFT/BLACK) (OPT)SPRNG, TORISON (.405 SQ/77Ш) (LEFT/BLACK) (OPT)
-
217041656-067 SPRNG, TORSION (.405 SQ/77Ш) (RIGHT/BLACK) (OPT)SPRNG, TORSION (.405 SQ/77Ш) (RIGHT/BLACK) (OPT)
-
227515514 BOLTBOLT
-
237555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
245132391 BUSHINGBUSHING
-
251541479-067 SHOCK ROD (12.850) (BLACK)SHOCK ROD (12.850) (BLACK)
-
267515538 BOLTBOLT
-
275132390 BUSHING, NUTBUSHING, NUT
-
287041906 SHOCK, TRACK (REAR)SHOCK, TRACK (REAR)
-
295010422 BUSHINGBUSHING
-
305333904 SPACERSPACER
-
317080424 FITTING, LUBE.FITTING, LUBE.
-
321500330 CLAMP, HOSE (3.21-3.25)CLAMP, HOSE (3.21-3.25)
