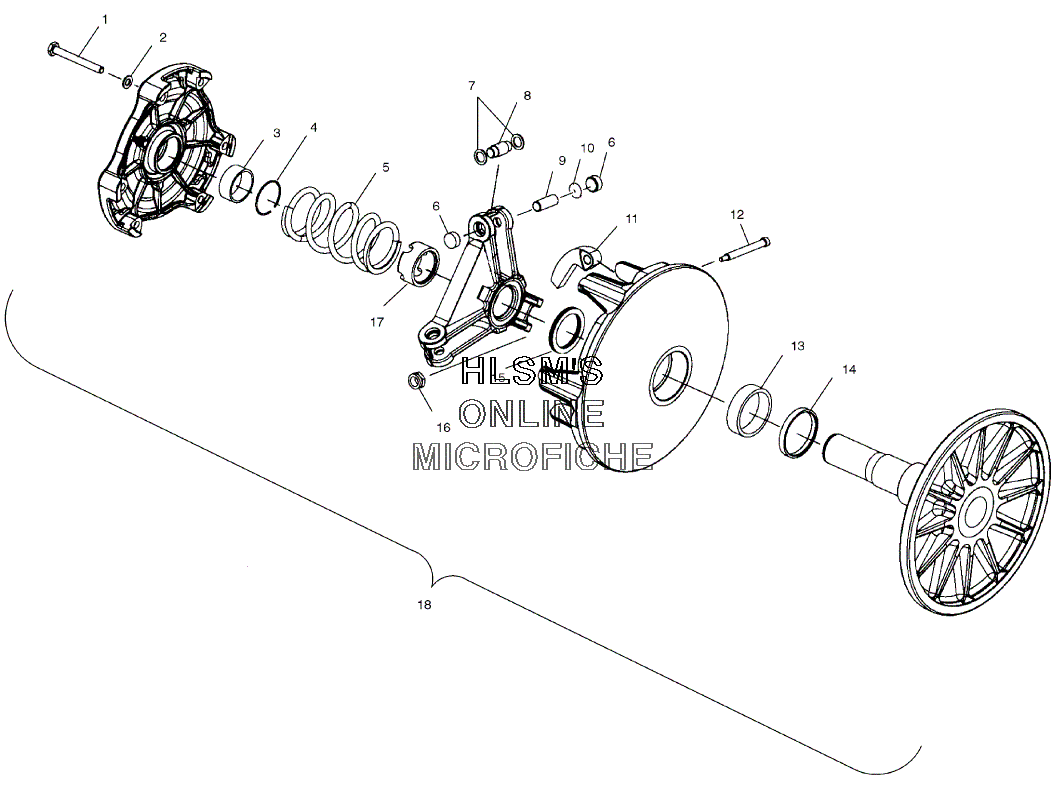

CLUTCH - DRIVE для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK, WASHERLOCK, WASHER
-
33576516 COVER, BEARINGCOVER, BEARING
-
47710417 RING, RETAINING BOLTRING, RETAINING BOLT
-
57041922 SPRING, CLUTCH (ALMOND/BLUE)SPRING, CLUTCH (ALMOND/BLUE)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95020422 PIN, ROLLERPIN, ROLLER
-
102200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
111321685 WEIGHT/BUSHING ASSY.WEIGHT/BUSHING ASSY.
-
127515105 PIN, WEIGHT HARDENEDPIN, WEIGHT HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING, RETAINERBUSHING, RETAINER
-
155210754 SPACER (.050MM) (OPT)SPACER (.050MM) (OPT)
-
155210753 SPACER (.032MM) (OPT)SPACER (.032MM) (OPT)
-
155242981 SPACER (.025MM) (OPT)SPACER (.025MM) (OPT)
-
155210752 SPACER (.020MM) (OPT)SPACER (.020MM) (OPT)
-
167541906 NUT, FLEX LOCNUT, FLEX LOC
-
175020425 NUT, JAMNUT, JAM
-
181321699 CLUTCH, DRIVE BASIC #69 (INCL. ALL LESS 5, 11)CLUTCH, DRIVE BASIC #69 (INCL. ALL LESS 5, 11)
