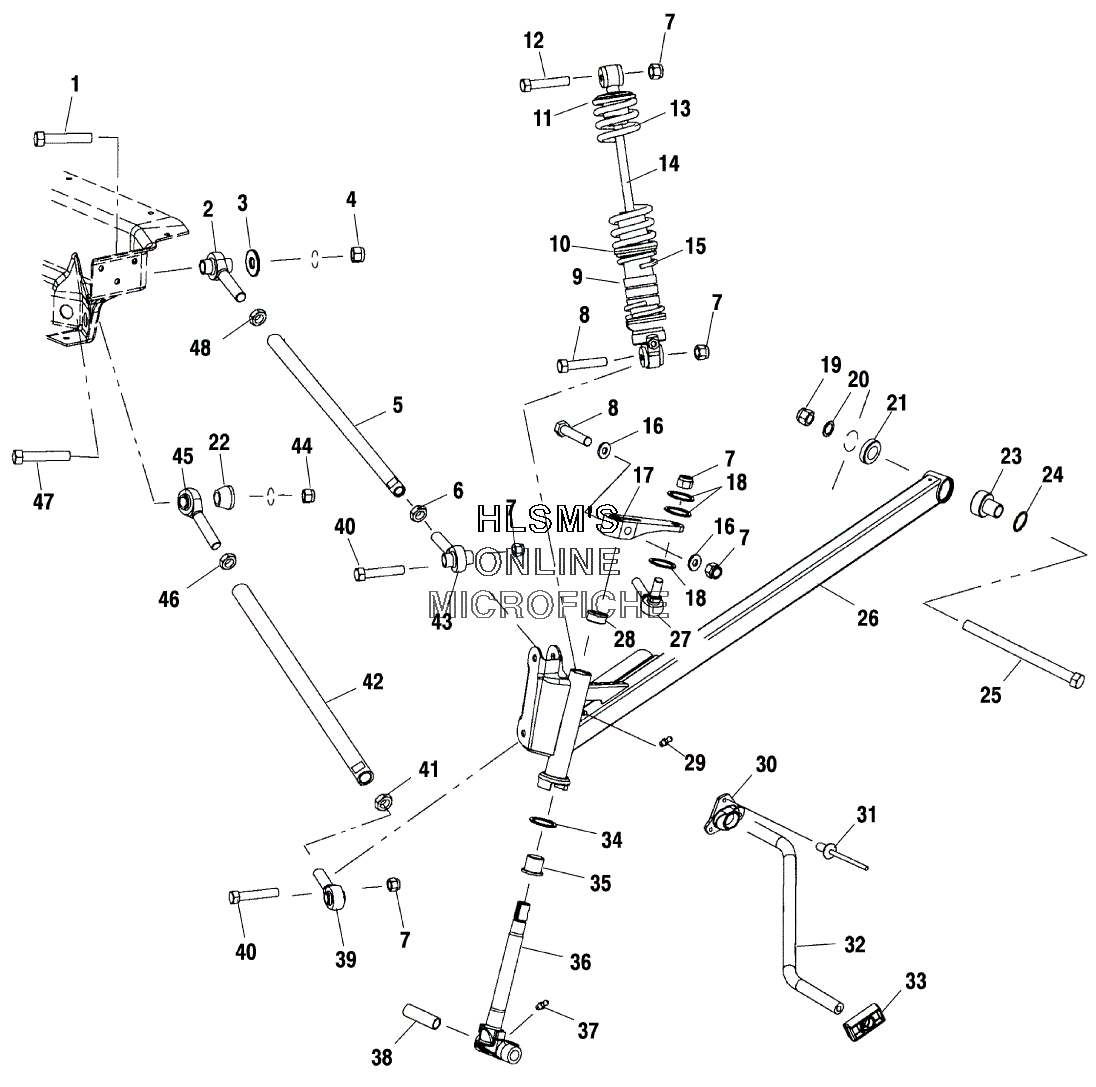

SUSPENSION - FRONT для Polaris XCF EDGE (S00NX4FS) - 2000 года выпуска
-
№АртикулНазвание
-
17512597 BOLTBOLT
-
27061067 ROD, END RADIUS (7/16) (LEFT)ROD, END RADIUS (7/16) (LEFT)
-
37555852 WASHER, FLATWASHER, FLAT
-
47542503 NUT, LOCKNUT, LOCK
-
55333867-293 TUBE, RADIUS ROD (UPPER/RED)TUBE, RADIUS ROD (UPPER/RED)
-
67542520 NUT JAMNUT JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
95131741 SPACER, SPRING COLLARSPACER, SPRING COLLAR
-
105131742 SPACER, SPRINGSPACER, SPRING
-
115020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
127515415 BOLTBOLT
-
137041821-067 SPRG, COMP (4''X160LB/IN) (BLACK)SPRG, COMP (4''X160LB/IN) (BLACK)
-
147041838 SHOCK-GAS, IFS, IFP (11.02X16)SHOCK-GAS, IFS, IFP (11.02X16)
-
157041701-067 SPRNG, CMP (.295X9.0) (120#) (BLACK)SPRNG, CMP (.295X9.0) (120#) (BLACK)
-
167555832 WASHERWASHER
-
175132427 ARM, STEERINGARM, STEERING
-
187555797 WASHERWASHER
-
197547066 NUT, NYLOKNUT, NYLOK
-
207555820 WASHERWASHER
-
215132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
225132454 BUSHING, SPACERBUSHING, SPACER
-
237061042 BEARING, SPHERICAL PLASTIC (7/16)BEARING, SPHERICAL PLASTIC (7/16)
-
247710437 RING, RETAININGRING, RETAINING
-
257512099 BOLTBOLT
-
261820940-293 TRAILING ARM (LEFT/RED) (INCL. 23, 24)TRAILING ARM (LEFT/RED) (INCL. 23, 24)
-
261820941-293 TRAILING ARM (RIGHT/RED) (INCL. 23, 24)TRAILING ARM (RIGHT/RED) (INCL. 23, 24)
-
277061068 ROD END (3/8, PL) (1.00) (RIGHT)ROD END (3/8, PL) (1.00) (RIGHT)
-
283573909 BUSHING, FLANGEBUSHING, FLANGE
-
297080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
305433234 BUSHING, TORSION BARBUSHING, TORSION BAR
-
317621477 RIVET,RIVET,
-
325244415-067 BAR, TORSION (1/2) (42.5 EDGE) (BLACK)BAR, TORSION (1/2) (42.5 EDGE) (BLACK)
-
335433329 SLIDE, TORSION BARSLIDE, TORSION BAR
-
347556509 WASHER, SPECIALWASHER, SPECIAL
-
353574208 BUSHING, SPINDLE HOUSING,BUSHING, SPINDLE HOUSING,
-
366230160-067 SHAFT, SPINDLE HARDENED (BLACK)SHAFT, SPINDLE HARDENED (BLACK)
-
377080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
385010158 BUSHING, PIVOTBUSHING, PIVOT
-
397061059 ROD, END RADIUS (RIGHT) (1/2)ROD, END RADIUS (RIGHT) (1/2)
-
407517583 SCREWSCREW
-
417542711 NUT, JAMNUT, JAM
-
425333868-293 TUBE, RADIUS ROD (LOWER/RED)TUBE, RADIUS ROD (LOWER/RED)
-
437061058 ROD, END RADIUS (7/16) (RIGHT)ROD, END RADIUS (7/16) (RIGHT)
-
447542703 NUT FLEXNUT FLEX
-
457061066 ROD, END-RADIUS (1/2) (LEFT)ROD, END-RADIUS (1/2) (LEFT)
-
467547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
477512684 BOLTBOLT
-
487547117 NUTNUT
