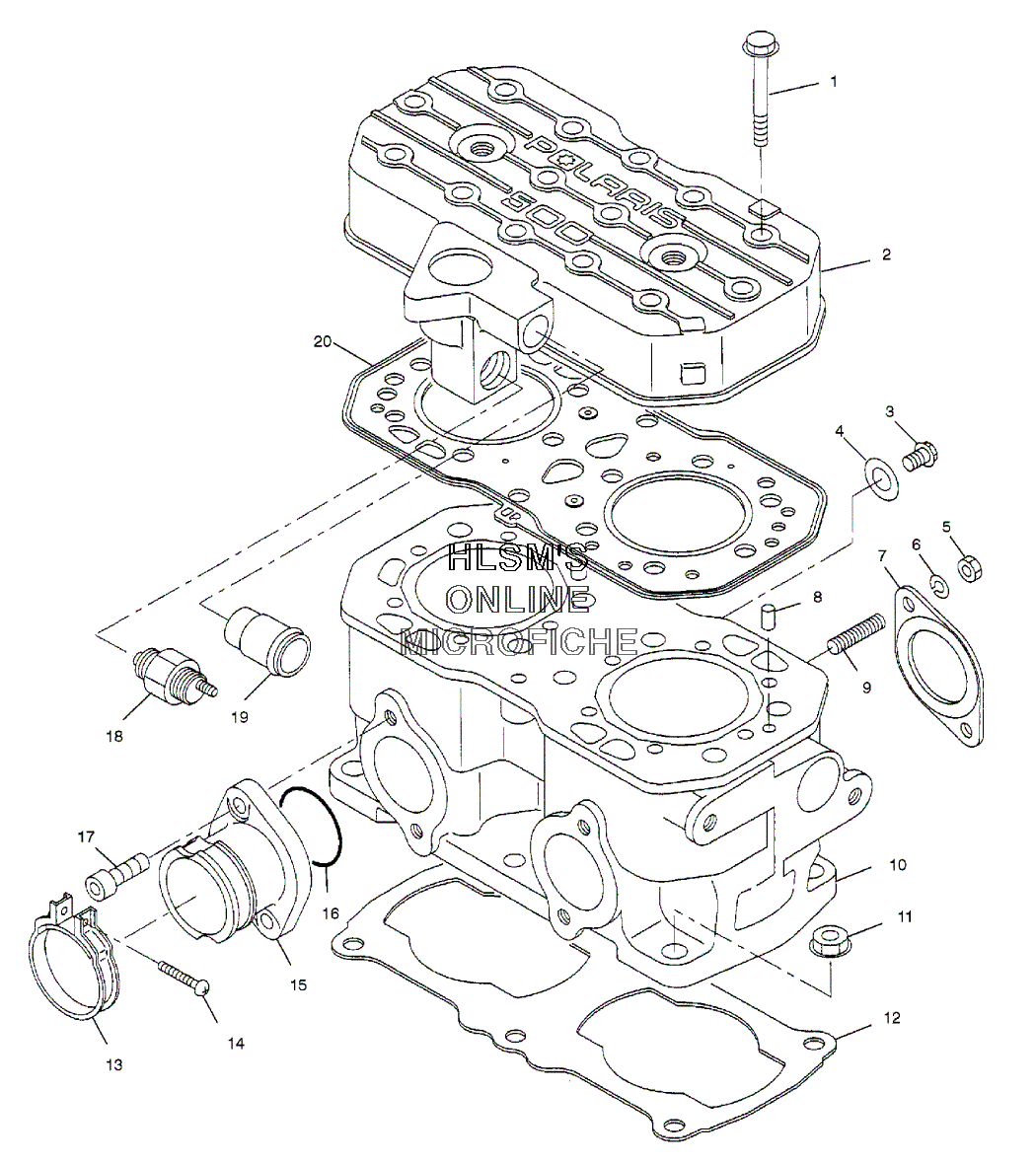

CYLINDER ASSEMBLY для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска
-
№АртикулНазвание
-
13085582 BOLT, FLANGEBOLT, FLANGE
-
23085584 HEAD, CYLINDER (INCL. 19)HEAD, CYLINDER (INCL. 19)
-
33084491 PLUGPLUG
-
43084492 GASKET, ALUMINUMGASKET, ALUMINUM
-
53080285 NUTNUT
-
63080530 WASHER, LOCKWASHER, LOCK
-
73086995 GASKET, EXHAUSTGASKET, EXHAUST
-
83080103 PIN, DOWELPIN, DOWEL
-
93085326 STUDSTUD
-
103086993 CYLINDER (INCL. 9)CYLINDER (INCL. 9)
-
113082911 NUT, FLANGENUT, FLANGE
-
123084768 GASKET, BASEGASKET, BASE
-
133083166 BAND ASSY. (INCL. 14)BAND ASSY. (INCL. 14)
-
143081497 SCREWSCREW
-
153086994 ADAPTER (INCL. 16)ADAPTER (INCL. 16)
-
163086996 O-RINGO-RING
-
173081330 BOLT, ALLENBOLT, ALLEN
-
183083055 SWITCH, THERMAL (93 DEGREES C.)SWITCH, THERMAL (93 DEGREES C.)
-
193083452 PIPE, WATERPIPE, WATER
-
203085585 GASKET 2, HEADGASKET 2, HEAD
