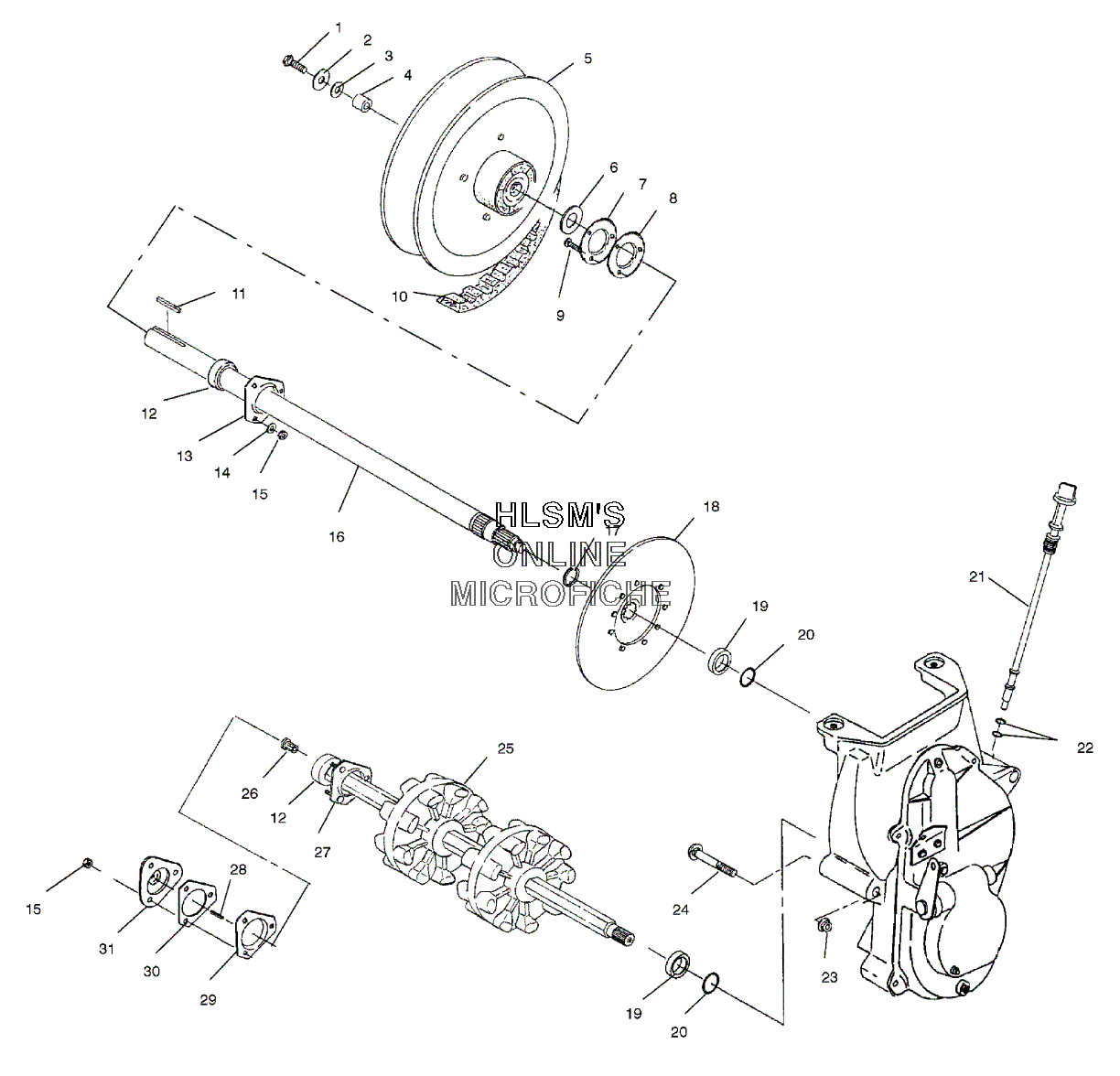

DRIVE TRAIN ASSEMBLY W/ TRACK для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17517820 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHERWASHER
-
45020291 SPACERSPACER
-
67556509 WASHER, SPECIALWASHER, SPECIAL
-
75241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
77080561 FITTING, LUB/VENFITTING, LUB/VEN
-
85811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
97512377 BOLTBOLT
-
103211070 BELT, DRIVE (28 DEGREE)BELT, DRIVE (28 DEGREE)
-
117721128 KEYKEY
-
123514525 BEARINGBEARING
-
135222751 FLANGETTEFLANGETTE
-
147558402 WASHER, STEELWASHER, STEEL
-
157542324 NUTNUT
-
161332207 JACKSHAFT ASSY., 15 SPLINE (INCL. 12, 17)JACKSHAFT ASSY., 15 SPLINE (INCL. 12, 17)
-
177710422 RING, RETAININGRING, RETAINING
-
181910403 BRAKE DISCBRAKE DISC
-
195020588 SLEEVE, SEALSLEEVE, SEAL
-
205410613 O-RINGO-RING
-
211332143 DIPSTICK ASSY.DIPSTICK ASSY.
-
225410675 O-RINGO-RING
-
237542423 NUTNUT
-
247515428 BOLTBOLT
-
251590283 DRIVESHAFT ASSY., 2 DR W/BEARING (INCL. 12, 26, 27)DRIVESHAFT ASSY., 2 DR W/BEARING (INCL. 12, 26, 27)
-
263280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
271012945 FLANGETTE, W/SCREWS ASSY.FLANGETTE, W/SCREWS ASSY.
-
283280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
295243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
