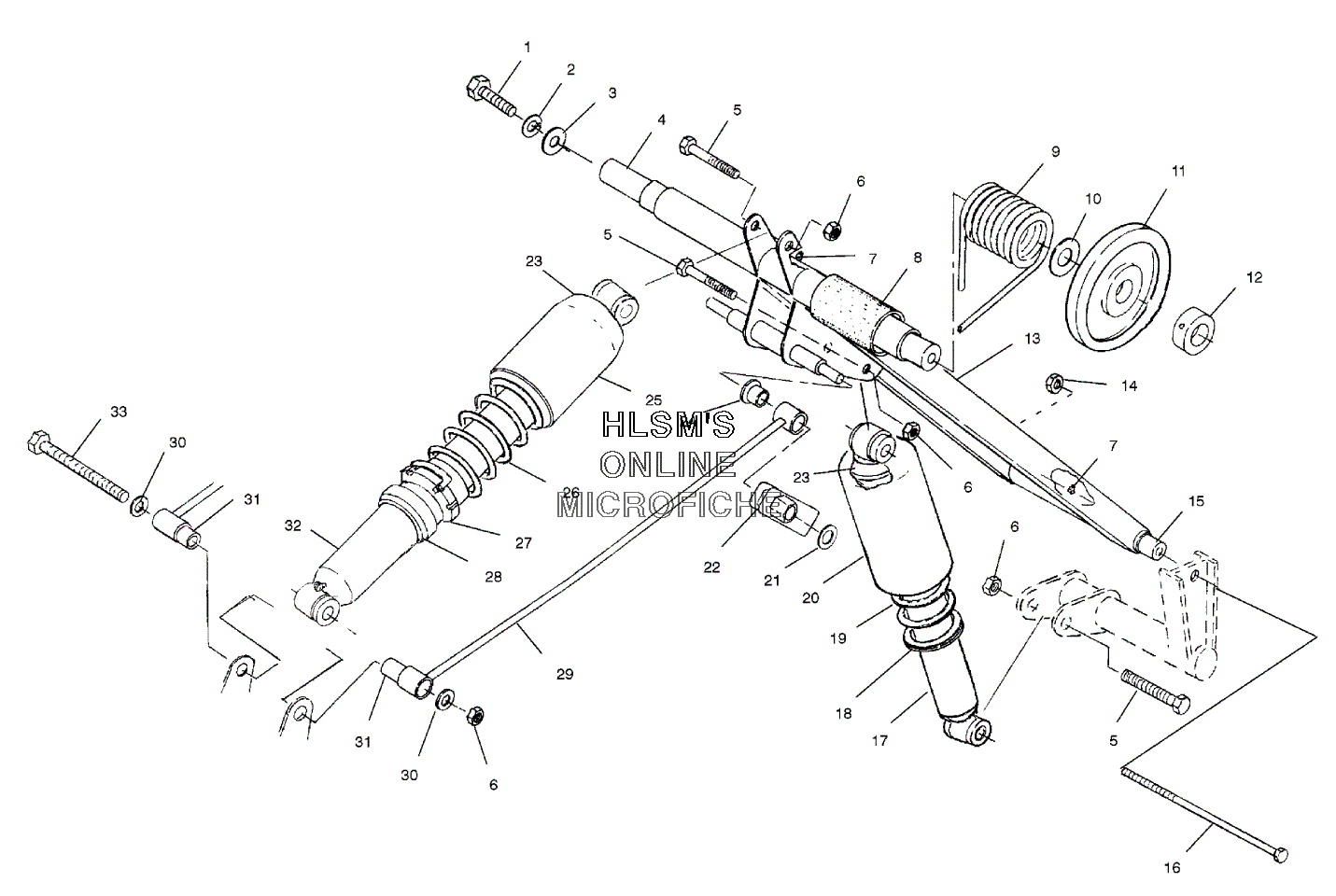

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17517436 SCREWSCREW
-
27552614 WASHER, LOCKWASHER, LOCK
-
37555984 WASHERWASHER
-
45020814 SHAFT, RTA (UPPER)SHAFT, RTA (UPPER)
-
57515424 BOLT, SPECIALBOLT, SPECIAL
-
67542411 NUT, LOCKNUT, LOCK
-
77080424 FITTING, LUBEFITTING, LUBE
-
85431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
97041394-067 SPRING, TORSION (LEFT/BLACK) (STD) (.406/55)SPRING, TORSION (LEFT/BLACK) (STD) (.406/55)
-
97041395-067 SPRING, TORSION (RIGHT/BLACK) (STD) (.406/55)SPRING, TORSION (RIGHT/BLACK) (STD) (.406/55)
-
97041406-067 SPRING, TORSION (LEFT/BLACK) (.421) (OPT)SPRING, TORSION (LEFT/BLACK) (.421) (OPT)
-
97041407-067 SPRING, TORSION (RIGHT/BLACK) (.421) (OPT)SPRING, TORSION (RIGHT/BLACK) (.421) (OPT)
-
107555871 WASHER, REVERSEWASHER, REVERSE
-
111543023 WHEEL, CARRIERWHEEL, CARRIER
-
113514303 BEARINGBEARING
-
117718407 RING, RETAININGRING, RETAINING
-
125010404 COLLAR, BEARING LOCKCOLLAR, BEARING LOCK
-
127512257 SCREW SETSCREW SET
-
131541029-067 ARM, REAR TORQUE (XTRA 12) (BLACK)ARM, REAR TORQUE (XTRA 12) (BLACK)
-
147542507 NUT, FLEX LOCNUT, FLEX LOC
-
155020898 SHAFTSHAFT
-
167517248 SCREWSCREW
-
177041587 SHOCK, REAR TRACK (X12)SHOCK, REAR TRACK (X12)
-
185245067 RETAINER, SPRING GAB PLATEDRETAINER, SPRING GAB PLATED
-
197041561-067 SPRING, COMPRESSION (BLACK)SPRING, COMPRESSION (BLACK)
-
205430671 SHIELD, SPRINGSHIELD, SPRING
-
217080394 CLIPCLIP
-
225431909 ROLLER, SPRING ADJUSTROLLER, SPRING ADJUST
-
235020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
243573910 BUSHING, NYLONBUSHING, NYLON
-
255410874 SHIELD, SPRINGSHIELD, SPRING
-
267041351-067 SPRING, REAR SUSPENSION (BLACK)SPRING, REAR SUSPENSION (BLACK)
-
275431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
281500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
291541014-067 ROD, SHOCKROD, SHOCK
-
307555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
315333028 SPACERSPACER
-
327041586 SHOCK, FRONT TRACK ADJUST (X12)SHOCK, FRONT TRACK ADJUST (X12)
-
337517378 SCREWSCREW
