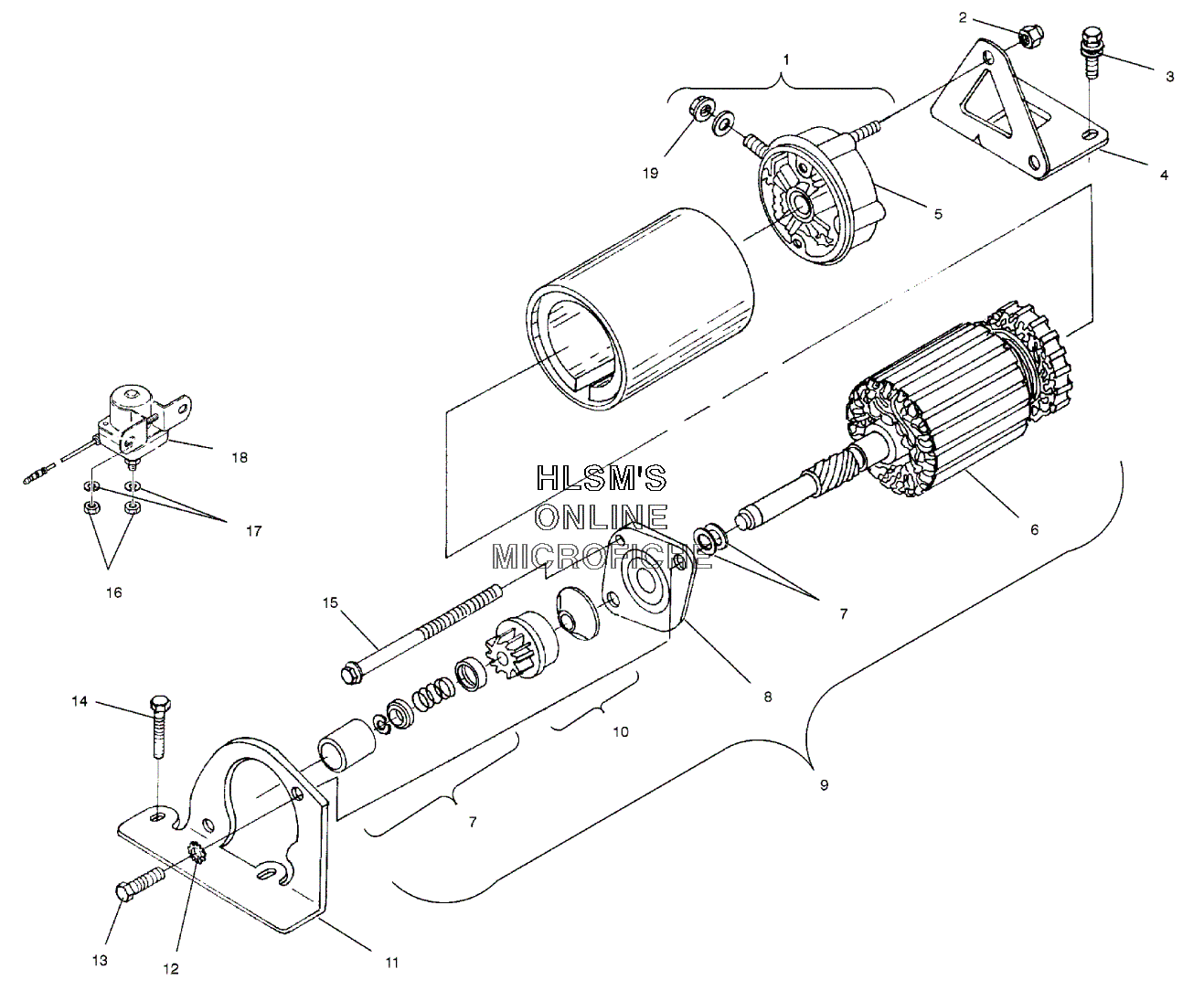

STARTING MOTOR для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска
-
№АртикулНазвание
-
12200758 COMMUTATOR CAP ASSY. (INCL. 5)COMMUTATOR CAP ASSY. (INCL. 5)
-
27542153 NUTNUT
-
37516815 SCREWSCREW
-
45240956 BRACKET, REAR STARTERBRACKET, REAR STARTER
-
52200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
62200756 ARMATURE ASSY.ARMATURE ASSY.
-
72200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
82200757 DRIVECAP ASSY.DRIVECAP ASSY.
-
94170006 MOTOR, STARTERMOTOR, STARTER
-
102200754 DRIVE ASSY.DRIVE ASSY.
-
115241271 BRACKET, STARTER (FRONT)BRACKET, STARTER (FRONT)
-
127552603 WASHERWASHER
-
137512492 SCREWSCREW
-
147516730 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
152200753 SCREW KITSCREW KIT
-
163082939 NUTNUT
-
173080077 WASHER SPRINGWASHER SPRING
-
183085521 SWITCH, MAGNETIC (INCL. 16, 17)SWITCH, MAGNETIC (INCL. 16, 17)
-
197542103 NUT, LOCKNUT, LOCK
