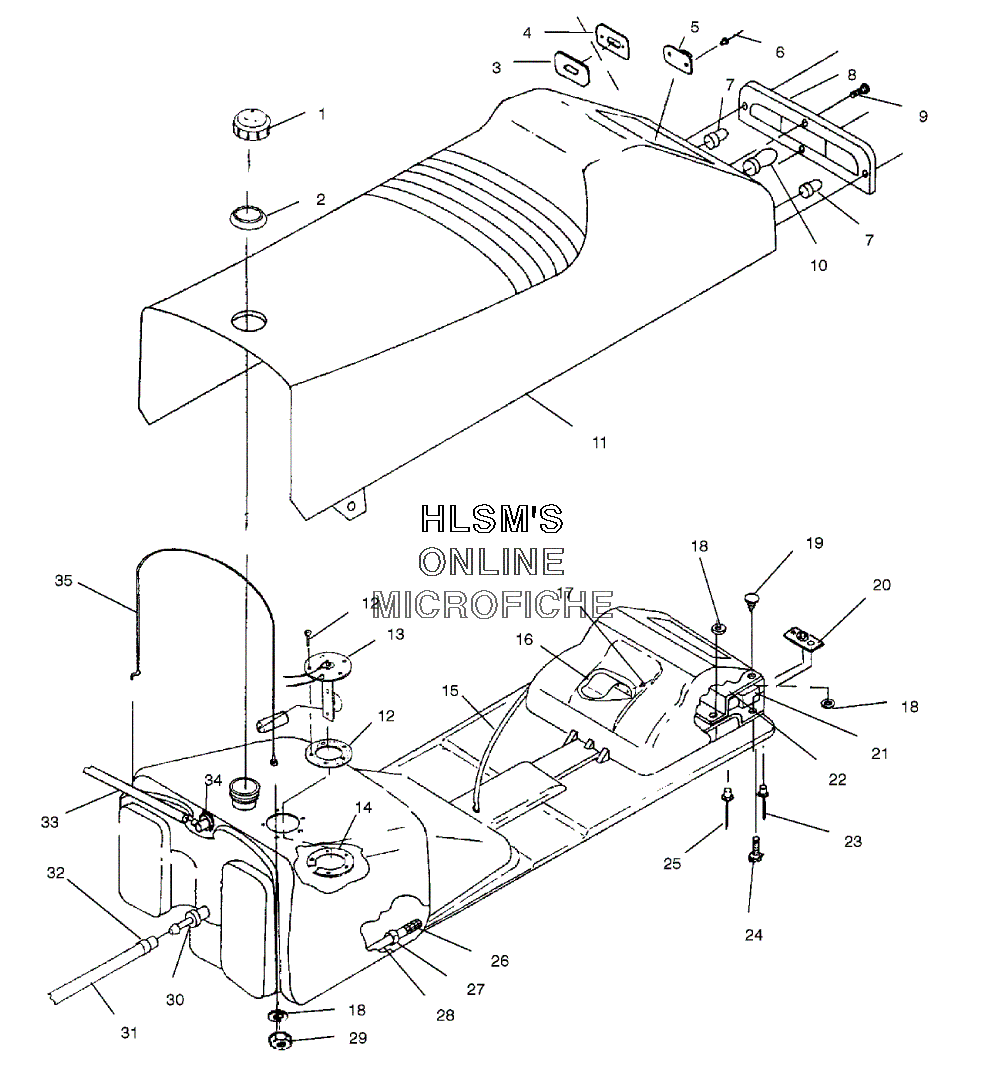

SEAT W/ GAS TANK ASSEMBLY для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска
-
№АртикулНазвание
-
12511226 CAP, FUELTANK W/GASKETCAP, FUELTANK W/GASKET
-
25410842 GROMMET, FUELTANKGROMMET, FUELTANK
-
37080550 GROMMET, RELATCH (1'' BOTTEM)GROMMET, RELATCH (1'' BOTTEM)
-
47080549 GROMMET, RELATCH (1'' TOP)GROMMET, RELATCH (1'' TOP)
-
57080548 TWISTLOCK, RELATCH (1'' W/HOLE)TWISTLOCK, RELATCH (1'' W/HOLE)
-
67621337 RIVETRIVET
-
74030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
85430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
97511840 SCREWSCREW
-
104030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
112682626 SEAT CUSHION, LONG ASSY. (INCL. 3, 10, 12, 30, 32)SEAT CUSHION, LONG ASSY. (INCL. 3, 10, 12, 30, 32)
-
112682625 COVER, LONG ASSY.COVER, LONG ASSY.
-
122410012 HARDWARE, PACKAGE SENDING UNITHARDWARE, PACKAGE SENDING UNIT
-
133280227 SENDER, FUEL LEVEL W/GASKETSENDER, FUEL LEVEL W/GASKET
-
145244067 FLANGE, FUEL TANK MOUNTINGFLANGE, FUEL TANK MOUNTING
-
152460398 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
165243185 RETAINER, CLIP TOOL POUCHRETAINER, CLIP TOOL POUCH
-
177621472 RIVETRIVET
-
187555904 BURR, RIVETBURR, RIVET
-
197670097 CLIP, DARTCLIP, DART
-
207542147 NUT, RETAINERNUT, RETAINER
-
215433341 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
225431436 COVER, TAILLIGHT PROTECTORCOVER, TAILLIGHT PROTECTOR
-
237621301 RIVETRIVET
-
247512242 SCREWSCREW
-
257621464 RIVETRIVET
-
267052301 PICK, UP FUEL W/FILTERPICK, UP FUEL W/FILTER
-
277080402 RING, COMPRESSIONRING, COMPRESSION
-
288350019-160 FUEL LINE, ESTER (OPT)FUEL LINE, ESTER (OPT)
-
297541925 NUTNUT
-
307052023 FITTING , OUTLETFITTING , OUTLET
-
318350018-160 TUBING, ETHER ERETHNE (160CM) (OPT)TUBING, ETHER ERETHNE (160CM) (OPT)
-
327080307 CLAMPCLAMP
-
338450061-600 FUELLINE, (3MMX7MM) (OPT)FUELLINE, (3MMX7MM) (OPT)
-
347052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
357080559 CABLE, TANK RETENTIONCABLE, TANK RETENTION
