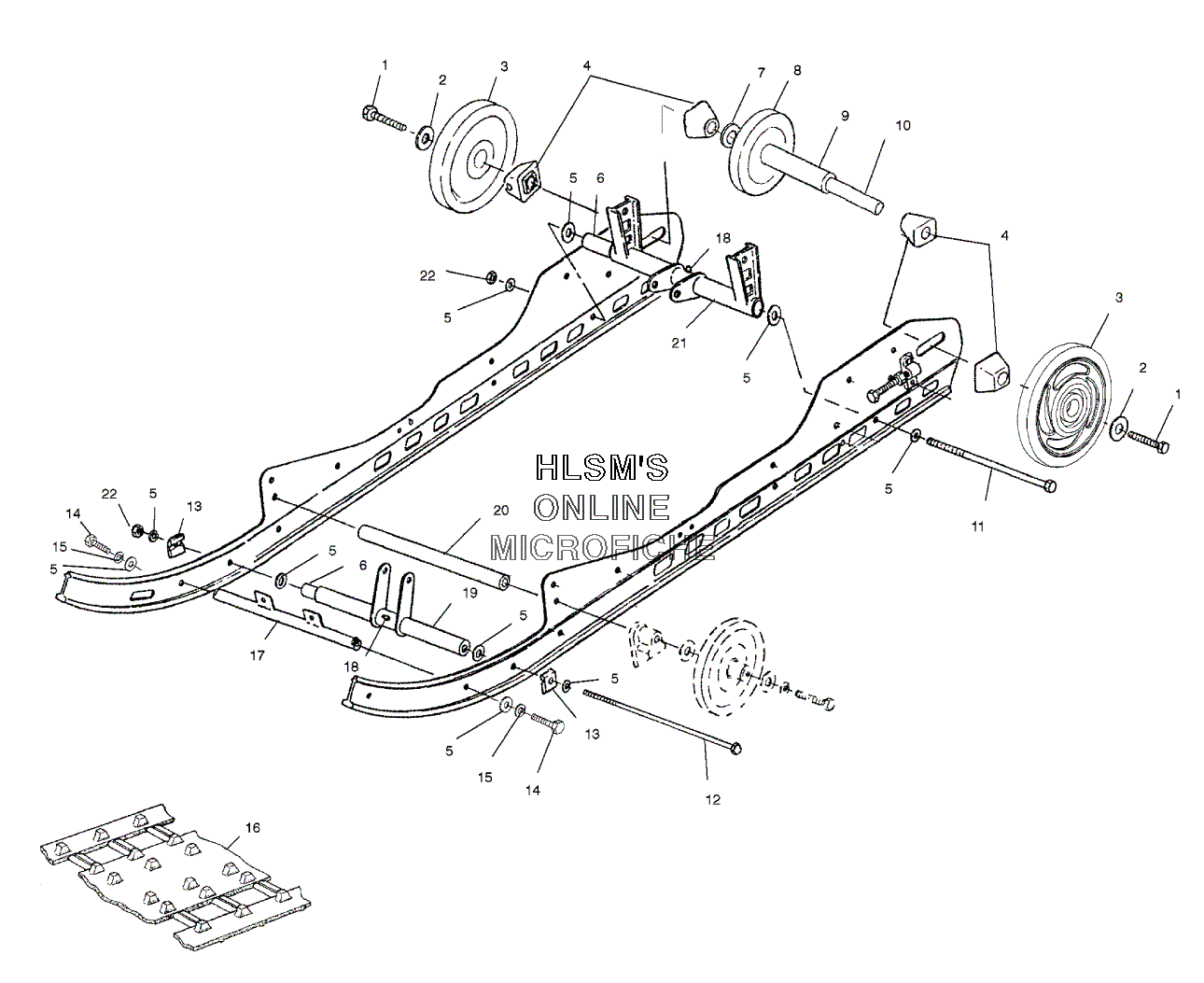

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 500 CLASSIC (S01SD4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17517731 BOLTBOLT
-
27556130 WASHERWASHER
-
31594083-312 WHEEL, SCROLL IDLER ASSY. (BLUE)WHEEL, SCROLL IDLER ASSY. (BLUE)
-
33514012 BEARINGBEARING
-
37710444 RING, RETAININGRING, RETAINING
-
45432535 SPACER, IDLERSPACER, IDLER
-
57555893 WASHERWASHER
-
65333404 SHAFTSHAFT
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAIN (6.38 O.D.)WHEEL ASSY., PLAIN (6.38 O.D.)
-
95333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
117517353 SCREWSCREW
-
127517380 SCREWSCREW
-
135131112 BOSS, BOLT HEADBOSS, BOLT HEAD
-
147517247 SCREWSCREW
-
157552603 WASHERWASHER
-
165411057 TRACK (121''X.82 MOD) (LIGHTNING)TRACK (121''X.82 MOD) (LIGHTNING)
-
165222839 CLIP, TRACK (CAMOPLAST) (OPT)CLIP, TRACK (CAMOPLAST) (OPT)
-
165222840 CLIP, GUIDE (CAMOPLAST) (OPT)CLIP, GUIDE (CAMOPLAST) (OPT)
-
171012267-067 SHAFT, LIMITER STRAP (BLACK)SHAFT, LIMITER STRAP (BLACK)
-
187080424 FITTING, LUBEFITTING, LUBE
-
191540968-067 ARM, SHOCK PIVOTARM, SHOCK PIVOT
-
205020649 SHAFT, REAR SHOCK BRACKETSHAFT, REAR SHOCK BRACKET
-
211541141-067 ARM, REAR PIVOT (X12) (BLACK)ARM, REAR PIVOT (X12) (BLACK)
-
227542411 NUT, LOCKNUT, LOCK
