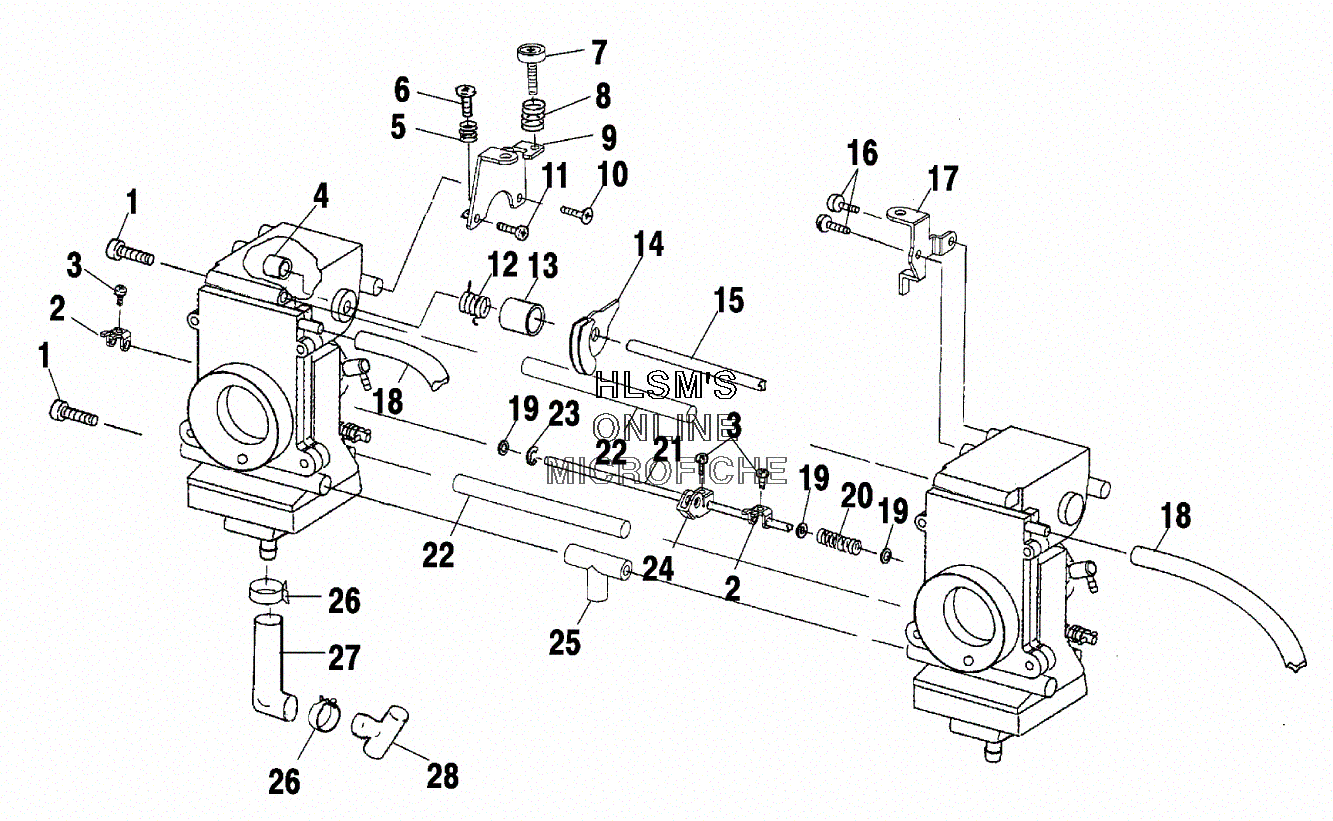

CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска
-
№АртикулНазвание
-
13130834 BOLT, RACKBOLT, RACK
-
23130832 LEVER, STARTERLEVER, STARTER
-
33130833 SCREW, STARTERSCREW, STARTER
-
43140032 RINGRING
-
53130817 SPRINGSPRING
-
63130816 SCREWSCREW
-
73130812 ADJUSTERADJUSTER
-
83130811 SPRINGSPRING
-
93130815 BRACKETBRACKET
-
103130810 SCREWSCREW
-
113130809 SCREWSCREW
-
123130814 SPRINGSPRING
-
133130853 RINGRING
-
143130813 LEVER ASSY.LEVER ASSY.
-
153130827 SHAFTSHAFT
-
163130821 SCREWSCREW
-
173130820 BRACKETBRACKET
-
183130826 HOSEHOSE
-
193130842 PACKING, STARTER SHAFTPACKING, STARTER SHAFT
-
203130841 SPRING, STARTER SHAFTSPRING, STARTER SHAFT
-
213130840 SHAFTSHAFT
-
223130852 RING, RACKRING, RACK
-
233130839 E-RINGE-RING
-
243130819 LEVER, STARTERLEVER, STARTER
-
253130823 NIPPLE ASSY., FUELINLETNIPPLE ASSY., FUELINLET
-
267080534 CLAMP, SPRINGCLAMP, SPRING
-
275412068 HOSE WATER TRAP (5/16) (90 DEG)HOSE WATER TRAP (5/16) (90 DEG)
-
285431893 PLUG, TRAPPLUG, TRAP
