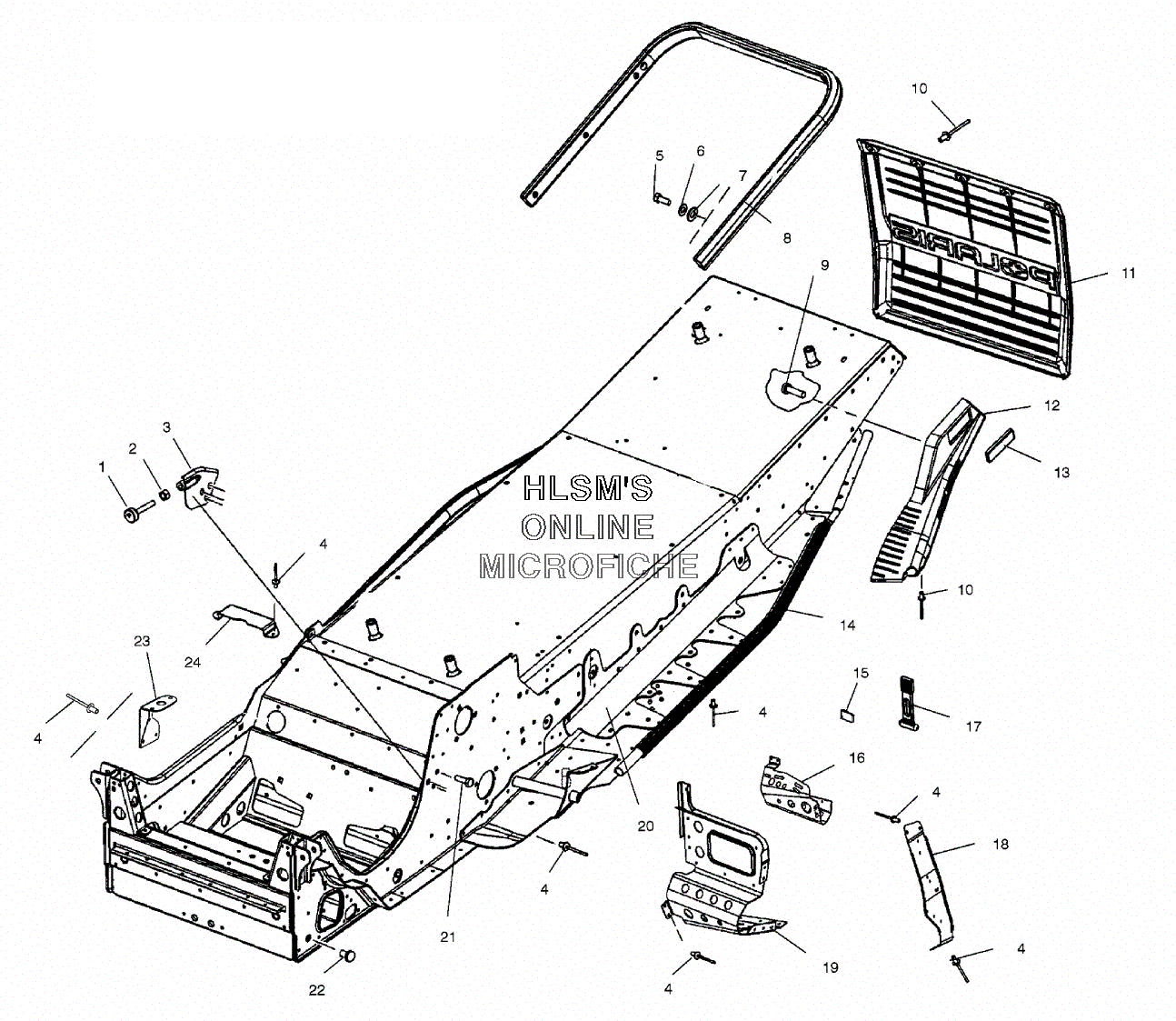

FRAME - CHASSIS для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска
-
№АртикулНазвание
-
1A1013456-1124 CHASSIS ASSY., RACER, NATURAL (YELLOW)CHASSIS ASSY., RACER, NATURAL (YELLOW)
-
13021104 STOP, TORQUE COURSE (3/8 16)STOP, TORQUE COURSE (3/8 16)
-
27542404 NUTNUT
-
31013458 WELD TORQUE STOPWELD TORQUE STOP
-
47661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
57512240 BOLTBOLT
-
67552801 LOCK WASHERLOCK WASHER
-
77558301 WASHERWASHER
-
82632165-216 BUMPER ASSY., SCR (REAR/YELLOW)BUMPER ASSY., SCR (REAR/YELLOW)
-
97517441 SCREWSCREW
-
107621472 RIVETRIVET
-
115433521-1106 FLAP, SNOW, EDGE (BLK W/CHROME)FLAP, SNOW, EDGE (BLK W/CHROME)
-
125433519-070 SKIRT SNOW, EDGE (LEFT/BLK)SKIRT SNOW, EDGE (LEFT/BLK)
-
125433520-070 SNOWSKIRT ASSY., REFLECTOR (RIGHT/BLK)SNOWSKIRT ASSY., REFLECTOR (RIGHT/BLK)
-
132670133 REFLECTOR ASSY., REDREFLECTOR ASSY., RED
-
145132903-216 GRIP TUNNEL, EDGE, SCR (LEFT/YELLOW)GRIP TUNNEL, EDGE, SCR (LEFT/YELLOW)
-
145132904-216 GRIP TUNNEL, EDGE, SCR (RIGHT/YELLOW)GRIP TUNNEL, EDGE, SCR (RIGHT/YELLOW)
-
155521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
165245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
165245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
175433150 STRAP, RUBBERSTRAP, RUBBER
-
185242741 SUPPORT, FOOTREST (LEFT)SUPPORT, FOOTREST (LEFT)
-
185242742 SUPPORT, FOOTREST (RIGHT)SUPPORT, FOOTREST (RIGHT)
-
195245288 FOOTREST (LEFT) (.080)FOOTREST (LEFT) (.080)
-
195242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
205245231-216 BRACE TUNNEL, FISHBONE (LEFT/YELLOW)BRACE TUNNEL, FISHBONE (LEFT/YELLOW)
-
205245232-216 BRACE TUNNEL, FISHBONE (RIGHT/YELLOW)BRACE TUNNEL, FISHBONE (RIGHT/YELLOW)
-
217517632 SCREWSCREW
-
227080416 PLUG, HOLEPLUG, HOLE
-
235245514 BRACKET CHASSIS/TUNED PIPEBRACKET CHASSIS/TUNED PIPE
-
245245398-067 BRACKET AIRBOX MOUNT (BLK)BRACKET AIRBOX MOUNT (BLK)
