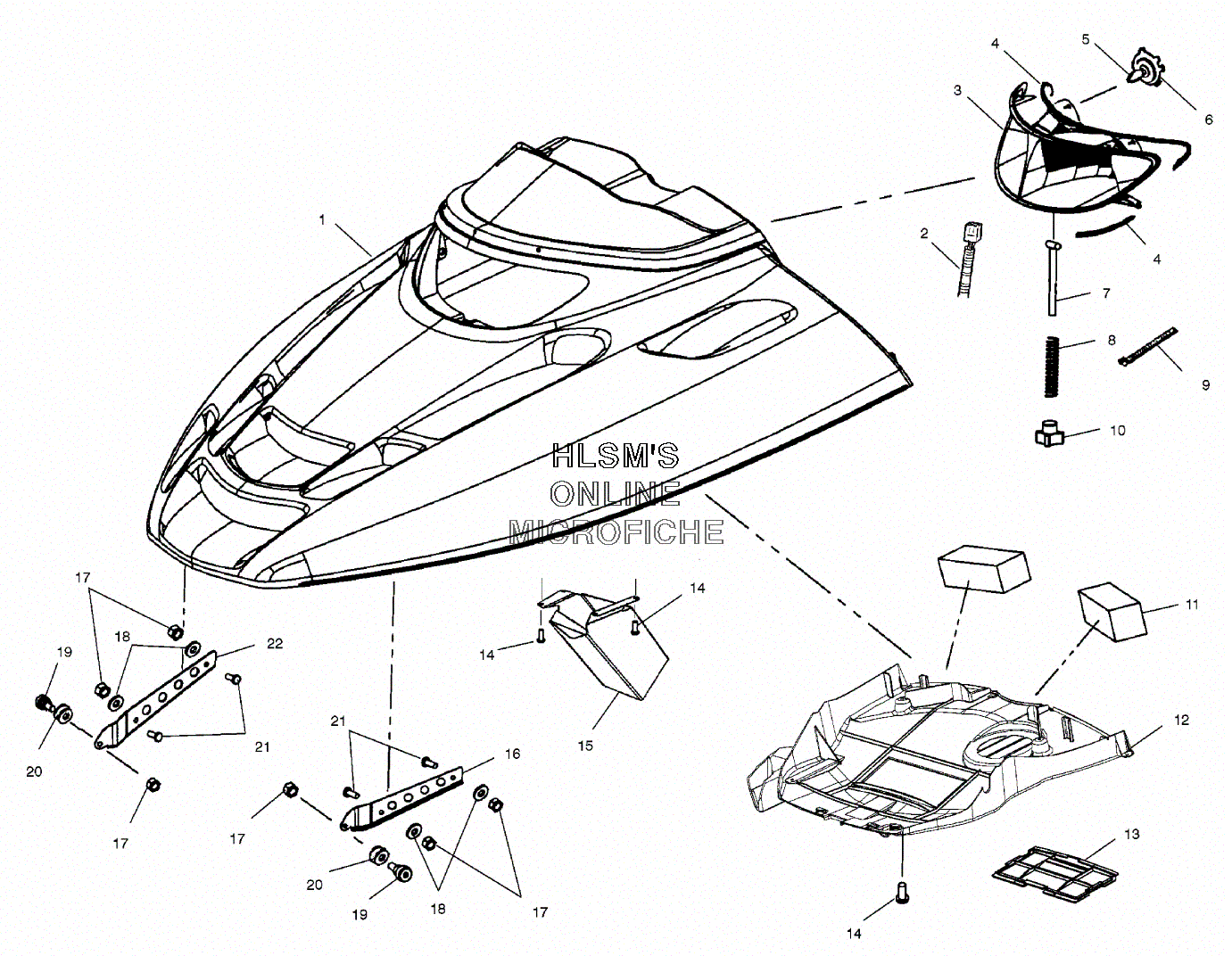

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска
-
№АртикулНазвание
-
12632423-293 HOOD ASSY., 600 PRO X, SVC (RED) (INCL. FOAM AND FOIL)HOOD ASSY., 600 PRO X, SVC (RED) (INCL. FOAM AND FOIL)
-
22460791 HARNESS, HEADLIGHT, EDGE, COMMONHARNESS, HEADLIGHT, EDGE, COMMON
-
32410132 HEADLAMP ASSY., 2 BULB EDGE (INCL. BULBS)HEADLAMP ASSY., 2 BULB EDGE (INCL. BULBS)
-
45812175 FOAM HEADLIGHT SEAL EDGE (TOP)FOAM HEADLIGHT SEAL EDGE (TOP)
-
45812174 FOAM HEADLIGHT SEAL EDGE (BOTTOM)FOAM HEADLIGHT SEAL EDGE (BOTTOM)
-
52870448 BULB, QUARTZ HEADLIGHT, INDYBULB, QUARTZ HEADLIGHT, INDY
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
77517872 BOLT TEE ADJUSTER (2.25)BOLT TEE ADJUSTER (2.25)
-
87041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
97080138 STRAP, PANDUITSTRAP, PANDUIT
-
107080887 KNOB, HEADLIGHT, ADJUST, LOCKINGBKNOB, HEADLIGHT, ADJUST, LOCKINGB
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
125433516 PLENUM, HOOD INTAKEPLENUM, HOOD INTAKE
-
135433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
147512068 SCREWSCREW
-
151013549 DUCT ASSY., AIR BRAKEDUCT ASSY., AIR BRAKE
-
165243567-067 HINGE (UPPER/LEFT/BLK)HINGE (UPPER/LEFT/BLK)
-
177542122 NUT LOCKNUT LOCK
-
187558301 WASHERWASHER
-
197512113 SCREWSCREW
-
205332403 SPACER, HINGESPACER, HINGE
-
217512240 BOLTBOLT
-
225243568-067 HINGE (UPPER/RIGHT/BLK)HINGE (UPPER/RIGHT/BLK)
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- • HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - RYDE FX - FRONT TRACK
- SUSPENSION - RYDE FX - IFS SHOCK
- SUSPENSION - RYDE FX - REAR TRACK SHOCK
- TOOL KIT
- WATER PUMP/OIL PUMP
