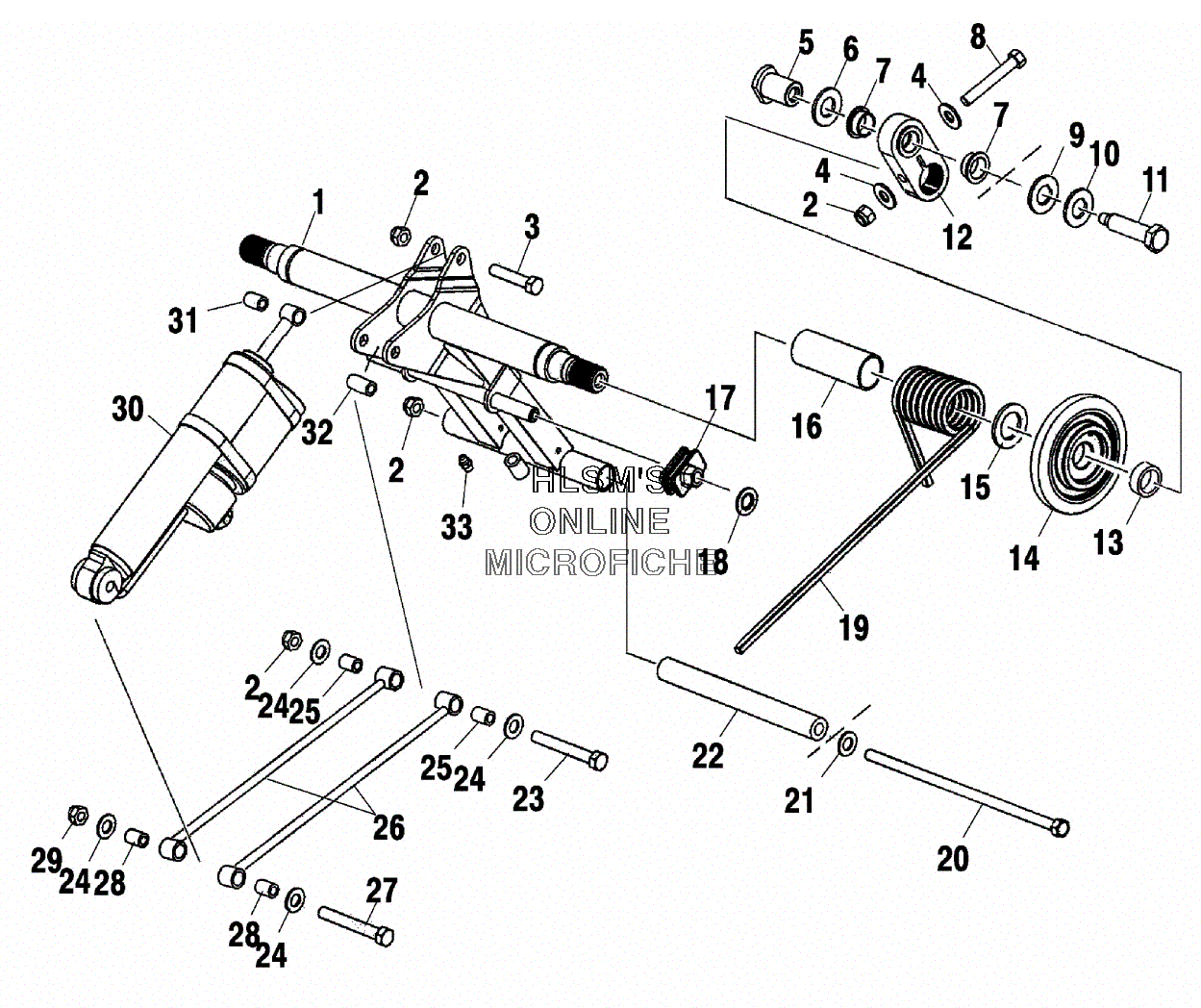

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска
-
№АртикулНазвание
-
11541641-216 WELD REAR TORQUE ARM (YELLOW)WELD REAR TORQUE ARM (YELLOW)
-
27542439 NUT, NYLOKNUT, NYLOK
-
37512410 BOLTBOLT
-
47556188 WASHER, FLATWASHER, FLAT
-
55132972 SHAFT ARM (7/16 14)SHAFT ARM (7/16 14)
-
67555945 WASHERWASHER
-
73514331 BUSHING ARMBUSHING ARM
-
87515415 BOLTBOLT
-
97555984 WASHER ,WASHER ,
-
107552614 WASHER, LOCKWASHER, LOCK
-
117517917 SCREWSCREW
-
121541639 ARM ASSY., RTA, 2.75 (INCL. 7)ARM ASSY., RTA, 2.75 (INCL. 7)
-
135132388 SPACER, WHEELSPACER, WHEEL
-
141590278 WHEEL ASSY., PLAIN (BLK)WHEEL ASSY., PLAIN (BLK)
-
157555787 WASHER, REVERSEWASHER, REVERSE
-
165431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
175432983 ROLLER, SPRING, ADJUSTER SQUARE (XTRA 10)ROLLER, SPRING, ADJUSTER SQUARE (XTRA 10)
-
187080394 CLIPCLIP
-
197041629-067 SPRING, TORSION (LEFT/BLK) (STD)SPRING, TORSION (LEFT/BLK) (STD)
-
197041630-067 SPRING, TORSION (RIGHT/BLK) (STD)SPRING, TORSION (RIGHT/BLK) (STD)
-
197041627-067 SPRING TORSION (LEFT/BLK) (OPT)SPRING TORSION (LEFT/BLK) (OPT)
-
197041628-067 SPRING TORSION (.347/77Ш) (RIGHT/BLK) (OPT)SPRING TORSION (.347/77Ш) (RIGHT/BLK) (OPT)
-
197041631-067 SPRING TORSION (.375/77Ш) (LEFT/BLK) (OPT)SPRING TORSION (.375/77Ш) (LEFT/BLK) (OPT)
-
197041632-067 SPRING TORSION (.375/77Ш) (RIGHT/BLK) (OPT)SPRING TORSION (.375/77Ш) (RIGHT/BLK) (OPT)
-
197041655-067 SPRNG TORSION (LEFT/BLK) (OPT)SPRNG TORSION (LEFT/BLK) (OPT)
-
197041656-067 SPRNG TORSION (RIGHT/BLK) (OPT)SPRNG TORSION (RIGHT/BLK) (OPT)
-
207517232 SCREWSCREW
-
217555806 WASHERWASHER
-
225334025 SHAFT .ANODIZE (740X.390X7.055)SHAFT .ANODIZE (740X.390X7.055)
-
237515514 BOLTBOLT
-
247555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
255132391 BUSHING (.378X.616X1.12)BUSHING (.378X.616X1.12)
-
261541626-067 WELD SHOCK ROD (BLK)WELD SHOCK ROD (BLK)
-
277515538 BOLTBOLT
-
285132974 BUSHING (.378X.616X.873)BUSHING (.378X.616X.873)
-
297542411 NUT LOCKNUT LOCK
-
307041974 SHOCK, TRACK, ARVIN (REAR)SHOCK, TRACK, ARVIN (REAR)
-
315010422 BUSHINGBUSHING
-
325333904 SPACER (.397X.562X1.250)SPACER (.397X.562X1.250)
-
337080424 FITTING, LUBEFITTING, LUBE
