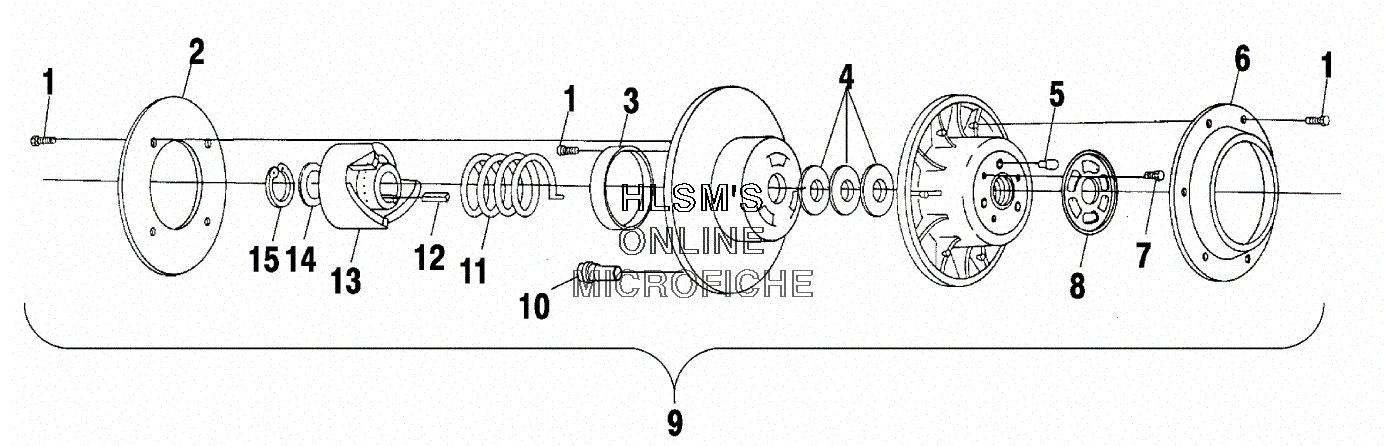

CLUTCH - DRIVEN для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска
-
№АртикулНазвание
-
17512048 SCREWSCREW
-
25243158 PLATE DRIVEN, VENTEDPLATE DRIVEN, VENTED
-
33569803 BUSHING, D.U.BUSHING, D.U.
-
47556804 WASHER (.03)WASHER (.03)
-
47555898 WASHER (.02)WASHER (.02)
-
47556076 WASHER (.025)WASHER (.025)
-
47555865 WASHER, DRIVE CLUTCH (.075)WASHER, DRIVE CLUTCH (.075)
-
55020653 PIN, CLUTCHPIN, CLUTCH
-
65243157 CAP DRIVEN, VENTEDCAP DRIVEN, VENTED
-
77515133 SCREWSCREW
-
85222878 CAM, DRIVEN, ADJUSTABLECAM, DRIVEN, ADJUSTABLE
-
91321927 DRIVEN CLUTCH ASSY., BASIC W/B (INCL. 1, 3, 4, 5, 7, 8, 10, 12, 13, 14, 15)DRIVEN CLUTCH ASSY., BASIC W/B (INCL. 1, 3, 4, 5, 7, 8, 10, 12, 13, 14, 15)
-
105430466 BUTTON RAMPBUTTON RAMP
-
117041646 SPRING, CLUTCH, SVR/BLUESPRING, CLUTCH, SVR/BLUE
-
127721103 KEY SQUAREKEY SQUARE
-
135131297 RAMP, DRIVEN, MACH (R11)RAMP, DRIVEN, MACH (R11)
-
147556804 WASHERWASHER
-
157714804 RING, RETAININGRING, RETAINING
