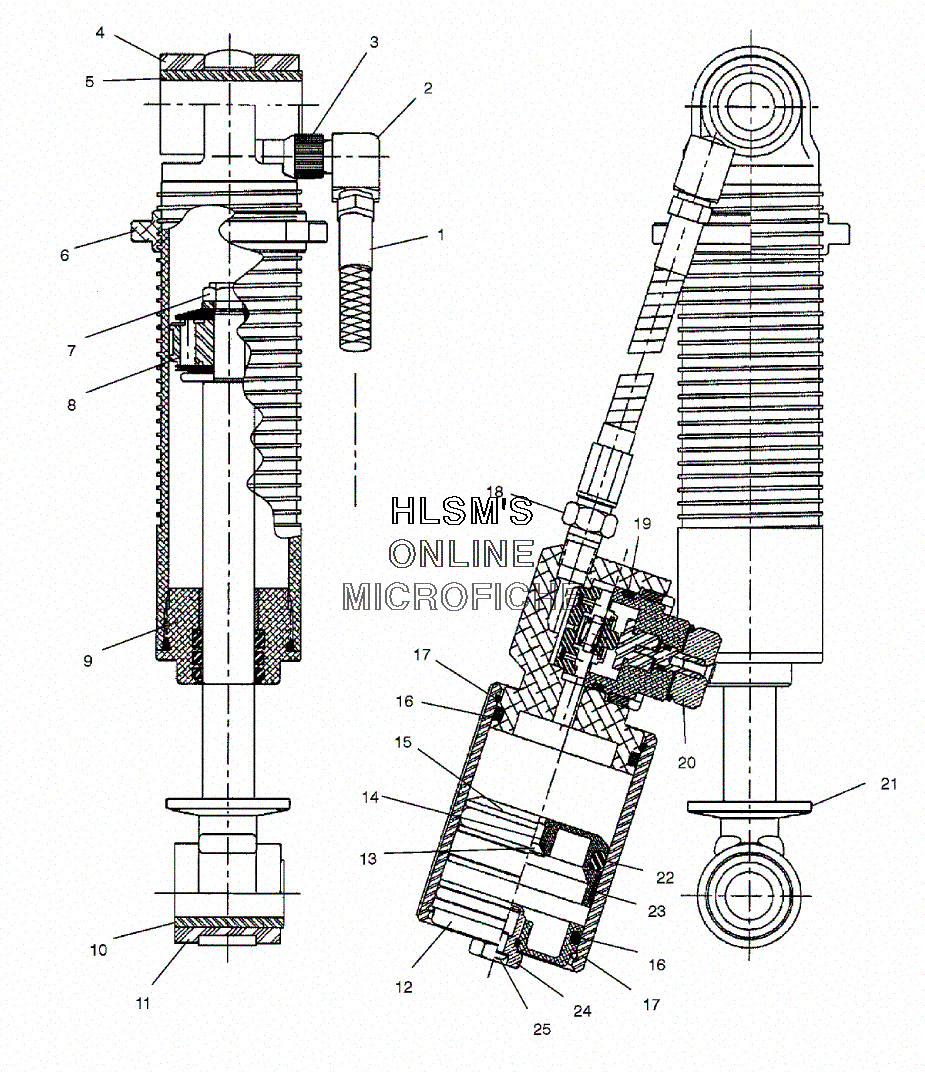

SUSPENSION - RYDE FX - FRONT TRACK для Polaris 600 PRO X (S01NX6ES) - 2001 года выпуска
-
№АртикулНазвание
-
1A7041973 SHOCK FRONT TRACK, ARVINSHOCK FRONT TRACK, ARVIN
-
11700061 BRAIDED HOSE(24'')BRAIDED HOSE(24'')
-
21700062 ELBOW (90 DEG)ELBOW (90 DEG)
-
31700035 ADAPTERADAPTER
-
41700074 BUSHINGBUSHING
-
51700040 SLEEVESLEEVE
-
61700030 SPRING RET NUTSPRING RET NUT
-
71700057 NUTNUT
-
81700103 BANDED PISTON .070'' ORIFCEBANDED PISTON .070'' ORIFCE
-
81700031 PISTON WEAR BANDPISTON WEAR BAND
-
81700077 TOP OUT WASHERTOP OUT WASHER
-
81700078 BACK UP WASHERBACK UP WASHER
-
91700008 CYLINDER HEAD ASSY. (5/8'' ROD)CYLINDER HEAD ASSY. (5/8'' ROD)
-
91700051 CYLINDER HEAD, O-RINGCYLINDER HEAD, O-RING
-
91700019 ROD SCRAPERROD SCRAPER
-
91700046 CYLINDER HEAD, O-RINGCYLINDER HEAD, O-RING
-
91700020 ROD SEALROD SEAL
-
101700041 SLEEVE (.57''IDX.80''ODX1.20)SLEEVE (.57''IDX.80''ODX1.20)
-
111700075 BUSHINGBUSHING
-
121700058 ENDCAPENDCAP
-
131700054 IFP BLEED SCREWIFP BLEED SCREW
-
141700016 BLEED SCREW, O-RINGBLEED SCREW, O-RING
-
151700017 IFPIFP
-
161700044 ENDCAP O-RINGENDCAP O-RING
-
171700059 CIRCLIPCIRCLIP
-
181700065 MALE ADAPTER (37 DEG)MALE ADAPTER (37 DEG)
-
191700188 O-RINGO-RING
-
201700013 CLICKER ASSY.CLICKER ASSY.
-
211700004 MOUNT (UPPER)MOUNT (UPPER)
-
221700043 IFP, O-RINGIFP, O-RING
-
231700018 IFP WEAR BAND (RES)IFP WEAR BAND (RES)
-
241700053 PRESS VALVE ASSY.PRESS VALVE ASSY.
-
241700045 PRESS VALVE O-RINGPRESS VALVE O-RING
-
251700055 VALVE SCREWVALVE SCREW
