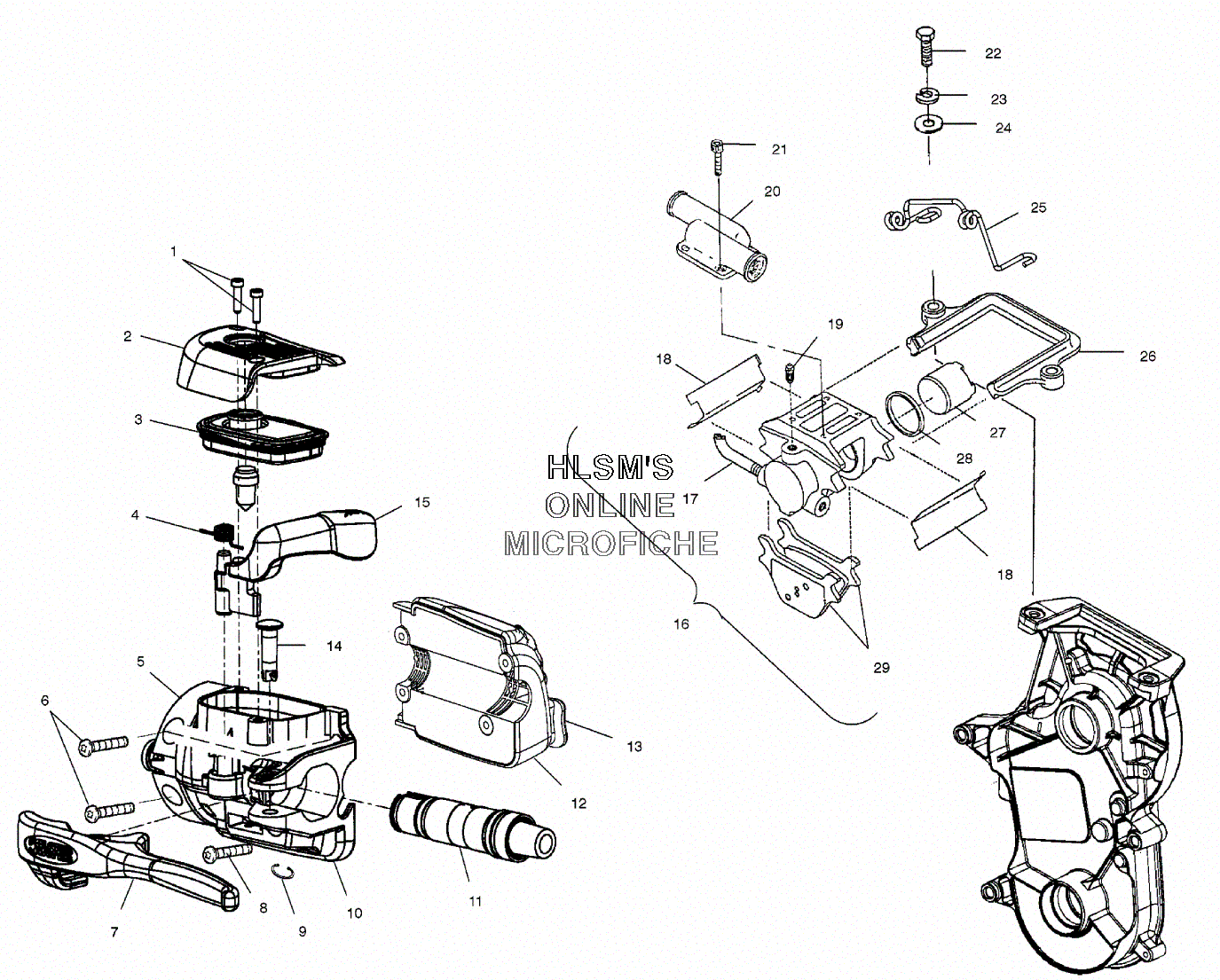

BRAKE ASSEMBLY для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW, KIT, (HAYES)COVER SCREW, KIT, (HAYES)
-
22201255 COVER ASSY., (HAYES) (INCL. 1, 3)COVER ASSY., (HAYES) (INCL. 1, 3)
-
42201250 PARKLEVER SPRING KITPARKLEVER SPRING KIT
-
52202146 MASTER CYLINDER ASSY., (HAYES) (INCL. 2, 4, 7, 10, 11, 14)MASTER CYLINDER ASSY., (HAYES) (INCL. 2, 4, 7, 10, 11, 14)
-
67517441 SCREWSCREW
-
72201943 LEVER, 3 NOTCH/PIN/RING KITLEVER, 3 NOTCH/PIN/RING KIT
-
87517566 SCREWSCREW
-
92201945 SNAP RING KITSNAP RING KIT
-
102202146 MASTER CYLINDER ASSY., (HAYES)MASTER CYLINDER ASSY., (HAYES)
-
104010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
112201944 CARTRIDGE SUB ASSY. (5/8'')CARTRIDGE SUB ASSY. (5/8'')
-
122010167 CONTROL ASSY., (LEFT), (BASIC)CONTROL ASSY., (LEFT), (BASIC)
-
135433291 BUTTON SWITCH HI/LOBUTTON SWITCH HI/LO
-
142201946 PIVOT PIN, ALUM W/SNAP RING KITPIVOT PIN, ALUM W/SNAP RING KIT
-
152201251 PARKLEVER AND SPRING KIT, (INCL. 4)PARKLEVER AND SPRING KIT, (INCL. 4)
-
161910344 BRAKE CALIPER, (HD, LIQ, NOSW) (INCL. 27, 28, 29)BRAKE CALIPER, (HD, LIQ, NOSW) (INCL. 27, 28, 29)
-
171910417 LINE, BRAKE, EDGELINE, BRAKE, EDGE
-
182200467 CLIP SPRING KIT, (QTY. 2)CLIP SPRING KIT, (QTY. 2)
-
191930735 INLET KITINLET KIT
-
201930728 COOLER, WATER, BRAKECOOLER, WATER, BRAKE
-
202201024 GASKET, BRK.COOLERGASKET, BRK.COOLER
-
211930729 PK/4, SCREW SET (PKG. OF 4)PK/4, SCREW SET (PKG. OF 4)
-
227515521 BOLTBOLT
-
237552603 WASHERWASHER
-
247555801 WASHERWASHER
-
255244413 GUIDE, ROPEGUIDE, ROPE
-
261930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
271930734 PISTON SEAL KIT, (INCL. 28)PISTON SEAL KIT, (INCL. 28)
-
282200466 SEALSEAL
-
292201430 BRAKE, PAD KIT, TYPE 81(LARGE) (INCL. 18)BRAKE, PAD KIT, TYPE 81(LARGE) (INCL. 18)
